Description
Product Overview

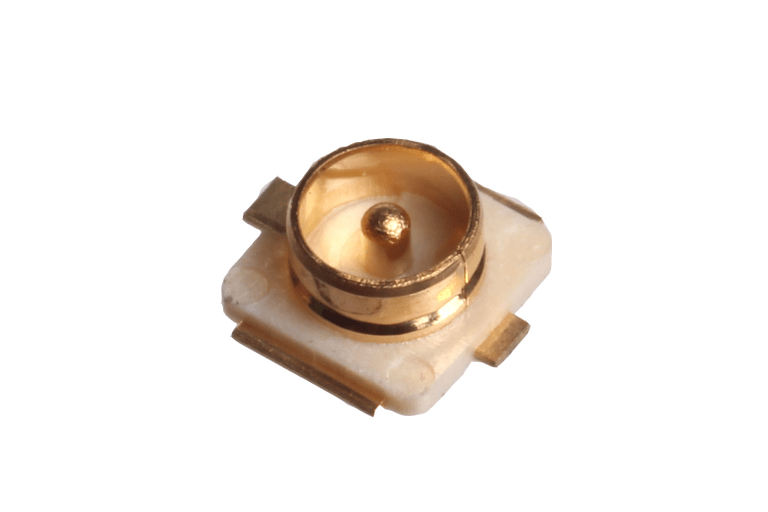

The UFL Connector (also known as UMCC or U.FL) is a compact RF connector designed for high-frequency applications. Ideal for connecting antennas to wireless devices such as GPS, Wi-Fi, and Bluetooth modules, the UFL connector ensures secure and reliable connections in tight spaces.
Specifications
- Connector Type: UFL (U.FL)
- Impedance: 50 Ohms
- Frequency Range: DC to 6 GHz
- Max Voltage Rating: 250 V
- Durability: Up to 30 cycles
- Contact Material: Beryllium copper
- Insulator Material: PTFE (Polytetrafluoroethylene)
- Mounting Style: Surface mount (SMD)
Key Features
- Compact Size: Ideal for space-constrained designs, making it perfect for PCB applications.
- High Performance: Maintains signal integrity and minimizes loss at high frequencies.
- Easy Installation: Designed for easy soldering onto PCBs for a reliable connection.
- Versatile Use: Suitable for various applications, including RF communication, GPS, and telemetry systems.
Applications
- Wireless Communication: Connecting antennas to RF modules in devices such as smartphones, IoT devices, and routers.
- Aerospace and Defense: Used in RF applications in military and aviation technologies.
- Consumer Electronics: Commonly found in laptops, tablets, and other portable electronic devices.
Package Includes
- 10 x UFL Connectors (bulk pack available upon request)
- 1 x Datasheet (with specifications and pinout details)
Installation Notes
- Ensure proper alignment during installation to prevent damage.
- Recommended soldering techniques should be followed to maintain connection integrity.
