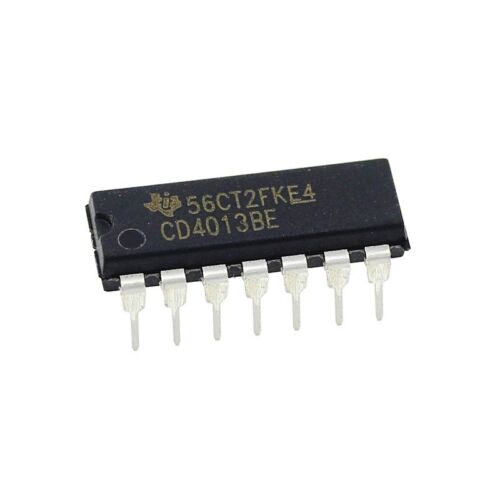

CD4013BD DIP

Overview

Product Overview The CD4013BD is a dual D flip-flop integrated circuit in a dual in-line package (DIP) configuration, designed for use in a variety of digital applications. This CMOS (Complementary Metal-Oxide-Semiconductor) IC is ideal for data storage, shift registers, and control applications, offering low power consumption and high noise immunity. Specifications

• Type: Dual D Flip-Flop IC
• Model: CD4013BD
• Package Type: DIP-14 (Dual In-Line Package)
• Supply Voltage (VDD): 3V to 15V
• Input Voltage (Vih): Minimum 2.25V (for VDD = 5V)
• Output Voltage (Vol): Maximum 0.5V (for VDD = 5V)
• Propagation Delay: 15ns (typical)
• Temperature Range: -55°C to +125°C

Key Features

• Dual Functionality: Contains two independent D flip-flops for versatile applications.
• Low Power Consumption: Designed for energy-efficient operation in battery-powered devices.
• Wide Voltage Range: Operates across a broad voltage range (3V to 15V) for compatibility with various circuits.
• High Noise Immunity: Robust design ensures reliable performance in noisy environments.
• Ease of Use: Standard DIP-14 package makes it easy to integrate into PCBs.

Applications

• Data Storage: Ideal for temporary data storage in digital circuits.
• Shift Registers: Used in shift register applications for serial data communication.
• Control Circuits: Effective for controlling sequential logic in automation systems.
• Frequency Division: Can be employed in frequency division circuits for signal processing.
• Educational Projects: Great for teaching and learning about digital electronics and flip-flop behavior.

Why Choose Our CD4013BD? The CD4013BD offers reliable performance, low power consumption, and dual functionality in a compact DIP package, making it an essential component for various digital electronics projects.
