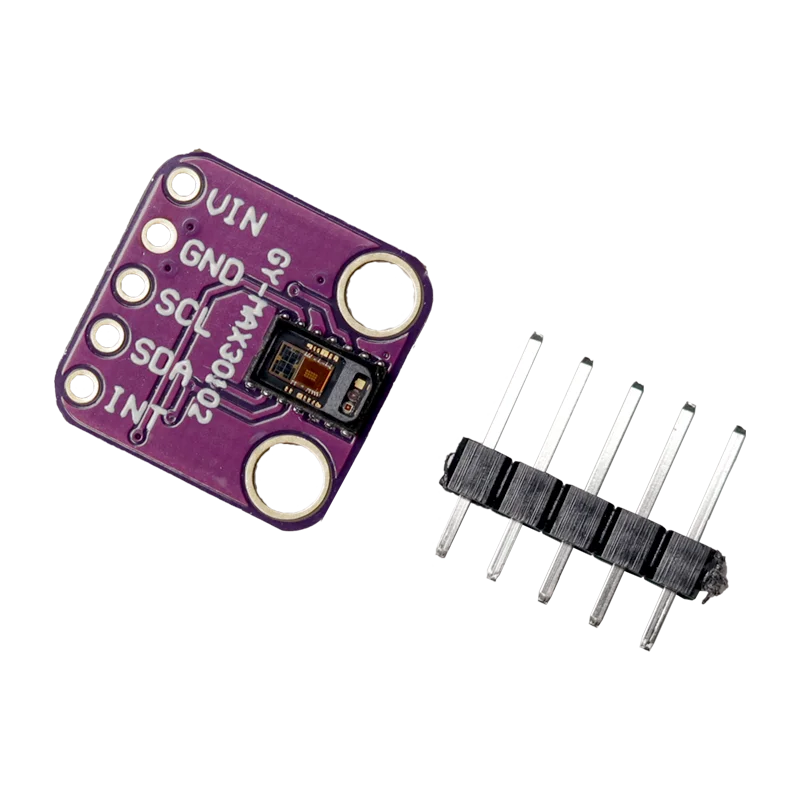

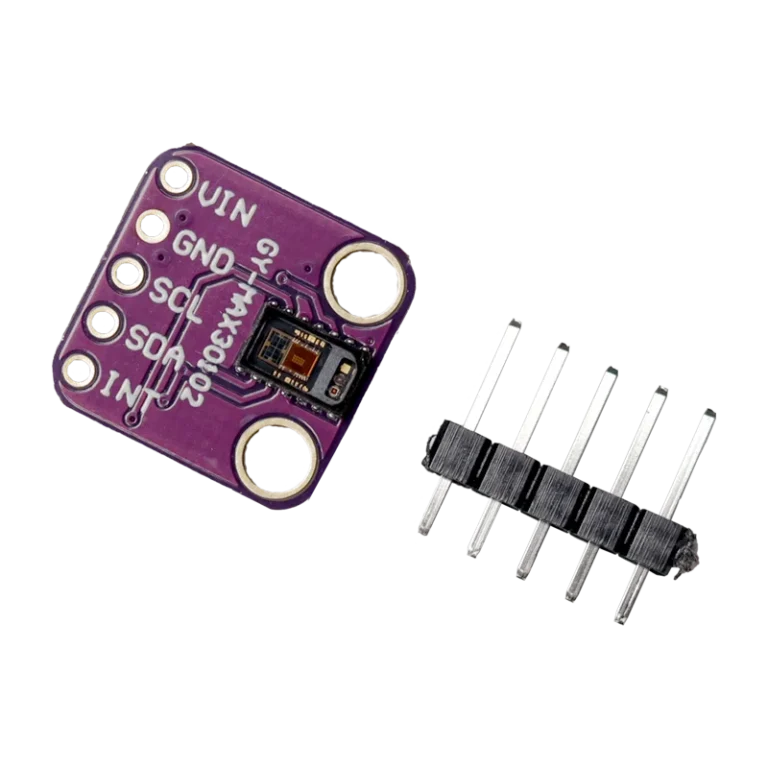

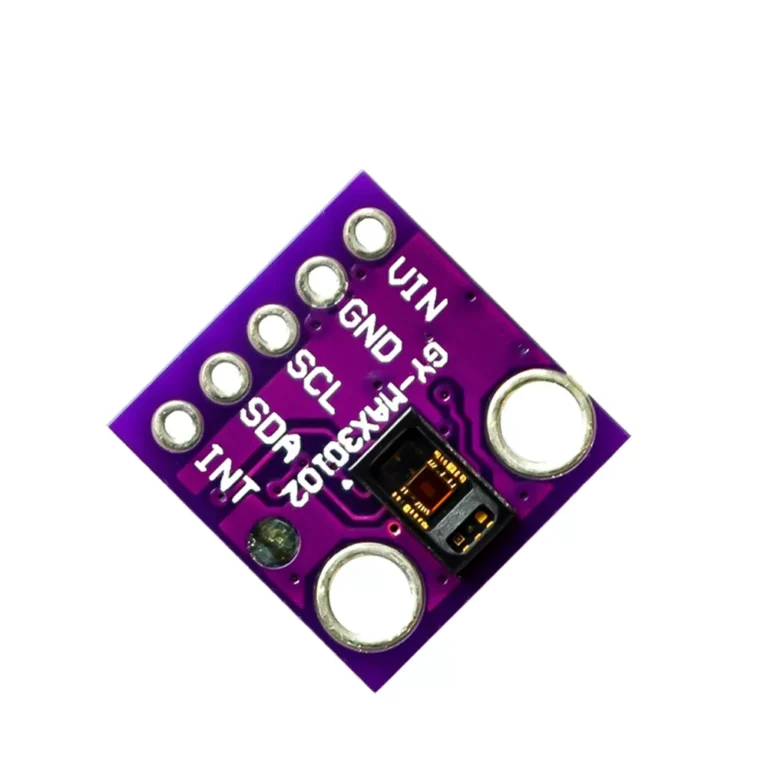

MAX30102 Pulse Sensor For ArduinoMAX30102 Pulse Sensor Module for Arduino – Heart Rate and SpO2 Monitoring
Product Overview: Accurately monitor heart rate and blood oxygen levels with the MAX30102 Pulse Sensor Module, designed for use with Arduino, Raspberry Pi, and other microcontrollers. This compact, high-performance sensor is ideal for health monitoring projects, wearable devices, and fitness trackers. With its integrated LEDs, photodetectors, and optical components, the MAX30102 provides precise and reliable measurements of pulse rate and SpO2 (blood oxygen saturation).
Key Features:
Advanced Bio-Sensing: Measures pulse rate and SpO2 (blood oxygen levels) using advanced optical technology.
Compact Design: Small form factor makes it easy to integrate into wearable devices and portable health monitors.
Low Power Consumption: Optimized for battery-powered applications, ensuring long-term usage in portable devices.
Easy Integration: Compatible with Arduino, ESP8266, ESP32, and other microcontroller platforms with I2C communication interface.
High Sensitivity: Accurate readings even with low signal levels, thanks to the integrated ambient light cancellation.
Integrated Components: Onboard LEDs, photodetectors, optical elements, and a low-noise analog signal processing unit for reliable performance.
Pre-Configured Libraries: Support for Arduino libraries simplifies coding and reduces development time.
Specifications:
Model: MAX30102
Operating Voltage: 1.8V (internal) / 3.3V (external)
Communication Interface: I2C
Measurement Parameters: Heart rate (bpm), SpO2 (%)
Wavelengths: 660nm (Red), 880nm (IR)
Operating Temperature: -40°C to +85°C (-40°F to 185°F)
Dimensions: 14mm x 14mm x 1.2mm (L x W x H)
Current Consumption: 0.7mA (active mode), 0.001µA (standby mode)
Applications:
Wearable Health Devices: Integrate into fitness bands, smartwatches, and other wearable electronics for real-time health monitoring.
Medical Projects: Use in DIY medical devices, personal health monitoring systems, or student projects focused on biomedical applications.
Fitness Trackers: Monitor heart rate and blood oxygen levels during exercise and physical activities.
IoT Health Solutions: Ideal for Internet of Things (IoT) applications that require remote health monitoring and data logging.
Educational Projects: Perfect for students and hobbyists exploring biomedical engineering and sensor technology.
Package Includes:
1 x MAX30102 Pulse Sensor Module
1 x Jumper Wires Set
1 x User Manual
Why Choose the MAX30102 Pulse Sensor?
Precision Monitoring: Provides highly accurate pulse and SpO2 readings, essential for health monitoring applications.
Versatile Integration: Compatible with a wide range of microcontrollers, making it ideal for various DIY projects.
Low Power Design: Ensures long-lasting operation in battery-powered devices, suitable for wearable technology.
User-Friendly: Pre-configured libraries and simple wiring make it easy to get started with Arduino and other platforms.
