AD8232 ECG pulse Heart RateAD8232 ECG Pulse Heart Rate Sensor Module for Arduino and Wearable Projects
Product Overview: The AD8232 ECG Pulse Heart Rate Sensor Module is a low-cost, high-performance solution for monitoring heart rate and ECG signals in real-time. Designed for use in both medical and fitness applications, this module is ideal for Arduino projects, wearable devices, and personal health monitoring systems. With its compact design and easy integration, you can quickly start tracking heart health metrics.
Key Features:
Accurate ECG Signal Detection: High-precision AD8232 chip ensures reliable ECG and heart rate monitoring.
Single-Lead ECG Measurement: Measures electrical activity of the heart using three electrode pads.
Easy Integration: Compatible with Arduino and other microcontrollers, making it perfect for DIY projects and prototyping.
Compact and Portable: Small form factor allows for use in wearable devices and portable health monitors.
Low Power Consumption: Energy-efficient design suitable for battery-powered applications.
Noise Filtering: Includes built-in filter for reducing noise and interference, providing clean ECG signals.
Visual Indicators: Onboard LED indicators for heartbeat detection and operation status.
Specifications:
Model: AD8232
Operating Voltage: 3.3V – 5V
Operating Current: <1mA
Analog Output: ECG signal (can be connected to an ADC or external monitor)
Dimensions: 35mm x 22mm x 8mm (L x W x H)
Interface: 3.5mm jack for electrode leads, 3-pin header for power and signal output
Operating Temperature: -40°C to +85°C (-40°F to 185°F)
Applications:
Heart Rate Monitoring: Use in fitness trackers, smartwatches, and health monitoring devices.
ECG Monitoring: Implement in medical devices for personal ECG tracking and analysis.
Wearable Technology: Ideal for integration into wearable electronics and IoT health applications.
Educational Projects: Perfect for students and hobbyists working on biomedical projects.

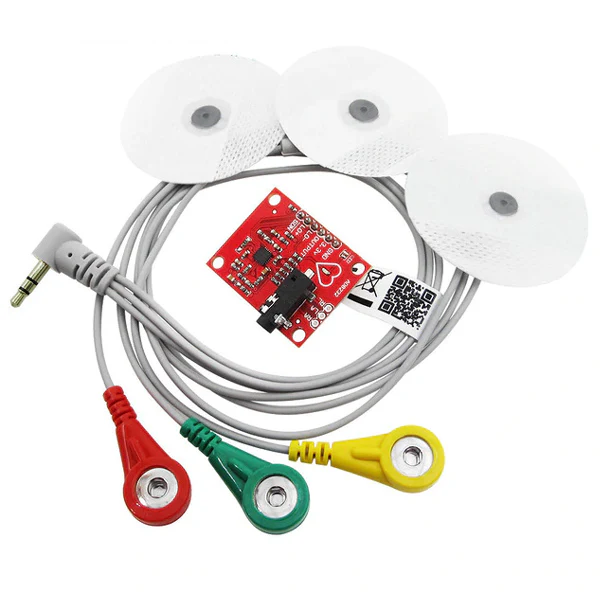

Package Includes:
1 x AD8232 ECG Pulse Heart Rate Sensor Module
3 x Electrode Pads with Leads
1 x 3-Pin Header (for easy connection to microcontrollers)
1 x User Manual
Why Choose the AD8232 ECG Sensor?
High Accuracy: Provides clear and reliable ECG readings, essential for heart health monitoring.
Versatile Application: Suitable for a wide range of projects, from medical devices to fitness gadgets.
Easy to Use: Simple wiring and integration with popular microcontrollers make it accessible to beginners and professionals alike.
Portable Design: Lightweight and compact, making it ideal for portable and wearable applications. sensor
