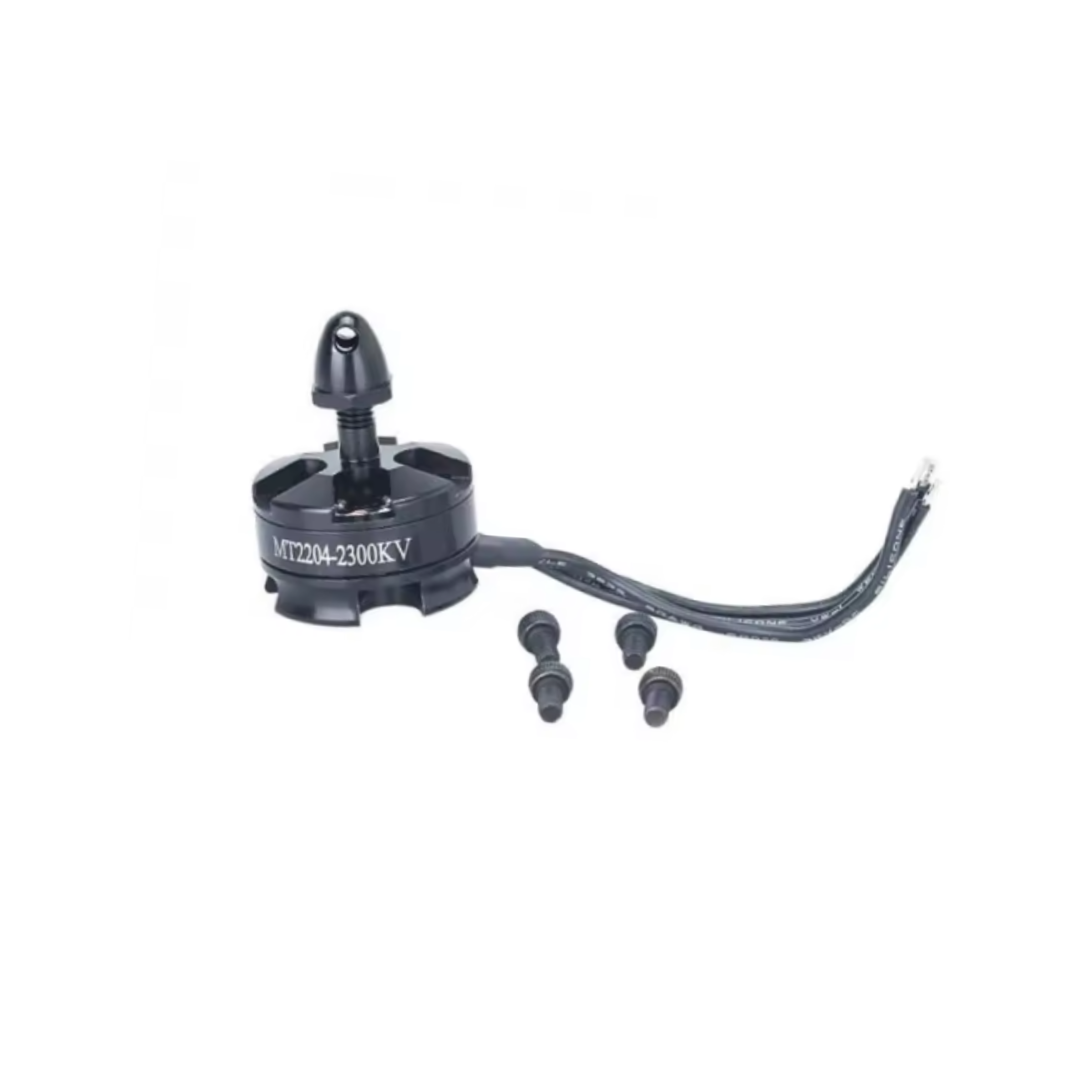

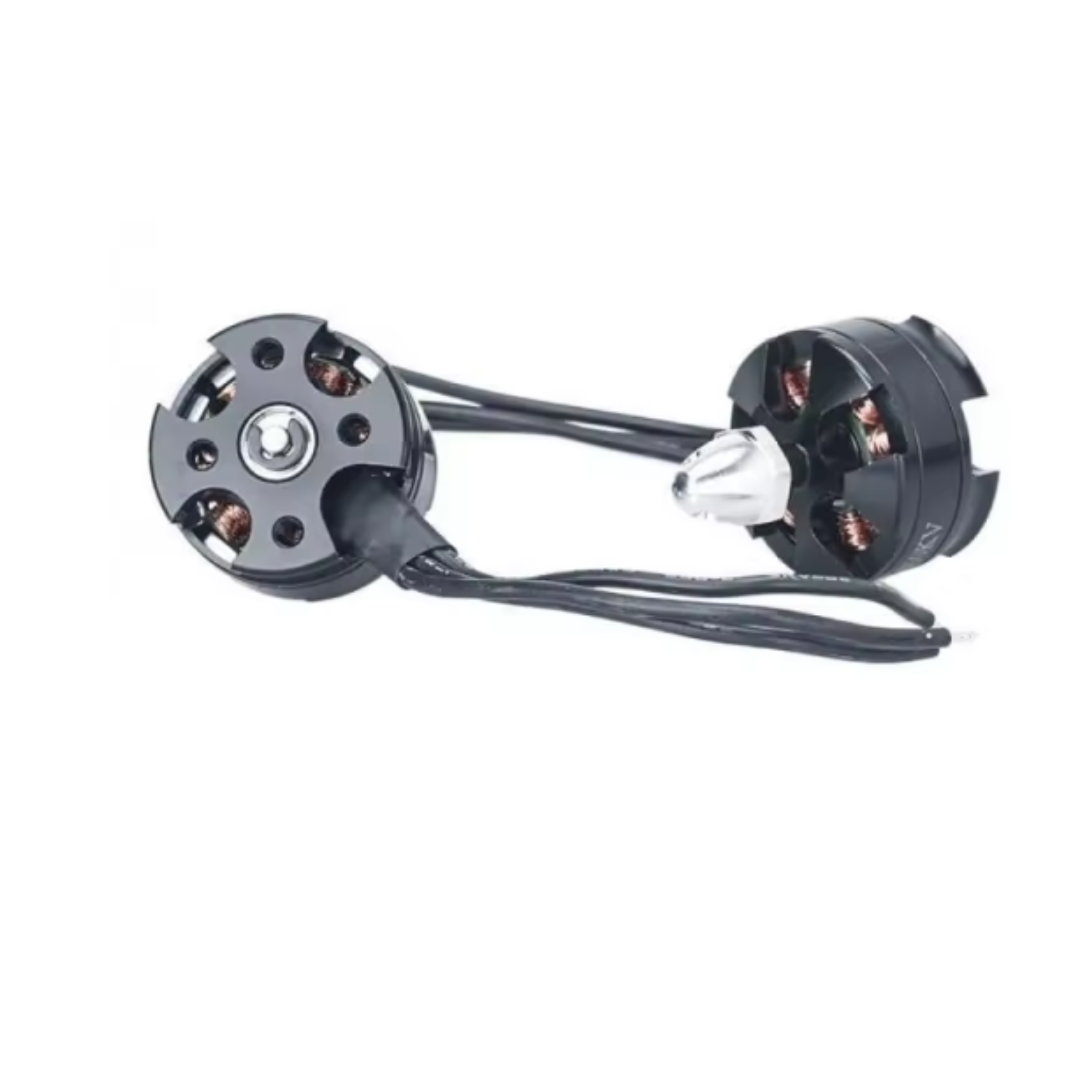

MT2204 2300KV Drone Motor

Overview

Unlock unparalleled speed and agility with our MT2204-2300KV Brushless Drone Motor. Engineered for drone enthusiasts and professionals alike, this motor delivers exceptional performance, making it ideal for racing drones, FPV setups, and high-demand aerial applications. Experience smoother flights, faster acceleration, and greater control with this top-tier motor.

Key Features

• 2300KV high-speed configuration

• Lightweight 2204 frame size

• Durable aluminum alloy housing

• Precision-balanced rotor

• High-quality copper windings

• Efficient heat dissipation design

• Smooth and responsive throttle control

Technical Specifications

• Motor Type: 3-Phase Brushless DC (Outrunner)

• Stator Size: 22mm diameter × 4mm height

• KV Rating: 2300KV

• Recommended Voltage: 11.1V – 14.8V (3S–4S LiPo)

• Recommended ESC: 20A – 30A

• Max Current: Approx. 18–25A

• Shaft Diameter: 3mm

• Weight: Approx. 25–30g

• Recommended Propellers: 5-inch (e.g., 5045)

Working Principle

The MT2204 operates as an outrunner BLDC motor:

• The outer shell (rotor) contains permanent magnets.

• The inner stator contains copper windings.

• The ESC sequentially energizes the stator coils.

• A rotating magnetic field is produced.

• The rotor spins due to electromagnetic interaction.
