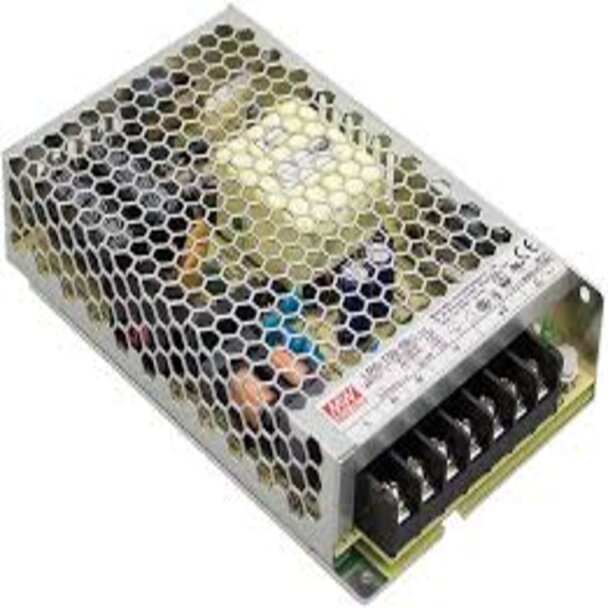

MeanWell LRS-150-12 12V 10A Power Supply Unit (PSU)

MeanWell LRS-150-12 12V 10A Power Supply Unit (PSU)

The MeanWell LRS-150-12 is a robust, high-performance power supply unit designed to provide a steady 12V DC output at up to 10A (120W). Ideal for high-power applications like industrial machinery, LED displays, and more, this PSU combines efficient power conversion with exceptional reliability.

Category:

Description

MeanWell LRS-150-12 12V 10A Power Supply Unit (PSU)

The MeanWell LRS-150-12 is a robust, high-performance power supply unit designed to provide a steady 12V DC output at up to 10A (120W). Ideal for high-power applications like industrial machinery, LED displays, and more, this PSU combines efficient power conversion with exceptional reliability.


Key Features:

  • Output Voltage: 12V DC
  • Output Current: 10A (Maximum Output Power: 120W)
  • High Efficiency: With up to 89% efficiency, it reduces energy waste and minimizes heat generation.
  • Compact & Slim Design: The slim profile makes it easy to install in compact spaces, such as 1U rackmounts or small enclosures.
  • Wide Input Voltage Range: The unit accepts an input voltage range of 90V AC to 264V AC, making it versatile for different regions.
  • Built-in Cooling: Equipped with a fan for active cooling, ensuring the unit operates at optimal temperatures.
  • Safety Approvals: UL, CE, and TUV certified, ensuring the PSU meets high-quality and safety standards.
  • Overload, Over-voltage, Short-circuit Protection: Designed with multiple protective features to ensure safe and stable operation.

Specifications:

  • Model: LRS-150-12
  • Input Voltage: 90V ~ 264V AC (Universal AC Input)
  • Output Voltage: 12V DC
  • Output Current: 10A (Maximum Output Power: 120W)
  • Efficiency: Up to 89%
  • Operating Temperature: -30°C to +70°C
  • Cooling: Active cooling with internal fan
  • Dimensions: 215mm x 115mm x 30mm
  • Weight: 0.88 kg
  • Protection Features: Overload, Over-voltage, Short-circuit protection
  • Certifications: UL, CE, TUV

Applications:

  • LED Lighting Systems: Provides consistent power for high-power LED lighting applications, including street lights, LED signage, and LED strips.
  • Industrial Equipment: Ideal for powering industrial control panels, automation systems, and manufacturing machines.
  • Communication Equipment: Powers networking and telecommunication equipment like routers, switches, and servers.
  • Battery Charging: Suitable for powering battery chargers in various applications requiring 12V DC output.
  • CCTV and Security Systems: Powers surveillance cameras, video recorders, and other security equipment reliably.

The MeanWell LRS-150-12 12V 10A power supply is engineered to meet the demands of high-power applications where reliability and efficiency are key. With a compact form factor, protective features, and efficient operation, this PSU is perfect for both commercial and industrial uses, offering a reliable and continuous power supply for your devices and systems.
