Description

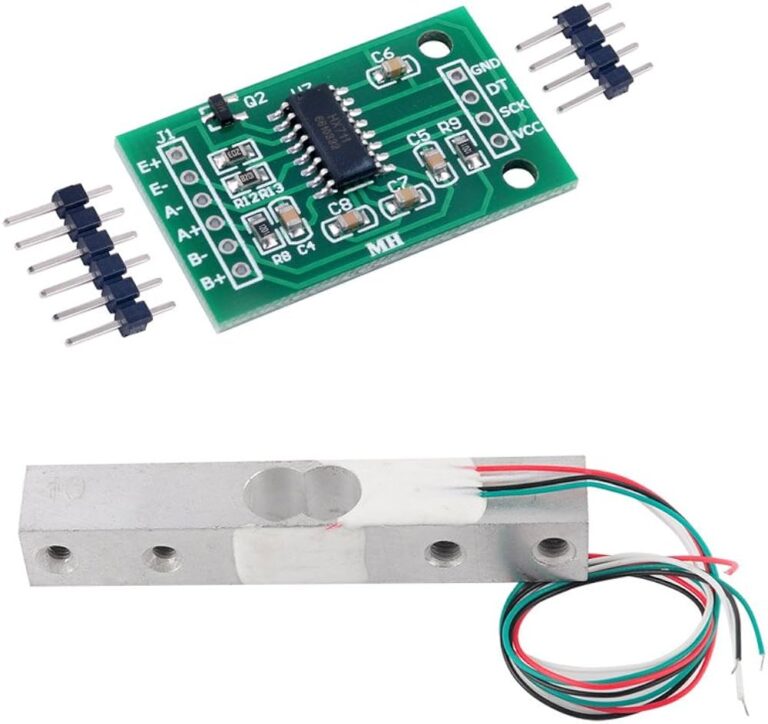

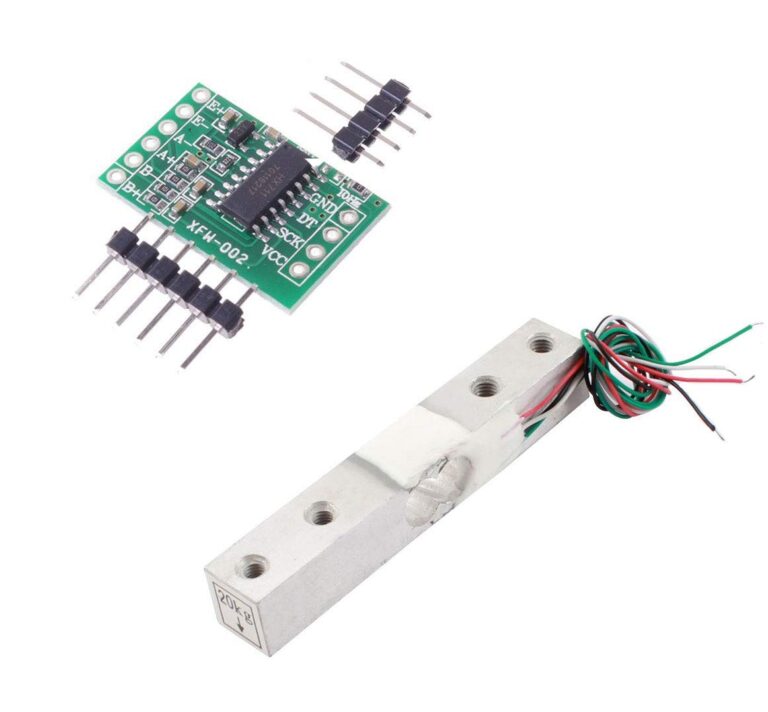

20KG Load Cell with Amplifier HX711
Product Overview
This 20KG Load Cell combined with the HX711 Amplifier module is a perfect solution for measuring weight and force in a wide range of applications. The load cell’s strain gauge design enables it to detect weight changes up to 20 kilograms with high accuracy, while the HX711 amplifier provides a simple and reliable way to interface the load cell with microcontrollers for digital output.
Specifications
- Load Cell Capacity: Up to 20KG (kilograms)
- Output Sensitivity: 1.0±0.15mV/V
- Amplifier Module: HX711, featuring a 24-bit ADC (Analog to Digital Converter)
- Operating Voltage: 2.6V to 5.5V, compatible with most microcontrollers
- Dimensions: Compact and easily mountable for various applications
- Connector Type: 4-wire load cell with HX711 amplifier (VCC, GND, DT, SCK)
Key Features
- High Precision: Detects weight changes up to 20KG with excellent accuracy
- Easy Integration: HX711 provides simple, stable data output compatible with Arduino, Raspberry Pi, and other controllers
- Durable Design: Aluminum alloy load cell, resistant to bending and deformation
- Wide Application Range: Suitable for scales, pressure measurements, and force detection systems
Applications
- Digital Scales: Ideal for building DIY electronic scales
- Industrial Automation: Weight measurement in packing and sorting systems
- IoT Projects: Smart home devices for weight-based data collection and analysis
- Robotics: Force sensing and load monitoring in robotic systems
Why Choose This Load Cell and HX711 Amplifier Module?
This 20KG load cell and HX711 module provide an affordable, reliable, and high-precision solution for weight and force measurement. The compact design and compatibility with popular microcontrollers make it perfect for both hobbyist projects and professional applications.
<br />
Output: Analog signal<br />
Operating Voltage: 2.6V - 5.5V (HX711)<br />
Amplifier Gain: Programmable gain of 32, 64, and 128<br />
Interface: HX711 Amplifier Module with 4-wire connection to load cell (Red: VCC, Black: GND, Green: Signal+, White: Signal-)<br />
Load Cell Dimensions: 80mm x 12.7mm x 12.7mm (L x W x H)<br />
HX711 Module Dimensions: 38mm x 20mm x 10mm (L x W x H)<br />
Operating Temperature: -10°C to +40°C (14°F to 104°F)<br />
<strong>Applications:</strong></p>
<p>Electronic Scales: Build custom scales for personal or industrial use with high accuracy and stability.<br />
Force Measurement: Ideal for measuring forces in mechanical systems, robotics, and automation projects.<br />
Weight Monitoring: Use in agricultural, logistics, and manufacturing sectors for weight monitoring and control.<br />
DIY Projects: Perfect for makers and hobbyists creating unique weighing or force measurement devices.<br />
Educational Projects: Great for students learning about strain gauges, load cells, and analog-to-digital conversion.<br />
<strong>Package Includes:</strong></p>
<p>1 x 20KG Load Cell<br />
1 x HX711 Amplifier Module<br />
1 x Jumper Wires Set<br />
1 x User Manual<br />
<strong>Why Choose This Load Cell & HX711 Combo?</strong></p>
<p>Precision Measurement: Ensures accurate and reliable weight and force measurements up to 20KG.<br />
Ease of Use: Simple integration with microcontrollers and Arduino, with a clear interface and easy setup.<br />
Versatility: Suitable for a broad range of applications, from DIY projects to industrial measurement systems.<br />
Durability: Sturdy construction ensures long-lasting performance in various environments.<br />
om/wp-content/uploads/2024/07/20kg-load-cell.jpg)
