TIP3055 NPN Power Transistor

Overview

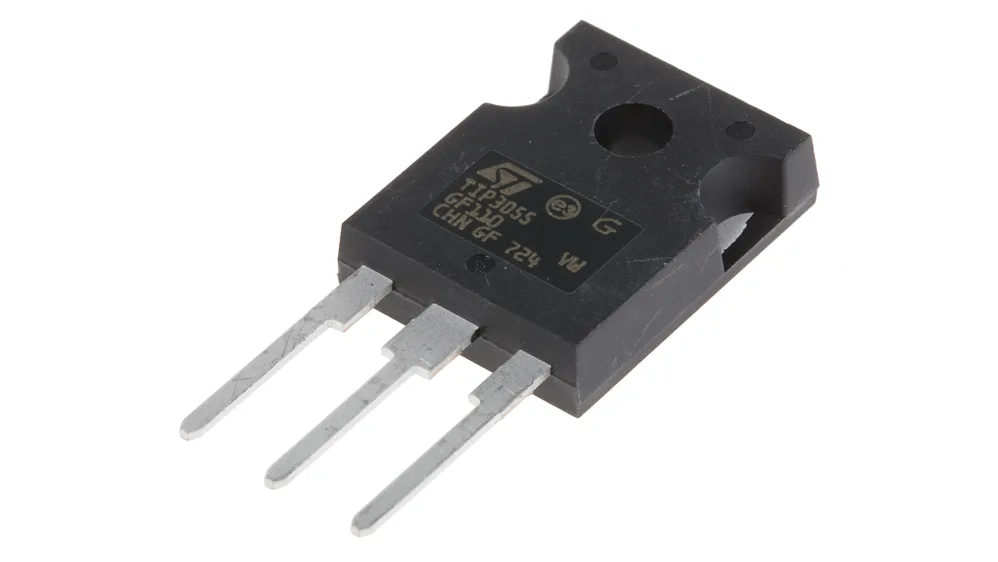

TIP3055 NPN Power Transistor

The TIP3055 is a high-power NPN bipolar junction transistor (BJT) designed for power amplification and switching applications. It is widely used in power supplies, motor control, audio amplifiers, and voltage regulation circuits due to its high current and voltage handling capabilities.

---

Key Features:

• High Power Dissipation: Can handle up to 90W of power.
• High Voltage and Current Rating: Supports up to 100V collector-emitter voltage and 15A collector current.
• Low Saturation Voltage: Ensures efficient power switching.
• TO-247 Package: Provides excellent heat dissipation for high-power applications.
• Reliable Performance: Suitable for both industrial and DIY electronic projects.

---

Specifications:

• Transistor Type: NPN
• Collector-Emitter Voltage (Vce): 100V
• Collector-Base Voltage (Vcb): 100V
• Emitter-Base Voltage (Veb): 5V
• Collector Current (Ic): 15A
• Power Dissipation (Ptot): 90W
• DC Current Gain (hFE): 20 - 70
• Package Type: TO-247

---

Applications:

• Power Amplifiers: Commonly used in audio and RF power amplifiers.
• Voltage Regulation Circuits: Ensures stable power delivery.
• Motor Control: Suitable for high-current motor driver applications.
• Switching Power Supplies: Ideal for power regulation and conversion.

---

Package Includes:

• 1 x TIP3055 NPN Power Transistor

---

The TIP3055 is a robust and high-performance transistor, making it a great choice for DIY electronics, industrial equipment, power amplifiers, and motor control circuits.
