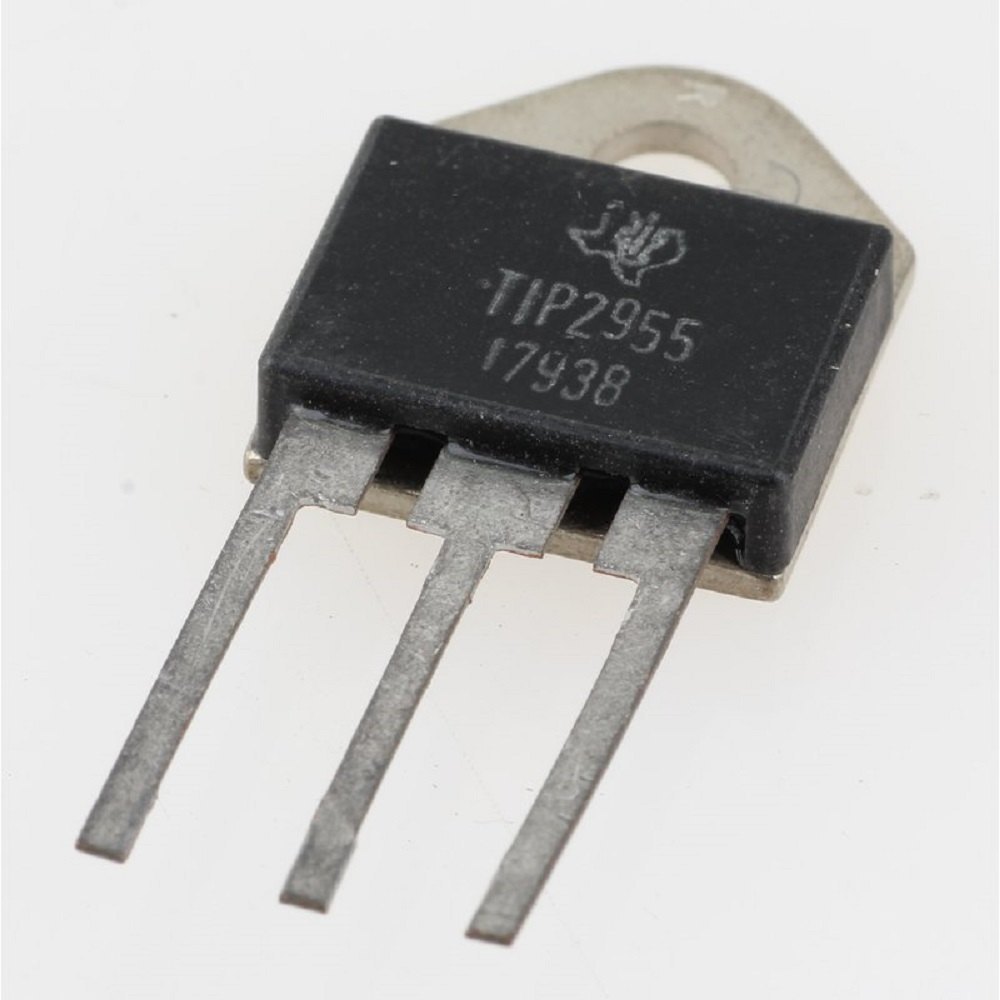

TIP2955 PNP Power Transistor
The TIP2955 is a high-power PNP bipolar junction transistor (BJT) designed for applications requiring high current and voltage handling, such as audio amplifiers, motor drivers, and power switching circuits. It is commonly used in complementary push-pull amplifier circuits alongside its NPN counterpart, TIP3055.
Key Features:
✔ High Power Dissipation: Can handle up to 90W of power.
✔ High Collector Current: Supports up to 15A continuous current.
✔ High Voltage Operation: Collector-emitter voltage up to 60V.
✔ Complementary Pair: Works with TIP3055 (NPN) for push-pull amplifier configurations.
✔ Durable TO-247 Package: Ensures efficient heat dissipation and reliable operation.
Specifications:
- Transistor Type: PNP
- Collector-Emitter Voltage (Vce): 60V
- Collector-Base Voltage (Vcb): 70V
- Emitter-Base Voltage (Veb): 5V
- Collector Current (Ic): 15A
- Power Dissipation (Ptot): 90W
- DC Current Gain (hFE): 20 – 75
- Package Type: TO-247 / TO-3P
Applications:
✔ Audio Power Amplifiers – Ideal for high-power speaker drivers.
✔ Motor Drivers & Speed Controllers – Used in robotics and automation.
✔ Switching Power Supplies – Efficient power regulation for electronic circuits.
✔ Inverter Circuits – Used in DC-AC power conversion.
Package Includes:
- 1 x TIP2955 PNP Power Transistor
The TIP2955 is a reliable and high-performance power transistor, widely used in amplification, motor control, and power switching applications. Its high current capacity and complementary pairing with TIP3055 make it a top choice for high-power electronics projects.
