TIP120 NPN Darlington Power Transistor

Description

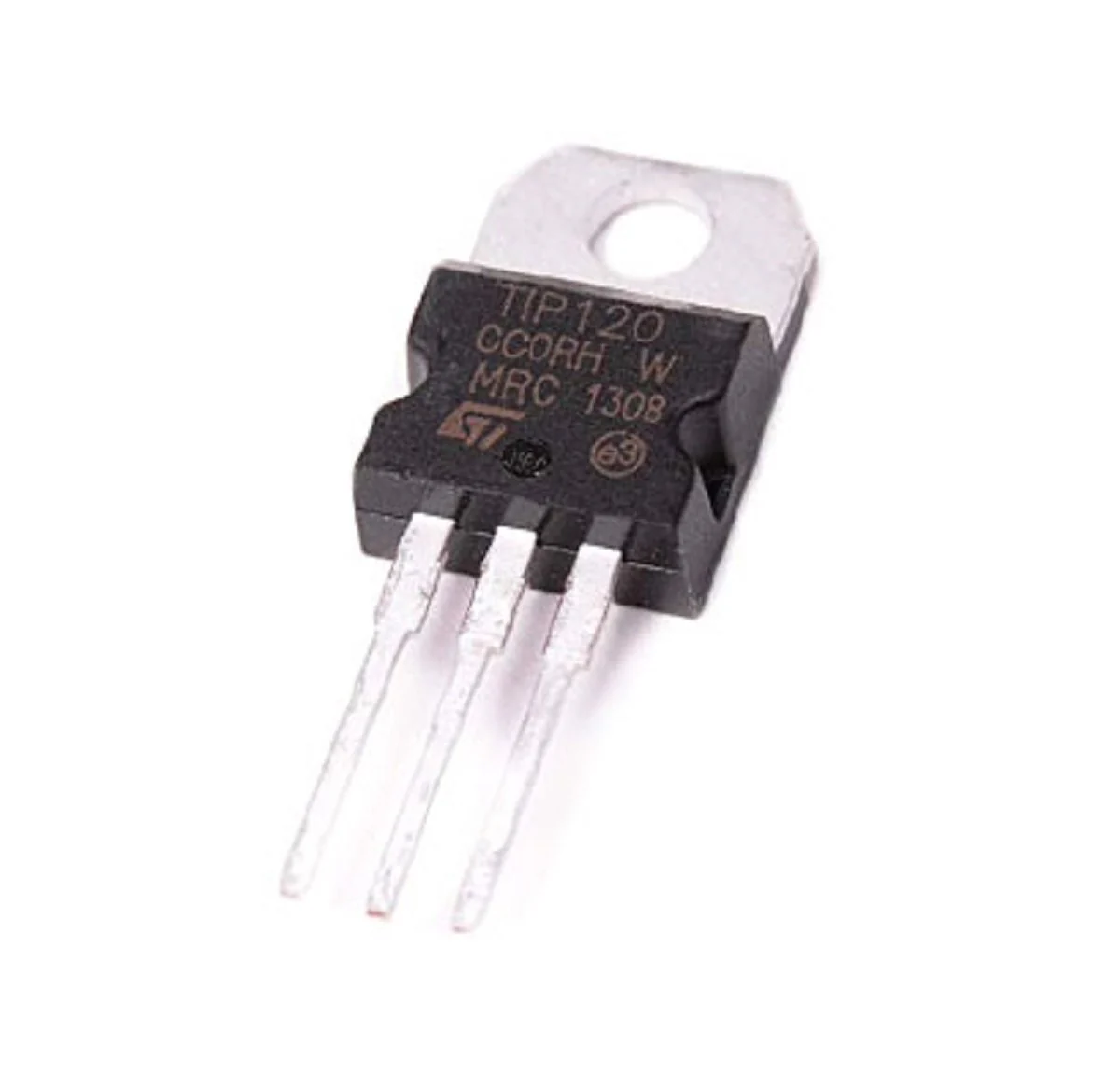

TIP120 NPN Darlington Power Transistor

The TIP120 is an NPN Darlington power transistor designed for high-power switching applications. It features a high current gain and can handle significant power, making it ideal for motor control, relay driving, and other general-purpose switching applications.

---

Key Features:

• High Current Handling: Supports up to 5A continuous current and 8A peak current.
• High Voltage Rating: Operates at up to 60V.
• Darlington Configuration: Provides high gain for efficient switching.
• Low Saturation Voltage: Enhances efficiency in power switching.
• TO-220 Package: Allows easy mounting and excellent heat dissipation.

---

Specifications:

• Transistor Type: NPN Darlington
• Voltage Rating (Vce): 60V
• Current Rating (Ic): 5A (continuous), 8A (peak)
• Power Dissipation: 65W
• DC Current Gain (hFE): 1000 (min)
• Package Type: TO-220

---

Applications:

• Motor Drivers: Used in controlling DC motors and stepper motors.
• Relay Switching: Drives high-power relays and solenoids.
• LED & Lamp Control: Suitable for high-power LED arrays and lighting systems.
• Audio Amplifiers: Works in high-power amplifier circuits.
• General Power Switching: Used in various industrial and DIY electronics applications.

---

Package Includes:

• 1 x TIP120 NPN Darlington Power Transistor

---

The TIP120 is a powerful and versatile transistor widely used in electronics projects, offering high efficiency and reliable performance in power control applications.
