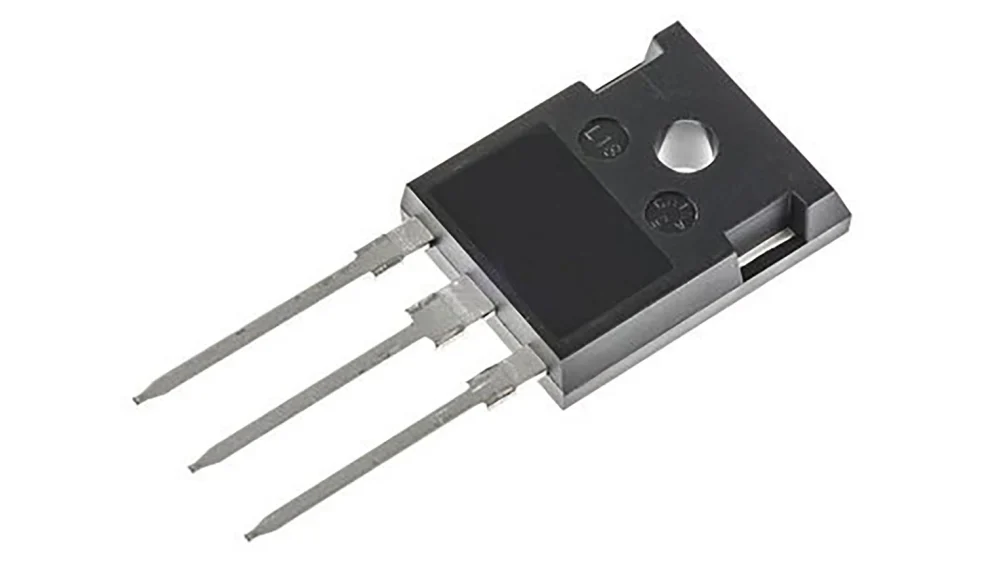

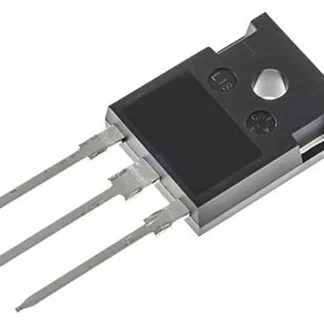

STGW30NC60WD N-channel IGBT

Overview

STGW30NC60WD N-channel IGBT

The STGW30NC60WD is an N-channel Insulated Gate Bipolar Transistor (IGBT) designed for high-power switching applications, offering low conduction losses and fast switching capabilities. It is ideal for use in motor control, power inverters, high-frequency power supplies, and industrial applications that require efficient switching of high voltages and currents.

---

Key Features:

✔ High Voltage Rating: Supports a collector-emitter voltage (Vce) of up to 600V, suitable for medium-voltage power circuits. ✔ Low Conduction Loss: Low saturation voltage for efficient power conversion and reduced heat generation. ✔ High Switching Speed: Designed for fast switching speeds to meet the demands of modern power electronics. ✔ Thermal Stability: Provides excellent thermal performance with a high current carrying capacity and a low thermal resistance. ✔ Built-in Diode: Integrated free-wheeling diode for improved reliability in applications like motor control and power conversion.

---

Specifications:

• Type: N-channel IGBT
• Collector-Emitter Voltage (Vce): 600V
• Continuous Collector Current (Ic): 30A
• Gate-Emitter Voltage (Vge): ±20V
• Collector Saturation Voltage (Vce(sat)): 2.0V
• Total Gate Charge (Qg): 140nC
• Operating Junction Temperature (Tj): -40°C to 150°C
• Package Type: TO-220FP (Fully Isolated Package)

---

Applications:

✔ Motor Drives: Used in AC and DC motor control systems, inverters, and servo motors for controlling the power to the motors efficiently. ✔ Power Supplies: Ideal for use in switching power supplies, DC-AC inverters, and high-frequency power conversion. ✔ Induction Heating: Commonly found in induction heating circuits, providing the required power switching capability. ✔ UPS Systems: Used in uninterruptible power supplies (UPS) for efficient power conversion and management. ✔ Welding Equipment: Suitable for high-power welding machines that require precise control of power delivery.

---

Package Includes:

• 1 x STGW30NC60WD N-channel IGBT

---

The STGW30NC60WD is a robust N-channel IGBT offering high voltage and current handling capabilities, making it ideal for industrial applications, motor drives, and high-power switching circuits. With low conduction loss, fast switching speeds, and built-in freewheeling diode, this IGBT provides excellent performance for your power conversion and control needs.
