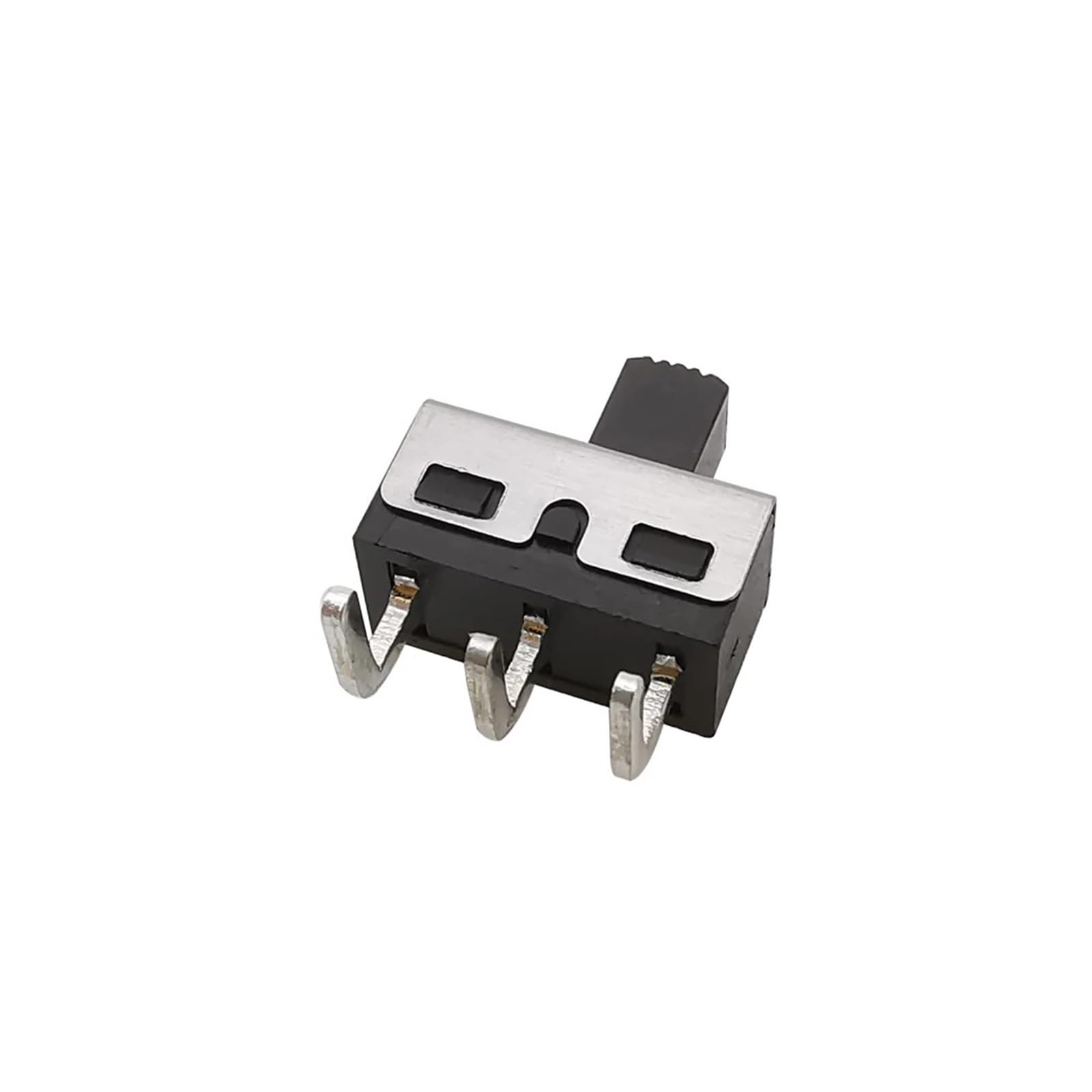

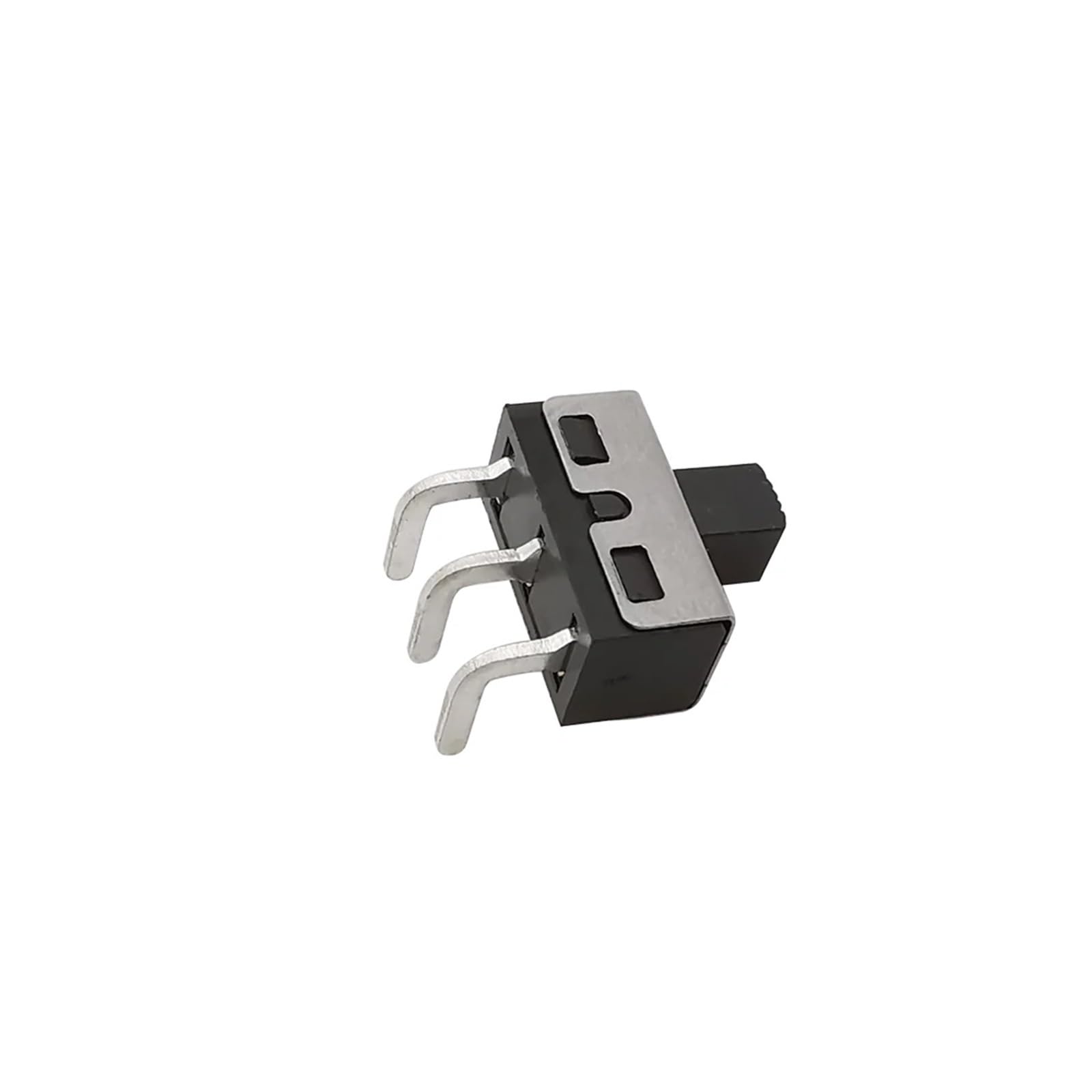

SS12D10 Slide Switch (SPDT, 2 Position, 0.5A 50V DC)
Description: Simplify your circuit control with the SS12D10 Slide Switch. This compact, single-pole double-throw (SPDT) switch provides smooth and reliable two-position switching, making it perfect for a variety of electronic projects. Whether you’re toggling power, signals, or operating modes, the SS12D10 is a versatile and essential component for your toolkit.
Features:
SPDT Configuration: Single-pole double-throw (SPDT) switch with two selectable positions.
Compact Design: Small form factor, ideal for space-constrained projects.
Current Rating: Supports up to 0.5A at 50V DC, suitable for low-power applications.
Durable Construction: Made from high-quality materials for reliable performance.
Smooth Operation: Offers a gentle sliding action with a firm stop at each position.
Easy Mounting: Designed for through-hole mounting with three solder terminals.
Specifications:
Type: Slide Switch (SPDT)
Positions: 2 (On-On)
Current Rating: 0.5A at 50V DC
Contact Resistance: ≤ 50mΩ
Insulation Resistance: ≥ 100MΩ at 500V DC
Switch Travel Distance: 2mm
Mounting Hole Distance: 10mm
Dimensions: 12mm x 5mm x 3.5mm (body size)
Applications:
DIY electronics and hobby projects
Audio and video equipment
Small appliances and gadgets
Signal switching in circuit boards
Mode selection in embedded systems
Battery-powered devices
Package Includes:
1x SS12D10 Slide Switch
