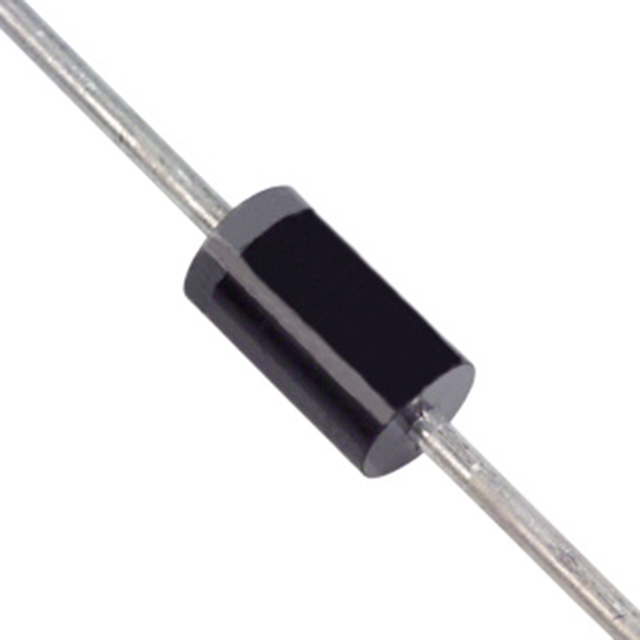

SR306-T – Schottky Rectifier Diode

Description

SR306-T – Schottky Rectifier Diode

📝 Product Overview:

The SR306-T is a Schottky rectifier diode designed for high-efficiency power conversion applications. It features low forward voltage drop, fast switching speed, and high surge capability, making it ideal for power supplies, inverters, and rectification circuits.

🔍 Key Specifications:

✔ Diode Type: Schottky Rectifier
✔ Maximum Reverse Voltage (VR): 60V
✔ Maximum Forward Current (IF): 3A
✔ Forward Voltage Drop (VF): ~0.85V at 3A
✔ Reverse Leakage Current (IR): Low
✔ Package Type: DO-201AD (Axial Leaded Package)
✔ Operating Temperature Range: -65°C to +150°C
✔ RoHS Compliant & Lead-Free

📌 Applications:

📌 Power Supply Rectification – Converts AC to DC efficiently
📌 DC-DC Converters – Used in switch-mode power supplies (SMPS)
📌 Freewheeling Diode – Protects circuits from voltage spikes
📌 Solar Panel Systems – Improves efficiency in photovoltaic applications
📌 Motor Control & Protection – Used in motor drives to prevent back-EMF damage

📦 Recommended Replacements & Alternatives:

🔹 1N5822 – 40V, 3A, Schottky diode
🔹 MBR360 – 60V, 3A, similar Schottky rectifier
🔹 SS36 – 60V, 3A, SMD version for compact designs

💡 Perfect for applications requiring high-speed rectification with minimal power loss! 🚀
