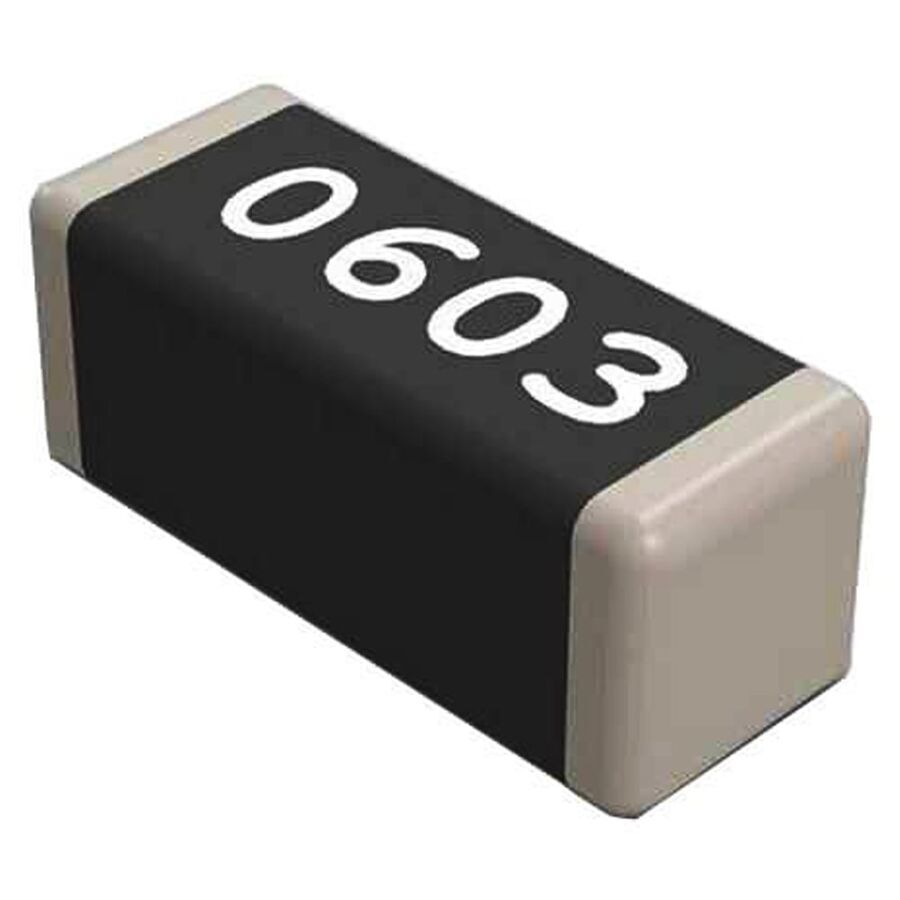

SMD Resistor 8KΩ 1/10W 5% 0603
Product Overview:
The SMD Resistor 8KΩ 1/10W 5% 0603 is a compact, surface-mount resistor designed for use in a variety of electronic circuits. With a resistance of 8KΩ, a power rating of 1/10W (0.1W), and a ±5% tolerance, this resistor is ideal for applications such as voltage dividers, signal conditioning, and general-purpose circuit designs.
Housed in a 0603 package (1.6mm × 0.8mm), this resistor provides a balance between compact size and power handling capability, making it suitable for both consumer and industrial electronics. Built using thick-film technology, it offers stable performance across a wide range of operating conditions.
Key Specifications:
- Resistance Value: 8KΩ (8,000Ω)
- Power Rating: 1/10W (0.1W)
- Tolerance: ±5%
- Package Size: 0603 (1.6mm × 0.8mm)
- Mounting Type: Surface Mount (SMD)
- Temperature Coefficient: ±200ppm/°C
- Operating Temperature Range: -55°C to +155°C
- Voltage Rating: 75V max
- Construction: Thick-film technology
- Moisture Sensitivity Level (MSL): 1 (Unlimited shelf life under ≤30°C/85% RH)
- Termination Style: Solderable terminations for reflow and wave soldering
Applications:
- Voltage Divider Circuits: Used in precision signal conditioning and sensor circuits.
- Microcontroller Pull-up/Pull-down Resistors: Ensures stable logic levels.
- Consumer Electronics: Found in smartphones, tablets, and home appliances.
- Automotive Electronics: Used in infotainment systems, lighting control, and dashboards.
- Industrial & IoT Devices: Optimized for low-power and space-constrained applications.
- Power Management Circuits: Used in gain-setting and feedback control loops.
Features & Benefits:
✔ Compact 0603 Package: Offers a balance between size and power handling.
✔ Moderate Tolerance (±5%): Suitable for most general-purpose applications.
✔ Stable Thick-Film Construction: Ensures long-term reliability.
✔ Wide Operating Temperature Range (-55°C to +155°C): Suitable for industrial and automotive use.
✔ Compatible with Reflow & Wave Soldering: Ideal for automated PCB assembly.
✔ Cost-Effective & Versatile: Used in a wide range of electronic devices.
