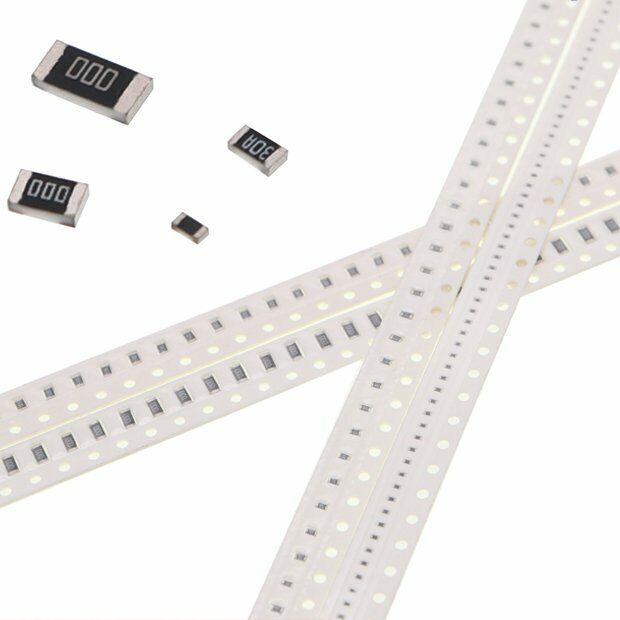

SMD Resistor 680K pack of 10

Description

SMD Resistor 680KΩ 1/16W 5% 0402

📝 Product Overview:

The 680KΩ (680,000 ohms) SMD Resistor in a compact 0402 package is a surface-mount resistor designed for general-purpose electronic circuits. With a 5% tolerance, it provides a reliable and cost-effective solution for applications where high precision is not critical but stability and durability are required.

🔍 Key Specifications:

✔ Resistance Value: 680KΩ (680,000 ohms)
✔ Tolerance: ±5%
✔ Power Rating: 1/16W (0.0625W)
✔ Package Size: 0402 (1.0mm × 0.5mm)
✔ Temperature Coefficient: ±200ppm/°C (typical)
✔ Operating Temperature Range: -55°C to +155°C
✔ Mounting Type: Surface Mount (SMD)
✔ Material: Thick Film
✔ RoHS Compliant & Lead-Free

📌 Applications:

📌 Voltage Dividers – Used in resistor networks for voltage regulation
📌 Signal Conditioning – Found in sensor circuits and analog processing
📌 Microcontroller Circuits – Acts as pull-up/pull-down resistors
📌 Consumer Electronics – Used in various electronic devices for biasing and filtering
📌 Industrial Equipment – Integrated into control circuits for stable resistance values

📦 Recommended Replacements & Alternatives:

🔹 RC0402JR-07680KL – Yageo, Thick Film Resistor, 5%
🔹 CRCW0402680KJNEA – Vishay, Standard Thick Film, 5%
🔹 MCS04020C6803FE000 – Vishay, High Stability Thin Film Resistor

💡 A great choice for cost-effective circuit designs requiring reliable resistance values! 🚀
