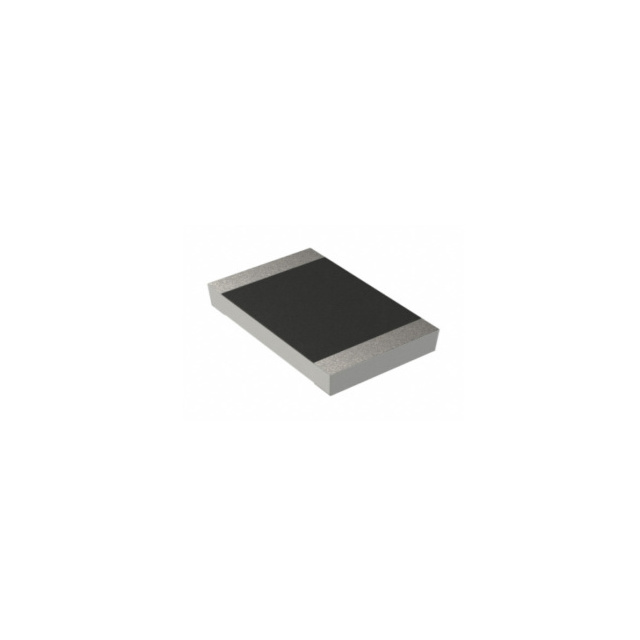

SMD Resistor 51kΩ 1/16W 5% 0402 – Surface Mount Chip Resistor
Overview:
This is a 51kΩ (51,000 ohms) Surface Mount (SMD) Resistor with a 0402 package size, 1/16W (0.0625W) power rating, and 5% tolerance. It is a general-purpose resistor used in compact electronic circuits for voltage division, current limiting, and signal conditioning.
Key Features:
✔ Resistance: 51kΩ
✔ Power Rating: 1/16W (0.0625W)
✔ Tolerance: ±5% (Standard Precision)
✔ Package Size: 0402 (1.0mm × 0.5mm)
✔ Temperature Coefficient: ±200 ppm/°C (typical)
✔ Mounting Type: Surface Mount (SMD)
✔ RoHS Compliant & Halogen-Free
Technical Specifications:
| Parameter | Value |
|---|---|
| Resistance Value | 51kΩ (51,000 ohms) |
| Tolerance | ±5% |
| Power Rating | 1/16W (0.0625W) |
| Package Size | 0402 (1.0mm × 0.5mm) |
| Temperature Coefficient | ±200 ppm/°C (typical) |
| Operating Temperature Range | -55°C to +125°C |
| Mounting Type | SMD (Surface Mount) |
| Material | Thick Film (common for 5% tolerance) |
Applications:
✅ Voltage Divider Circuits – Used for general signal scaling
✅ Current Limiting & Pull-Up/Pull-Down Resistors – For microcontrollers and logic circuits
✅ General-Purpose Electronic Circuits – Cost-effective for consumer electronics
✅ Power Supplies & LED Drivers – Used in feedback and control circuits
✅ IoT Devices & Wearables – Space-efficient solution
Recommended Alternatives:
🔹 Yageo RC0402JR-0751KL – 51kΩ, 5%, 1/16W, 0402 resistor
🔹 Vishay CRCW040251K0JNTD – High-quality alternative
🔹 Samsung RC1005J513CS – Cost-effective option
Package Includes:
✔ 1 x SMD 51kΩ Resistor (1/16W, 5%, 0402)
