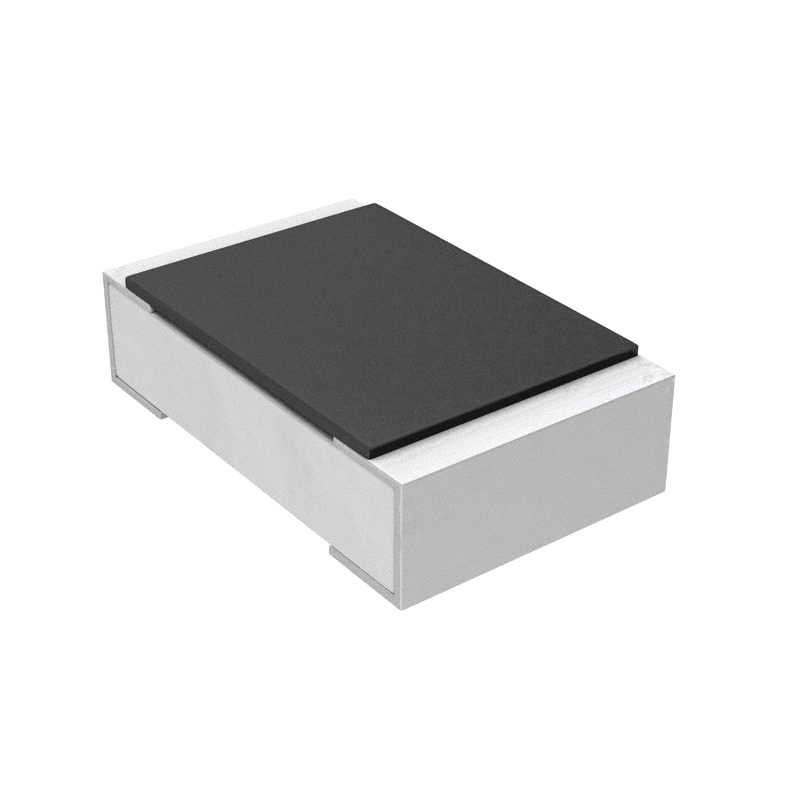

SMD Resistor 15kΩ 1/16W 1% 0402 – Precision Surface Mount Resistor
Overview:
This is a 15kΩ (15,000 ohms) Surface Mount (SMD) Resistor with a 0402 package size, 1/16W (0.0625W) power rating, and 1% tolerance. It is a precision resistor commonly used in applications requiring accurate resistance values.
Key Features:
✔ Resistance: 15kΩ
✔ Power Rating: 1/16W (0.0625W)
✔ Tolerance: ±1% (High Precision)
✔ Package Size: 0402 (1.0mm × 0.5mm)
✔ Temperature Coefficient: ±100 ppm/°C (typical)
✔ Mounting Type: Surface Mount (SMD)
✔ RoHS Compliant & Halogen-Free
Technical Specifications:
| Parameter | Value |
|---|---|
| Resistance Value | 15kΩ (15,000 ohms) |
| Tolerance | ±1% |
| Power Rating | 1/16W (0.0625W) |
| Package Size | 0402 (1.0mm × 0.5mm) |
| Temperature Coefficient | ±100 ppm/°C (typical) |
| Operating Temperature Range | -55°C to +155°C |
| Mounting Type | SMD (Surface Mount) |
| Material | Thin Film (common for 1% tolerance) |
Applications:
✅ Precision Voltage Divider Circuits – Used where accuracy is essential
✅ Current Sensing & Filtering – For control circuits and signal processing
✅ General-Purpose Electronic Circuits – High-reliability applications
✅ Power Supplies & Sensor Interfaces – Used in analog and digital circuits
✅ IoT Devices & Wearables – Compact, efficient component
Recommended Alternatives:
🔹 Yageo RC0402FR-0715KL – 15kΩ, 1%, 1/16W, 0402 resistor
🔹 Vishay CRCW040215K0FKED – High-quality alternative
🔹 Samsung RC1005F153CS – Cost-effective precision option
Package Includes:
✔ 1 x SMD 15kΩ Resistor (1/16W, 1%, 0402)
