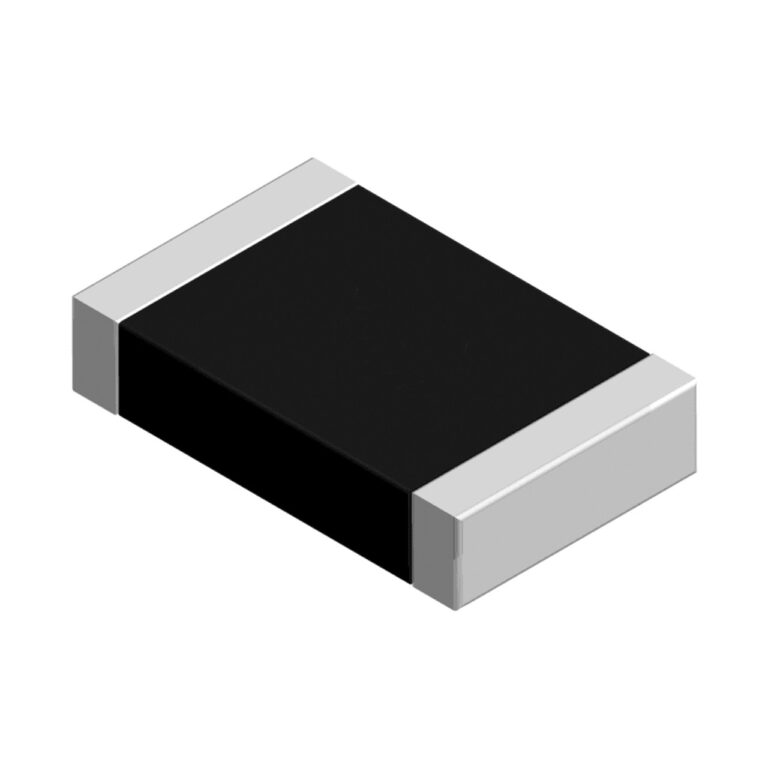

SMD Resistor – 100KΩ, 1/16W, 5%, 0402
Overview:
This is a surface-mount (SMD) resistor with a resistance value of 100KΩ (100,000 ohms), a power rating of 1/16W (0.0625W), and a tolerance of ±5% in a 0402 (1005 metric) package.
Key Features:
✔ Resistance: 100KΩ (100,000 ohms)
✔ Power Rating: 1/16W (0.0625W)
✔ Tolerance: ±5% (J code)
✔ Size: 0402 (1.0mm × 0.5mm)
✔ Temperature Coefficient: ±200ppm/°C
✔ Surface Mount Device (SMD) Package
✔ AEC-Q200 Qualified Options Available
Technical Specifications:
| Parameter | Value |
|---|---|
| Resistance | 100KΩ |
| Power Rating | 1/16W (62.5mW) |
| Tolerance | ±5% |
| Package Size | 0402 (1.0mm x 0.5mm) |
| Temperature Coefficient | ±200ppm/°C |
| Max Working Voltage | 50V |
| Max Overload Voltage | 100V |
| Operating Temperature | -55°C to +125°C |
| Mounting Type | SMD |
Applications:
✅ Consumer Electronics – Used in smartphones, tablets, and wearables
✅ Automotive – Found in ECU circuits and sensors
✅ Power Management – Voltage dividers and feedback networks
✅ Medical Devices – Used in compact electronic circuits
✅ Industrial Electronics – Reliable performance in control systems
Recommended Alternatives:
🔹 Yageo RC0402JR-07100KL – General-purpose alternative
🔹 Vishay CRCW0402100KJNED – High-reliability version
🔹 Samsung RR0402J100KP – Suitable for consumer applications
Package Includes:
✔ 1 x 100KΩ SMD Resistor (0402, 1/16W, ±5%)
