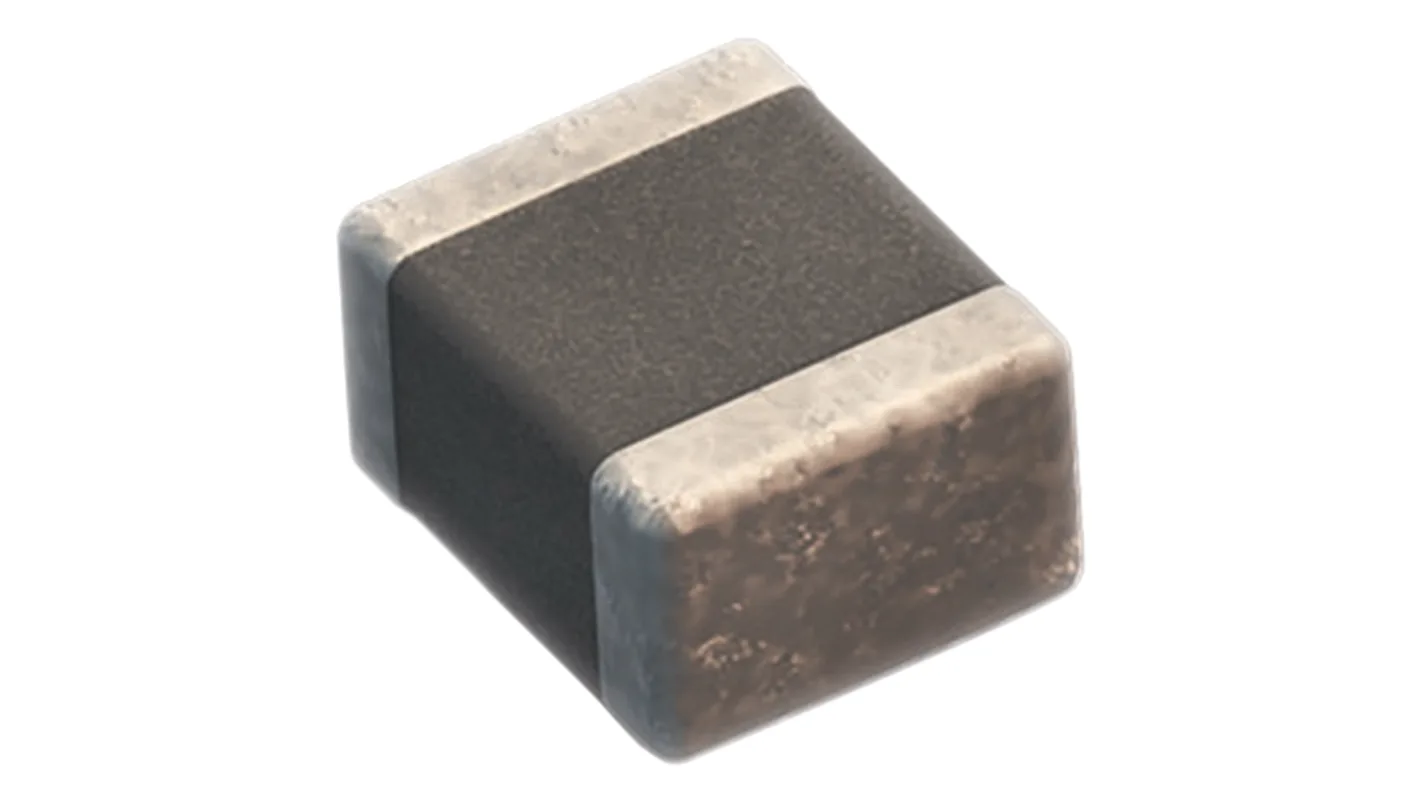

C1005X7R1C104KT – Multilayer Ceramic Capacitor (MLCC) SMD
Product Overview:
The C1005X7R1C104KT is a Surface Mount Multilayer Ceramic Capacitor (MLCC) designed for a wide range of electronic applications, including decoupling, filtering, and noise suppression. This capacitor has a capacitance of 100nF (0.1µF) and a voltage rating of 16V, making it an excellent choice for power management and signal integrity in compact circuits. It uses an X7R dielectric, ensuring stable performance across varying temperatures.
Key Specifications:
- Capacitance: 100nF (0.1µF)
- Voltage Rating: 16V DC
- Tolerance: ±10%
- Dielectric Material: X7R (Stable over Temperature)
- Temperature Coefficient: ±15% (-55°C to +125°C)
- Package Size: 0402 (1005 Metric) Surface Mount
- Mounting Type: SMD/SMT
- RoHS Compliance: Yes
Applications:
✔ Decoupling & Bypassing – Improves power stability for ICs by filtering noise.
✔ Power Line Filtering – Reduces electromagnetic interference (EMI) in power circuits.
✔ Signal Conditioning – Used in RF and communication circuits for smooth signal transmission.
✔ Consumer Electronics – Found in smartphones, tablets, and other compact electronic devices.
✔ Automotive & Industrial Use – Suitable for ECUs, sensors, and embedded systems in harsh environments.
Features & Benefits:
✔ X7R Dielectric – Offers excellent temperature stability and capacitance retention.
✔ Compact 0402 Package – Ideal for high-density PCB layouts.
✔ Wide Operating Temperature (-55°C to +125°C) – Ensures performance in extreme conditions.
✔ Stable Electrical Properties – Minimal capacitance drift under varying voltages and temperatures.
✔ RoHS Compliant – Environmentally friendly and lead-free.
