SMD Capacitor – 2.2pF pack of 10

Description

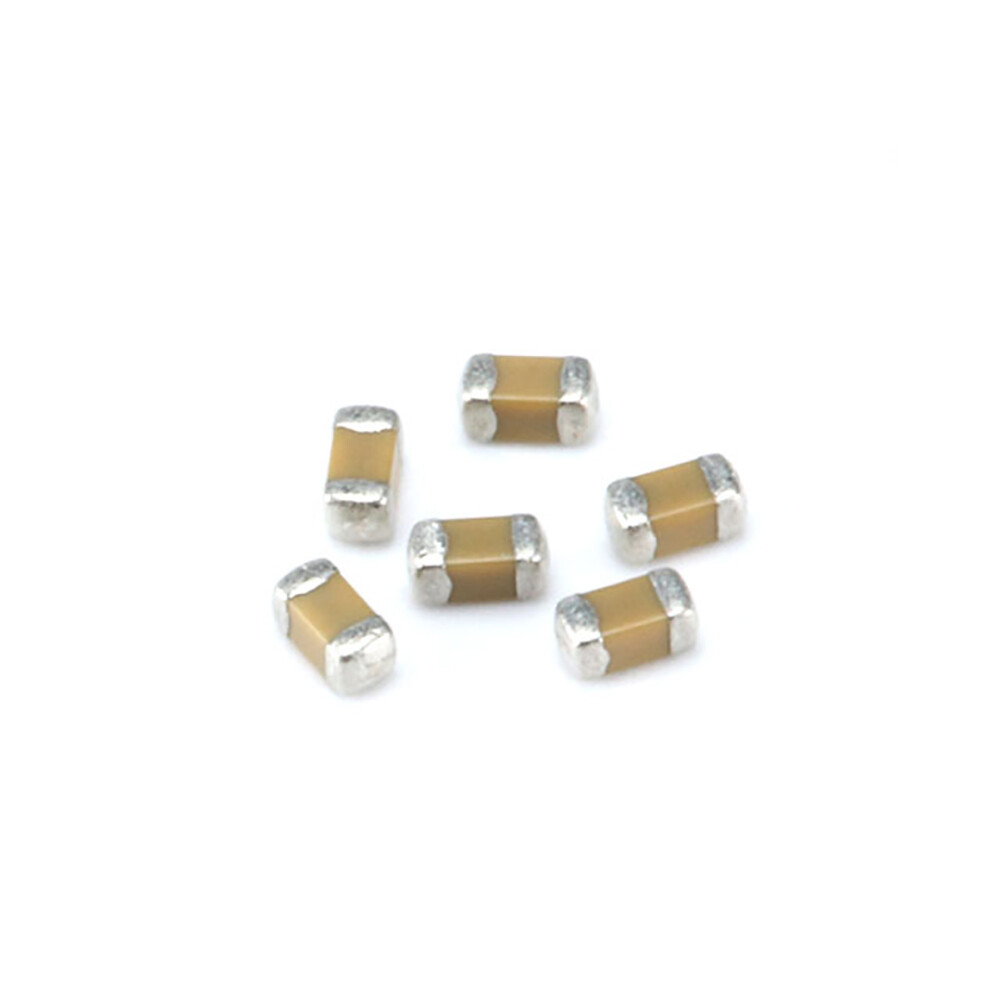

SMD Capacitor – 2.2pF, 16V, 0.25%, 0402

Product Overview:

This 2.2pF surface-mount ceramic capacitor is a high-precision passive component commonly used in RF circuits, high-frequency filtering, and impedance matching applications. With a 16V DC voltage rating and ultra-tight 0.25% tolerance, it ensures minimal variation, making it ideal for precision-tuned circuits. The 0402 (1005 metric) package allows for compact PCB layouts while maintaining stable performance in critical signal paths.

Key Specifications:

• Capacitance: 2.2pF
• Voltage Rating: 16V DC
• Tolerance: ±0.25% (Ultra-Precise)
• Dielectric Type: C0G (NP0) – Low drift, high stability
• ESR (Equivalent Series Resistance): Low ESR for high-frequency applications
• Package Size: 0402 (1005 metric)
• Operating Temperature Range: -55°C to +125°C
• Mounting Type: Surface Mount (SMD / SMT)
• RoHS Compliant: Yes

Applications:

✔ RF & Microwave Circuits: Used in tuned filters, matching networks, and oscillators.
✔ High-Frequency Signal Processing: Essential for stable capacitance in GHz-range circuits.
✔ Impedance Matching Networks: Ensures minimal signal loss in RF transmission lines.
✔ Antenna Matching & Tuning: Helps optimize wireless communication systems.
✔ Medical & Aerospace Electronics: Provides precise, stable capacitance for mission-critical applications.

Features & Benefits:

✔ Ultra-Tight 0.25% Tolerance: Ensures consistent, predictable performance.
✔ Stable C0G (NP0) Dielectric: Minimal capacitance shift over temperature and voltage changes.
✔ Compact 0402 Size: Enables high-density PCB designs in RF and wireless applications.
✔ Low ESR & High Q Factor: Reduces signal loss and enhances circuit efficiency.
✔ RoHS Compliant & Lead-Free: Environmentally friendly and safe for modern electronics.
