SMD Capacitor – 10nF pack of 10

Overview

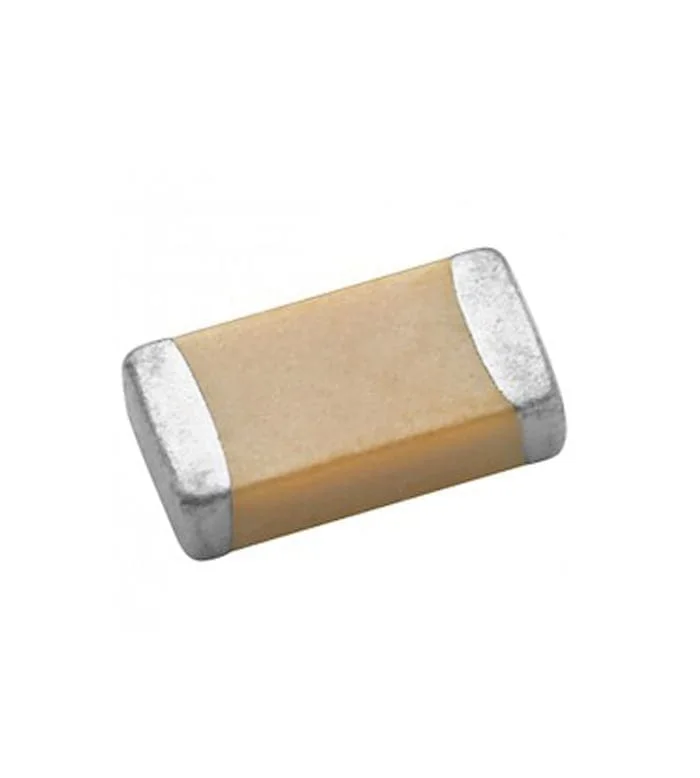

SMD Capacitor – 10nF, 450V, 10%, 1206

Product Overview:

This 10nF (0.01µF) high-voltage surface-mount ceramic capacitor is designed for applications requiring reliable capacitance at elevated voltages. With a 450V DC rating and ±10% tolerance, it is ideal for power supply circuits, high-voltage filtering, and transient voltage suppression. The 1206 (3216 metric) package offers a balance between compact size and robust voltage handling.

Key Specifications:

• Capacitance: 10nF (0.01µF)
• Voltage Rating: 450V DC
• Tolerance: ±10%
• Dielectric Type: X7R / C0G (varies by manufacturer)
• ESR (Equivalent Series Resistance): Low ESR for high-frequency stability
• Package Size: 1206 (3216 metric)
• Operating Temperature Range: -55°C to +125°C
• Mounting Type: Surface Mount (SMD / SMT)
• RoHS Compliant: Yes

Applications:

✔ Power Supply Filtering: Reduces noise and ripple in high-voltage circuits.
✔ Switching Power Supplies (SMPS): Helps maintain stable voltage in converters and inverters.
✔ High-Voltage Signal Coupling & Decoupling: Used in industrial and communication equipment.
✔ Transient Voltage Suppression: Helps absorb voltage spikes in sensitive electronics.
✔ Automotive & Industrial Electronics: Designed for reliability in harsh environments.

Features & Benefits:

✔ High-Voltage Rating (450V): Suitable for demanding power and energy applications.
✔ Stable Dielectric (X7R/C0G): Provides consistent capacitance with minimal drift over time.
✔ Low ESR & High Reliability: Ensures efficient performance in high-frequency circuits.
✔ Compact 1206 Package: Balances voltage handling with PCB space efficiency.
