Schottky Diode

5.00

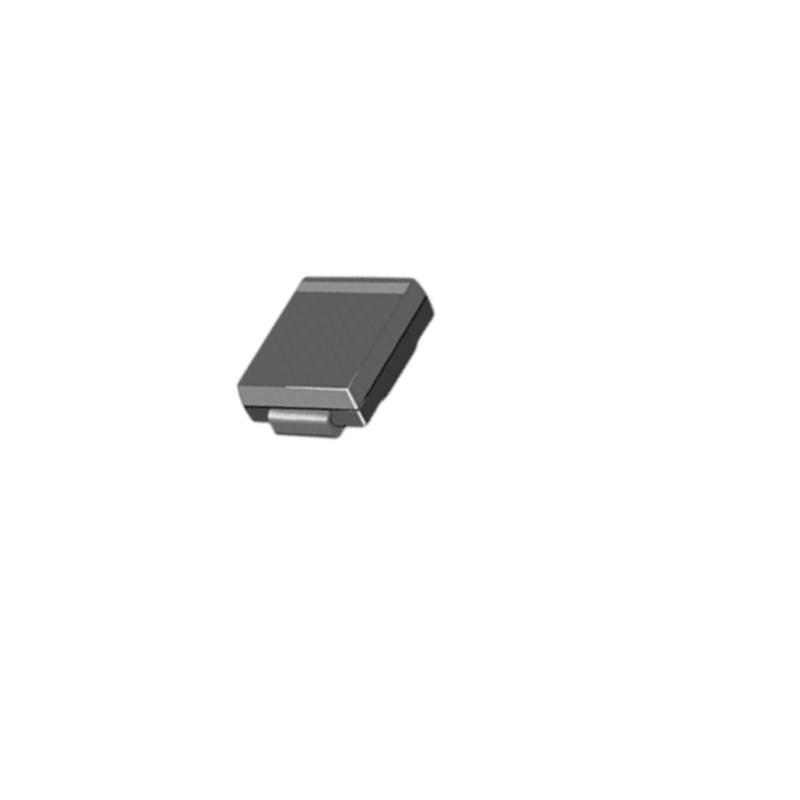

VS-10BQ015TRPBF – Schottky Diode & Rectifier

The VS-10BQ015TRPBF is a high-efficiency Schottky barrier rectifier designed for low voltage, high-frequency applications. It is known for its low forward voltage drop, making it ideal for power supply circuits, DC-DC converters, and polarity protection.

300 in stock

Category:

Description

VS-10BQ015TRPBF – Schottky Diode & Rectifier

The VS-10BQ015TRPBF is a high-efficiency Schottky barrier rectifier designed for low voltage, high-frequency applications. It is known for its low forward voltage drop, making it ideal for power supply circuits, DC-DC converters, and polarity protection.


Key Features:

Low Forward Voltage Drop (Vf) – Reduces power loss and heat dissipation.
High Efficiency – Optimized for switching power supplies and rectification.
Low Reverse Leakage Current – Ensures better performance and longevity.
TO-252 (DPAK) Package – Surface-mount design for compact PCB layouts.
150°C Maximum Junction Temperature – Suitable for high-temperature environments.


Technical Specifications:

Parameter Value
Diode Type Schottky Barrier Rectifier
Maximum Voltage (VRRM) 15V
Forward Current (IF) 10A
Forward Voltage (VF @ 10A) 0.38V
Reverse Leakage Current (IR @ VRRM) 3mA
Operating Temperature Range -40°C to +150°C
Package Type TO-252 (DPAK)

Applications:

Switching Power Supplies – Improves efficiency and reduces power loss.
DC-DC Converters – Essential for low-voltage, high-current applications.
Battery Chargers – Used in fast-charging circuits for lower heat generation.
Polarity Protection – Prevents damage to sensitive electronic components.
Solar Power Systems – Used in blocking and bypass diodes to optimize energy flow.


Recommended Alternative: VS-10BQ015TRPBF Equivalent

🔹 VS-10BQ015-M3/5AT – Similar specifications, available in TO-252 package.
🔹 MBR1015 – 10A, 15V Schottky diode, widely used for rectification.
🔹 SS10P15S – Schottky rectifier diode, efficient for low-voltage applications.


Package Includes:

1 x VS-10BQ015TRPBF Schottky Barrier Rectifier
