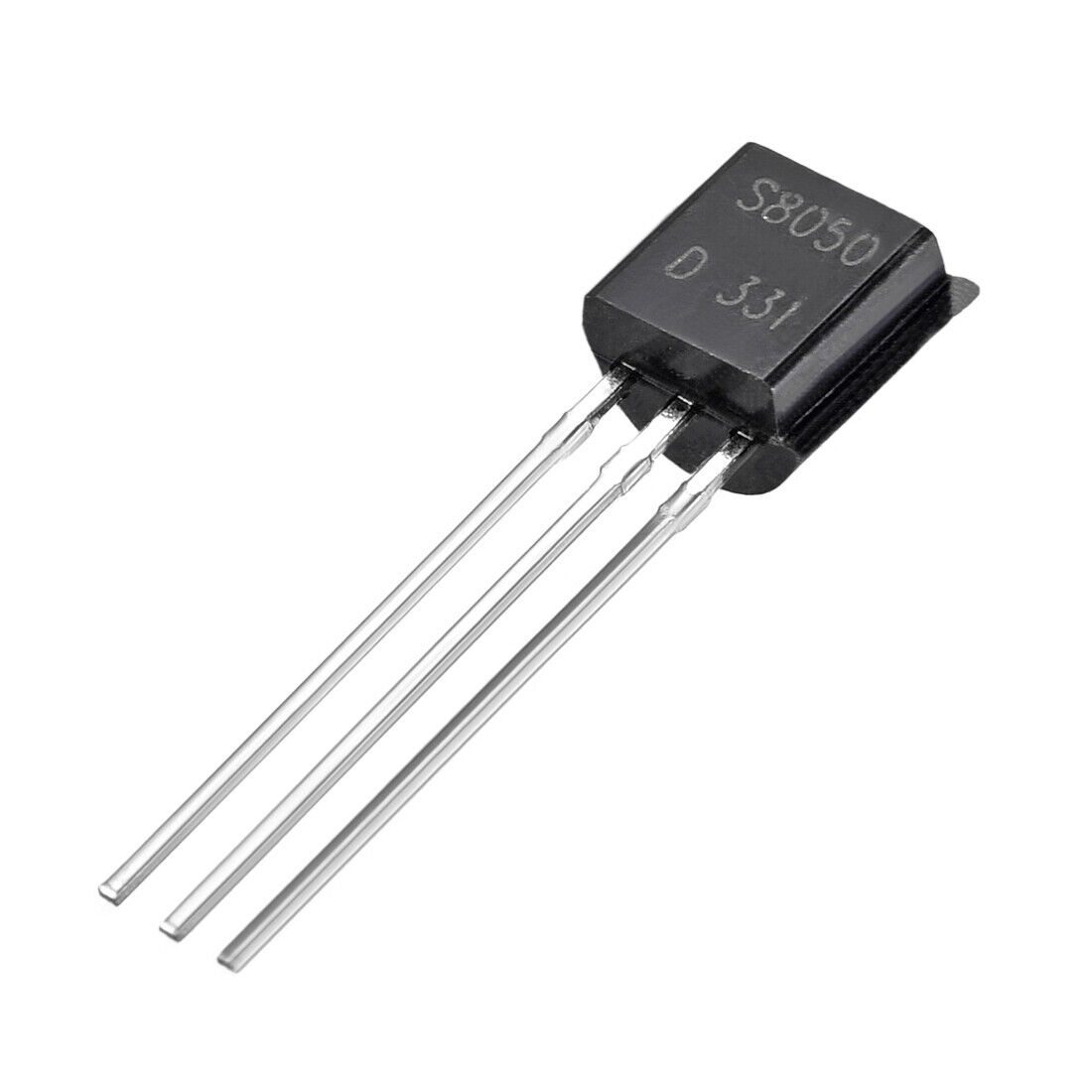

S8050 NPN Transistor (General-Purpose, 20V, 3A, TO-92)
Description: The S8050 NPN Transistor is a reliable and versatile component designed for general-purpose switching and amplification. With its robust current handling and compact TO-92 package, the S8050 is suitable for a variety of applications, from small signal processing to power switching tasks in electronic projects.
Features:
NPN Type: Suitable for general-purpose switching and amplification applications.
Maximum Collector-Emitter Voltage: 20V, ideal for low to moderate voltage circuits.
Maximum Collector Current: 3A, providing substantial current handling for various needs.
High Gain: Delivers high current gain (hFE) for efficient signal amplification.
Compact Package: TO-92 package ensures easy integration and mounting in circuit designs.
Low Saturation Voltage: Offers efficient performance with minimal voltage drop.
Specifications:
Type: NPN Bipolar Junction Transistor (BJT)
Collector-Emitter Voltage (Vceo): 20V
Collector-Base Voltage (Vcbo): 30V
Emitter-Base Voltage (Vebo): 5V
Collector Current (Ic): 3A
DC Current Gain (hFE): 60 to 300
Power Dissipation: 1.2W
Package Type: TO-92
Operating Temperature Range: -55°C to +150°C
Applications:
General-purpose switching
Signal amplification
Low-power audio and video equipment
Relay drivers
Power supply circuits
DIY electronics and prototyping
Package Includes:
1x S8050 NPN Transistor (TO-92)
