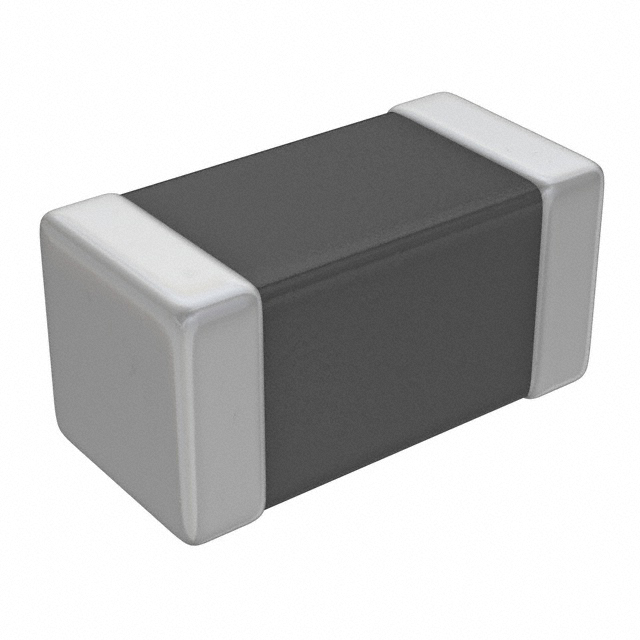

MPZ1608S601ATA00 Ferrite Bead

Description

MPZ1608S601ATA00 – Ferrite Bead for EMI Suppression

Product Overview:

The MPZ1608S601ATA00 is a surface-mount ferrite bead designed to provide effective electromagnetic interference (EMI) suppression in electronic circuits. It features a compact 0603 (1608 metric) package, making it ideal for high-density PCB designs. With a 600Ω impedance at 100MHz, it effectively reduces high-frequency noise while maintaining low DC resistance for minimal power loss.

---

Key Specifications:

• Impedance: 600Ω @ 100MHz
• DC Resistance (DCR): Max 0.3Ω
• Rated Current: 200mA
• Package Size: 0603 (1608 Metric) Surface Mount
• Operating Temperature Range: -55°C to +125°C
• Material Type: Multilayer Ferrite
• RoHS Compliant: Yes

---

Applications:

✔ Power Line Noise Suppression – Used in DC-DC converters, power supply circuits, and battery lines.
✔ Signal Line Filtering – Provides high-frequency noise suppression in data and communication lines.
✔ Consumer Electronics – Smartphones, tablets, laptops, and wearables for EMI control.
✔ Automotive Electronics – Ensures reliable performance in ECUs, infotainment, and sensor systems.
✔ Industrial Control Systems – Reduces unwanted high-frequency interference in automation and control devices.

---

Features & Benefits:

✔ 600Ω at 100MHz – High impedance for efficient noise filtering.
✔ Low DCR (0.3Ω max) – Minimizes power loss and voltage drop.
✔ Compact 0603 Package – Saves PCB space and enables high-density designs.
✔ Multilayer Ferrite Construction – Ensures stable performance over a wide frequency range.
✔ Wide Temperature Range (-55°C to +125°C) – Suitable for harsh environments.
