MJ2955 PNP Power Transistor

Description

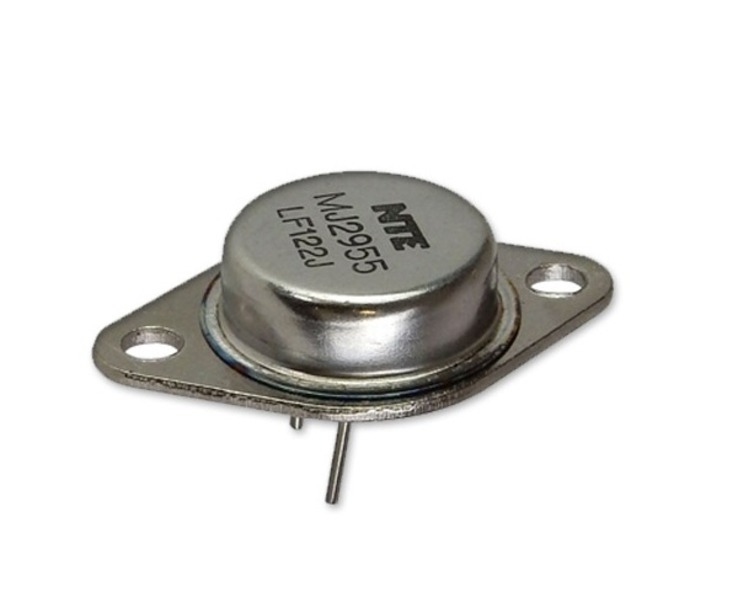

MJ2955 PNP Power Transistor

The MJ2955 is a high-power PNP bipolar junction transistor (BJT) commonly used in power amplification, voltage regulation, and switching applications. It is the complementary pair to the 2N3055 NPN transistor, making it ideal for push-pull amplifier circuits and other high-power applications.

Key Features:

• High Power Dissipation: Can handle up to 115W of power.
• High Voltage and Current Rating: Supports up to 60V collector-emitter voltage and 15A collector current.
• TO-3 Metal Package: Provides excellent heat dissipation and durability.
• Complementary Pair with 2N3055: Perfect for push-pull amplifier designs.
• Reliable and Durable: Used in both industrial and DIY electronics projects.

Specifications:

• Transistor Type: PNP
• Collector-Emitter Voltage (Vce): 60V
• Collector-Base Voltage (Vcb): 60V
• Emitter-Base Voltage (Veb): 7V
• Collector Current (Ic): 15A
• Power Dissipation (Ptot): 115W
• DC Current Gain (hFE): 20 – 70
• Package Type: TO-3 Metal Case

Applications:

• Audio Power Amplifiers: Commonly used in high-power amplifier circuits.
• Voltage Regulators: Ensures stable power delivery.
• Motor Control Circuits: Suitable for high-current motor driver applications.
• Switching Circuits: Ideal for high-power switching applications.

Package Includes:

• 1 x MJ2955 PNP Power Transistor

The MJ2955 is a high-performance transistor that is widely used in power amplifiers, voltage regulators, and motor control circuits. Its high power dissipation and robust TO-3 package make it a reliable choice for industrial and DIY electronic applications.
