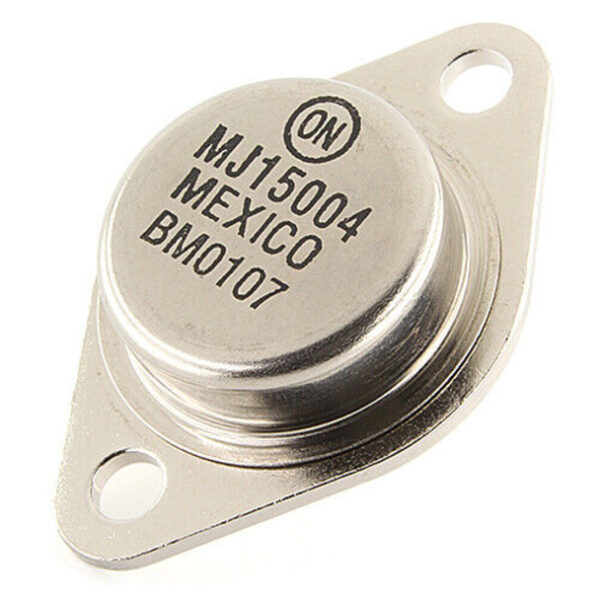

MJ15004 PNP Power Transistor

MJ15004 PNP Power Transistor

The MJ15004 is a high-performance PNP power transistor designed for use in high-power, audio amplification, industrial control circuits, and other high-current switching applications. With its high voltage rating and excellent thermal performance, the MJ15004 offers reliability and efficiency in demanding environments. It is ideal for use in class AB audio amplifiers, power supplies, and motor drive circuits.

Category:

Description

MJ15004 PNP Power Transistor

The MJ15004 is a high-performance PNP power transistor designed for use in high-power, audio amplification, industrial control circuits, and other high-current switching applications. With its high voltage rating and excellent thermal performance, the MJ15004 offers reliability and efficiency in demanding environments. It is ideal for use in class AB audio amplifiers, power supplies, and motor drive circuits.


Key Features:

High Voltage Rating: Rated for 120V Vce, making it suitable for high-power applications that require high voltage tolerance.
High Current Capacity: Supports continuous collector currents of up to 14A, ideal for power amplifiers and motor control circuits.
Low Saturation Voltage: Ensures efficient performance with low Vce(sat), minimizing heat dissipation.
Excellent Thermal Stability: Features high thermal performance for reliable operation under demanding conditions.
High Gain: Provides high current gain (hFE), allowing for efficient amplification with low drive requirements.


Specifications:

  • Type: PNP Power Transistor
  • Collector-Emitter Voltage (Vce): 120V
  • Continuous Collector Current (Ic): 14A
  • Emitter-Base Voltage (Veb): 5V
  • Collector Saturation Voltage (Vce(sat)): 1.5V (maximum)
  • DC Current Gain (hFE): 30 to 150 (at Ic = 4A, Vce = 10V)
  • Power Dissipation (Ptot): 150W
  • Operating Junction Temperature (Tj): -65°C to 150°C
  • Package Type: TO-3

Applications:

Audio Amplifiers: Ideal for high-fidelity audio amplifiers, including class AB audio power amplifiers, where low distortion and high power output are essential.
Motor Control: Suitable for motor drivers and power supplies that require efficient and reliable switching performance under high current loads.
Switching Power Supplies: Used in DC-DC converters and inverter circuits for high-efficiency power regulation and energy conversion.
Industrial Power Electronics: Commonly found in industrial control systems, switching circuits, and high-power electronic applications.


Package Includes:

  • 1 x MJ15004 PNP Power Transistor

The MJ15004 is a robust, high-performance PNP transistor, perfect for audio amplification and high-current switching applications. Its high voltage tolerance, large current handling capability, and excellent thermal performance make it a dependable choice for powering audio amplifiers, industrial motor controls, and power electronics.
