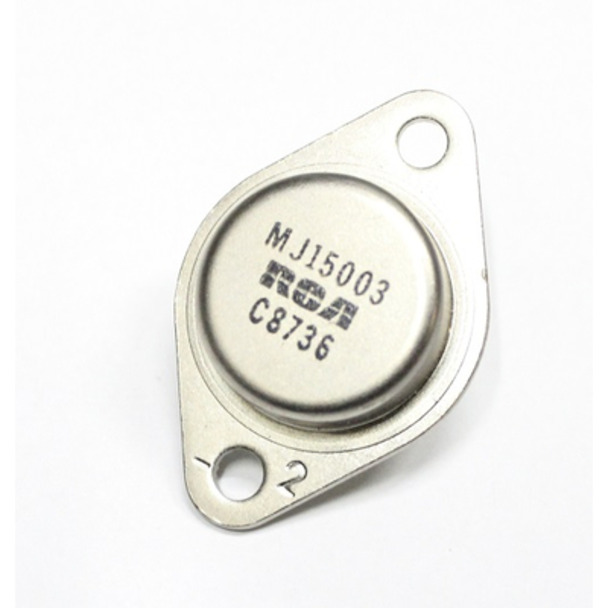

MJ15003 NPN Power Transistor

Description

MJ15003 NPN Power Transistor

The MJ15003 is a high-power NPN transistor designed for linear and switching applications, ideal for high-current power amplifiers, audio equipment, and motor control circuits. This transistor provides high efficiency, low saturation voltage, and excellent thermal performance, making it suitable for demanding applications.

Key Features:

✔ High Power Handling: Supports up to 140W of power dissipation.
✔ High Current Capability: Can handle up to 15A of continuous current.
✔ High Voltage Rating: Supports 200V Vce (collector-emitter voltage).
✔ Low Saturation Voltage: Provides efficient power transfer.
✔ TO-3 Package: Designed for effective heat dissipation in high-power applications.

Specifications:

• Transistor Type: NPN
• Collector-Emitter Voltage (Vce): 200V
• Collector-Base Voltage (Vcb): 200V
• Emitter-Base Voltage (Vbe): 5V
• Continuous Collector Current (Ic): 15A
• Power Dissipation (Pd): 140W
• DC Current Gain (hFE): 30 to 150 (at Ic = 4A, Vce = 10V)
• Gain Bandwidth Product (ft): 4MHz
• Operating Temperature: -65°C to +200°C
• Package Type: TO-3

Applications:

✔ High-Power Audio Amplifiers: Widely used in the output stage of high-power amplifiers for audio equipment.
✔ Motor Control: Ideal for controlling high-power DC motors in industrial and automation applications.
✔ Switching Power Supplies: Suitable for use in high-current switching applications like DC-DC converters and power supplies.
✔ Signal Amplification: Used in linear amplifier circuits for communications and industrial systems.
✔ Power Regulators: Utilized in voltage regulation circuits for high-power systems.

Package Includes:

• 1 x MJ15003 NPN Power Transistor

The MJ15003 is a robust, high-power NPN transistor that offers outstanding performance for high-current applications, especially in audio amplification, motor control, and power regulation circuits. Its low saturation voltage and high thermal capacity make it a great choice for demanding tasks in various electronic systems.
