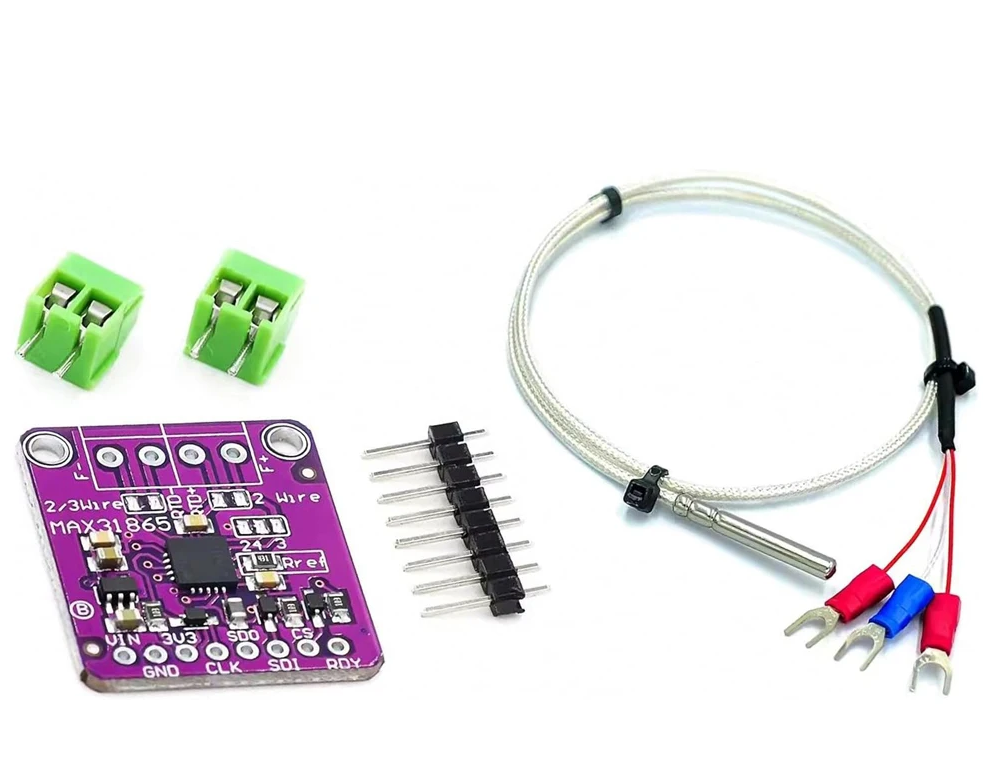

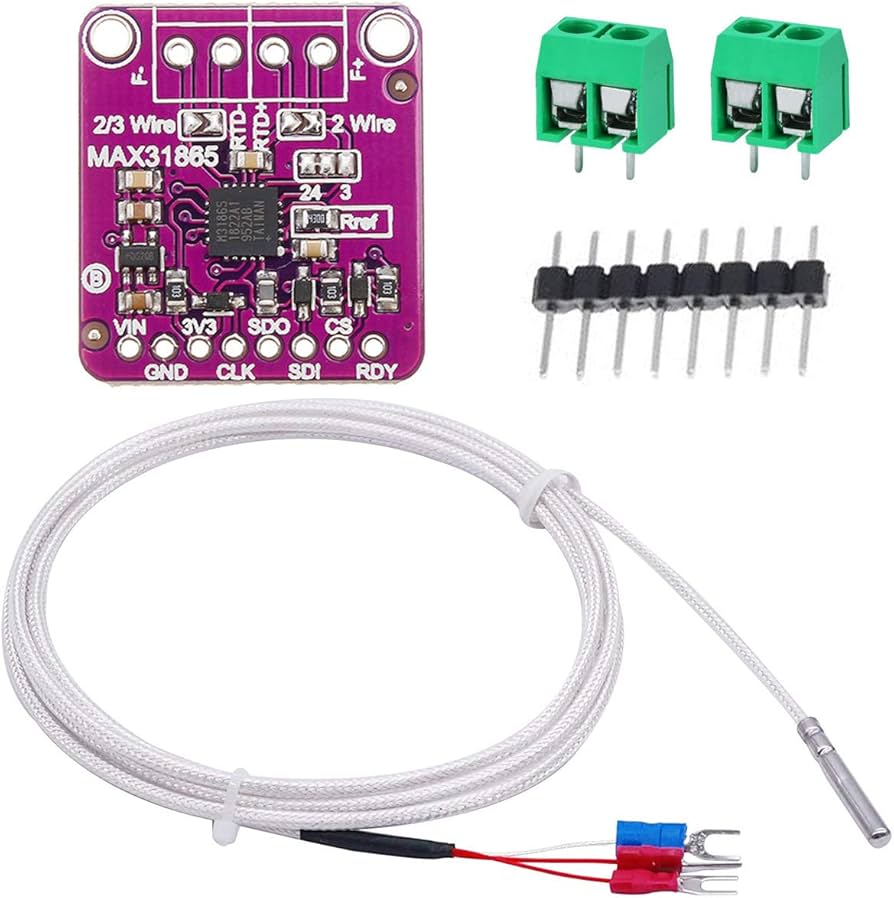

MAX31865 RTD-to-Digital Converter Module
The MAX31865 Module is a precision RTD-to-Digital converter designed for interfacing with PT100 or PT1000 RTD (Resistance Temperature Detectors). It simplifies the process of temperature measurement with high accuracy and reliability, making it ideal for applications requiring precise temperature control and monitoring.
Key Features:
- Wide RTD Compatibility: Supports 2-wire, 3-wire, and 4-wire RTD configurations for flexible use.
- High Accuracy: Enables accurate temperature measurement with a built-in precision ADC.
- Digital Interface: Uses SPI (Serial Peripheral Interface) for communication with microcontrollers like Arduino, Raspberry Pi, and ESP boards.
- Fault Detection: Includes built-in fault detection for open and shorted RTD wires.
- Adjustable Reference Resistor: Features configurable settings for different RTD types, such as PT100 or PT1000.
- Temperature Range: Measures a wide range of temperatures depending on the RTD used.
- Compact Module: Small form factor for easy integration into various projects.
Specifications:
- Operating Voltage: 3.3V or 5V (logic level compatible)
- RTD Compatibility: PT100, PT1000
- Interface Protocol: SPI (4-wire)
- Temperature Resolution: High-precision readings based on RTD resistance values
- Fault Detection: Built-in diagnostics for detecting wiring issues
- Module Dimensions: Compact PCB design for easy embedding
Applications:
- Industrial Temperature Monitoring: Use in automation systems to monitor and regulate temperature.
- Home Appliances: Embedded in devices like ovens, HVAC systems, and more for precise temperature control.
- Laboratory Equipment: Suitable for scientific applications requiring high-accuracy temperature measurements.
- IoT Devices: Monitor environmental conditions in smart systems.
- Data Logging: Record temperature over time for research or industrial purposes.
Advantages:
- Ease of Use: Pre-built libraries for Arduino and other platforms simplify setup and integration.
- Versatility: Compatible with various RTD types and configurations.
- Precision: Offers stable and reliable temperature readings with minimal drift.
- Compact and Lightweight: Perfect for space-constrained applications.
The MAX31865 RTD-to-Digital Converter Module is the ideal solution for high-accuracy temperature sensing projects. Whether you’re developing an industrial monitoring system or a DIY temperature-controlled application, this module delivers consistent and reliable performance.
