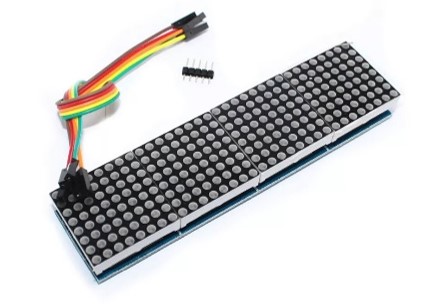

MAX 8X32 LED MATRIX (4 in 1 Dot Matrix LED Display)

Overview

The MAX 8x32 LED Matrix (4 in 1 Dot Matrix LED Display) is a versatile and compact LED display module, perfect for creating dynamic displays in various projects. This module features a 8x32 grid of LEDs arranged into 4 individual 8x8 matrices, which can be controlled to display custom patterns, scrolling text, or other visual effects. It's ideal for DIY projects, interactive displays, and real-time data presentation.

---

Key Features:

• High-Resolution Display: Consists of 4 separate 8x8 LED matrices, offering a total of 32x8 pixels for clear and detailed text or graphic displays.
• Bright and Vibrant: Each LED in the matrix is bright and capable of creating vivid displays, making it suitable for indoor signage, message boards, and more.
• Compact and Easy to Use: The 4-in-1 design combines four 8x8 LED matrices, which are easy to interface with microcontrollers like Arduino, ESP32, or Raspberry Pi.
• Adjustable Brightness: The LED matrix allows you to control the brightness levels for different lighting environments.
• Multiple Control Options: Supports both serial and parallel data communication, enabling flexible interfacing options with various microcontrollers.
• Wide Application: Perfect for creating scrolling text, clocks, weather updates, digital signage, and other visual effects.

---

Specifications:

• Matrix Size: 8x32 pixels (4 individual 8x8 matrices)
• LED Type: Red, Green, Blue, or RGB (depending on the model)
• Control IC: MAX7219 or similar driver IC for easy control via serial communication (SPI).
• Operating Voltage: Typically 5V
• Interface: SPI (Serial Peripheral Interface) for simple connection to microcontrollers (e.g., Arduino, ESP32, Raspberry Pi)
• Control Pins: Includes VCC, GND, Data, Clock, and Load pins for easy integration.
• Dimensions: Compact and suitable for use in tight spaces in various applications.

---

Applications:

• Digital Signage: Create large, bright, and customizable signs for real-time updates or advertisements.
• LED Clocks: Display time in a scrolling or stationary format, with adjustable brightness for day/night use.
• Message Boards: Create custom scrolling or static text messages for various uses such as displaying news, reminders, or notifications.
• Interactive Projects: Use for interactive installations or feedback systems, where text and simple graphics need to be displayed dynamically.
• DIY Displays: Ideal for hobbyists and makers building LED projects such as sports scoreboards, data visualizations, or information panels.

---

Package Includes:

• 1 x MAX 8x32 LED Matrix (4 in 1 Dot Matrix LED Display)
• 1 x Jumper Wires or Connectors (optional depending on the supplier)
• 1 x User Manual (if available)
