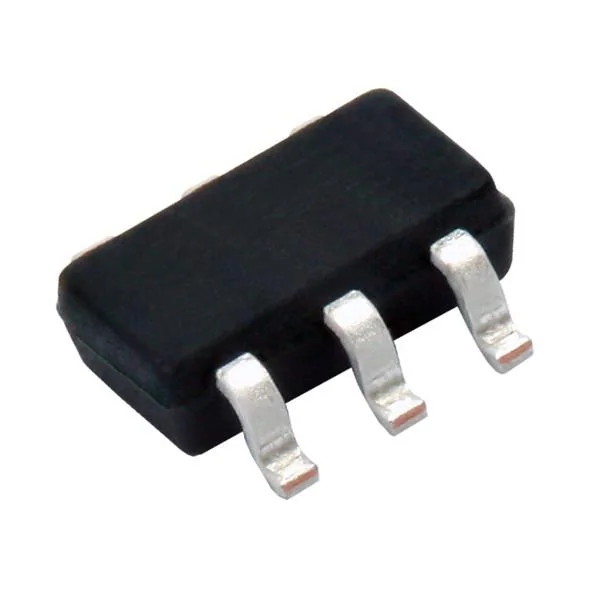

IRLM6802TRPBF – MOSFET Overview
The IRLM6802TRPBF is an N-Channel MOSFET designed for low-voltage, high-efficiency switching applications. It features low RDS(on) for improved efficiency and fast switching performance, making it ideal for DC-DC converters, load switching, and power management circuits.
Key Features:
Low On-Resistance (RDS(on)) – Reduces power loss and heat dissipation. Fast Switching Speed – Ideal for high-efficiency circuits. Logic-Level Gate Drive – Can be driven directly by MCUs and logic circuits. Compact SOT-23 Package – Suitable for space-constrained designs. Pb-Free & RoHS Compliant – Environmentally friendly.
Technical Specifications:
| Parameter | Value |
|---|---|
| MOSFET Type | N-Channel |
| Drain-Source Voltage (VDS) | 30V |
| Continuous Drain Current (ID) @ 25°C | 5.8A |
| Gate Threshold Voltage (VGSth) | 0.7V – 1.5V |
| RDS(on) @ VGS = 4.5V | 13.5mΩ |
| RDS(on) @ VGS = 2.5V | 18mΩ |
| Total Gate Charge (Qg) | 8.7nC |
| Power Dissipation (Pd) | 1.4W |
| Operating Temperature | -55°C to +150°C |
| Package Type | SOT-23 |
Applications:
Power Management – Used in voltage regulators and DC-DC converters. Load Switching – Efficient for battery-powered applications. Motor Drivers – Controls low-power motors efficiently. LED Drivers – Used in brightness control and switching circuits. Portable Devices – Suitable for smartphones, tablets, and wearables.
Recommended Alternatives:
IRLML6344TRPBF – Similar logic-level MOSFET, slightly lower current rating. BSS138 – Lower power alternative for low-current switching applications. Si2302 – Common low-voltage MOSFET for small electronics.
Package Includes:
1 x IRLM6802TRPBF N-Channel MOSFET
