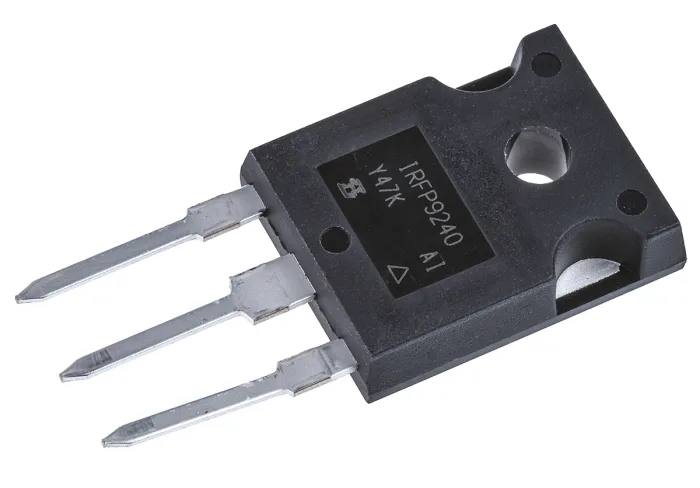

IRFP9240 P-Channel MOSFET
The IRFP9240 is a P-channel MOSFET that is ideal for use in high-power applications such as motor control, switching power supplies, and amplifiers. It offers high voltage tolerance, low Rds(on) for efficient performance, and excellent thermal stability, making it suitable for demanding power electronics circuits.
Key Features:
✔ High Voltage Rating: Rated for 200V drain-source voltage, suitable for high-voltage applications.
✔ Low Rds(on): Very low on-resistance, resulting in efficient power delivery with minimal heat generation.
✔ High Current Handling: Capable of handling up to 20A of continuous drain current, ideal for power-switching applications.
✔ Fast Switching: Offers low gate charge, enabling fast switching speeds, which are critical for high-frequency circuits.
✔ Thermal Stability: Excellent thermal performance, with a junction temperature range from -55°C to 150°C, ensuring stable operation in high-power environments.
Specifications:
- Type: P-channel MOSFET
- Drain-Source Voltage (Vds): 200V
- Continuous Drain Current (Id): 20A
- Gate-Source Voltage (Vgs): ±20V
- On-Resistance (Rds(on)): 0.04Ω (at Vgs = -10V)
- Total Gate Charge (Qg): 80nC (at Vds = 100V)
- Power Dissipation (Pd): 150W
- Operating Junction Temperature (Tj): -55°C to 150°C
- Package Type: TO-220
Applications:
✔ Motor Control Circuits: Suitable for motor drivers and inverters, handling high-current loads efficiently.
✔ Power Switching: Ideal for use in DC-DC converters, boost converters, power amplifiers, and voltage regulators.
✔ Switching Power Supplies: Can be used in switch-mode power supplies (SMPS), solar power systems, and UPS circuits.
✔ Audio Amplifiers: Perfect for class D audio amplifiers where efficient power control is critical.
✔ Automotive Applications: Suitable for automotive electronics and battery management systems due to its high power handling capacity.
Package Includes:
- 1 x IRFP9240 P-Channel MOSFET
The IRFP9240 is a high-performance P-channel MOSFET that excels in high-power applications, with its low Rds(on), high current capability, and excellent voltage tolerance. It is an ideal choice for motor control, power supply switching, and high-efficiency amplification in a wide range of industrial, automotive, and consumer electronics applications.
