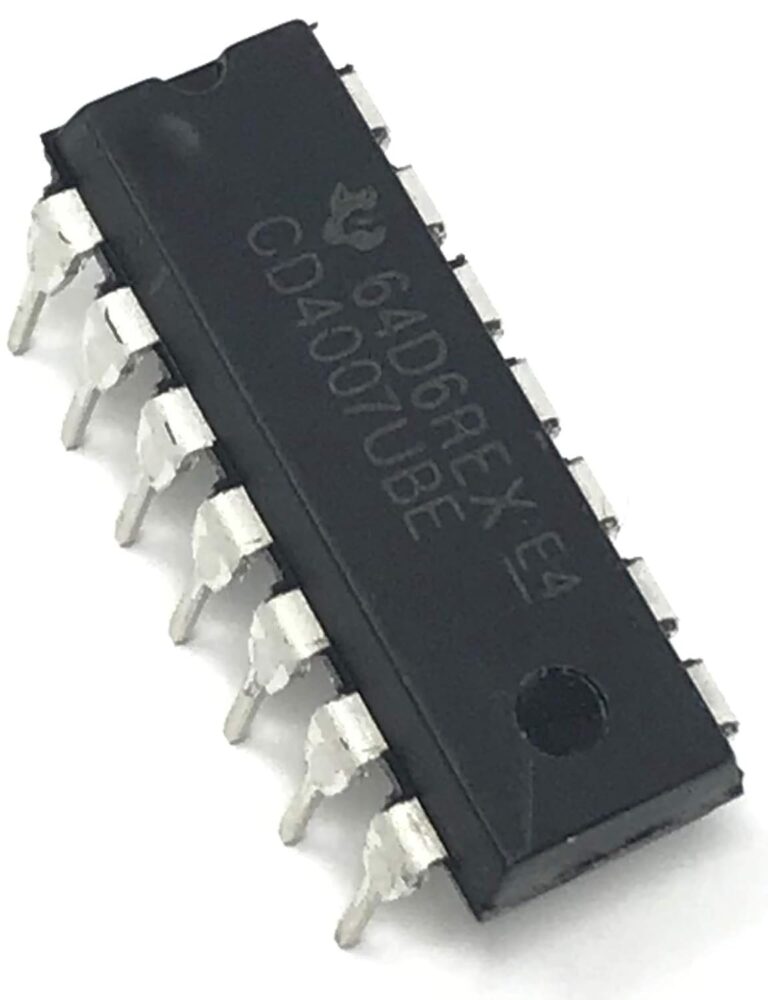

CD4007UBE

5.00

CD4007UBE – Dual Complementary Pair Plus Inverter

Product Overview:

The CD4007UBE is a CMOS Dual Complementary Pair Plus Inverter from the 4000-series logic family. It consists of three independent CMOS transistor pairs, which can be used as inverters, amplifiers, analog switches, or discrete transistors in digital and analog applications. Its high noise immunity, low power consumption, and wide operating voltage range make it a versatile choice for many circuit designs.

2 in stock

Category:

Description

CD4007UBE – Dual Complementary Pair Plus Inverter

Product Overview:

The CD4007UBE is a CMOS Dual Complementary Pair Plus Inverter from the 4000-series logic family. It consists of three independent CMOS transistor pairs, which can be used as inverters, amplifiers, analog switches, or discrete transistors in digital and analog applications. Its high noise immunity, low power consumption, and wide operating voltage range make it a versatile choice for many circuit designs.


Key Specifications:

  • Logic Family: 4000-Series CMOS
  • Supply Voltage (VDD): 3V to 18V
  • Maximum Input Voltage: -0.5V to VDD + 0.5V
  • Propagation Delay: 125 ns at 5V
  • Output Drive Current: 6.8mA (sink) / -6.8mA (source) at 5V
  • Power Dissipation: 700mW (max)
  • Operating Temperature Range: -55°C to +125°C
  • Package Type: DIP-14, SOIC-14

Applications:

Logic Gates & Inverters – Can be used as NOT, NAND, NOR, and other logic functions.
Analog Signal Processing – Functions as amplifiers or level shifters.
Switching Applications – Used in power switching and digital logic interfacing.
Oscillators & Waveform Generators – Commonly found in timing circuits and oscillators.
Discrete Transistor Applications – Operates as MOSFETs in custom circuit designs.


Features & Benefits:

Wide Supply Voltage Range (3V – 18V) – Works with low- and high-voltage applications.
Low Power Consumption – Ideal for battery-powered devices.
Versatile Configuration – Can function as logic gates, switches, or amplifiers.
High Noise Immunity – Ensures stable performance in noisy environments.
Compatible with 4000-Series CMOS Logic – Can be used in existing CMOS circuits.


Equivalent & Alternative Parts:

  • CD40106Hex Schmitt Trigger Inverter (for logic and oscillator applications).
  • CD4049UBEHex Inverter with High Current Drive.
  • CD4069UBEHex Inverter with General Logic Functionality.
