Product Overview

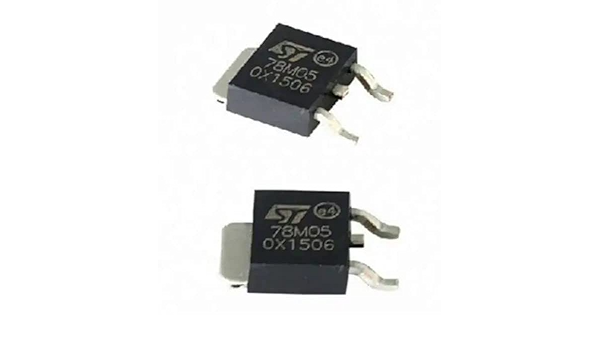

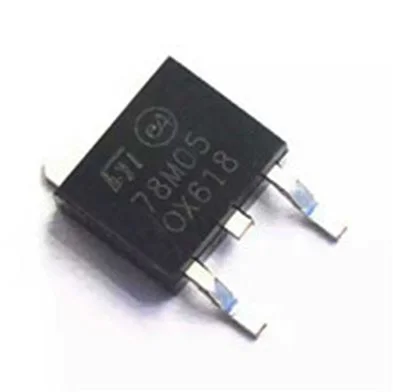

The 78M05 SMD Voltage Regulator is a reliable and compact 5V voltage regulator ideal for stable power supply in electronic circuits. This SMD version of the popular 7805 regulator provides a consistent 5V output from a higher input voltage, making it perfect for compact, low-power applications in surface-mount designs.
Specifications
- Output Voltage: 5V (fixed)
- Input Voltage Range: 7V to 35V
- Maximum Output Current: 500mA
- Dropout Voltage: ~2V, suitable for input voltages above 7V
- Package Type: SMD (TO-252), compact for space-constrained designs
- Thermal Protection: Integrated to prevent overheating
Key Features
- Stable 5V Output: Provides a consistent 5V output for powering microcontrollers, sensors, and other 5V devices
- Compact SMD Package: Ideal for space-sensitive applications, minimizing PCB footprint
- Thermal and Short-Circuit Protection: Protects the circuit from overheating or excessive current
- High Efficiency: Suitable for low-power devices and battery-operated systems
Applications
- Power Supply Regulation: Regulates voltage for microcontroller-based systems
- Embedded Electronics: Ideal for powering 5V circuits in compact designs
- Portable Devices: Stable power source for battery-operated devices
- IoT Projects: Powers sensors and low-power devices in Internet of Things applications
Why Choose the 78M05 SMD Voltage Regulator?
This 78M05 voltage regulator provides a simple, compact solution for 5V power regulation in surface-mounted designs. With its stable output and integrated protections, it ensures reliable operation across various applications.
