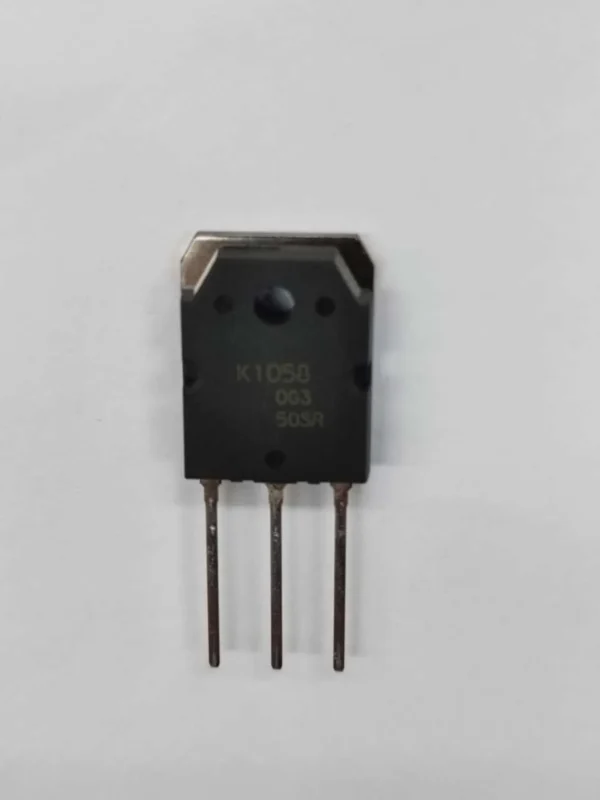

2SK1058 N-channel MOSFET

2SK1058 N-channel MOSFET

The 2SK1058 is a high-performance N-channel MOSFET designed for audio amplifiers, power supplies, and motor control applications. With its low Rds(on) and high voltage rating, it is ideal for switching high currents efficiently in high-power and high-speed circuits. This MOSFET is widely used in audio amplification, DC-DC converters, and power electronics.

Category:

Description

2SK1058 N-channel MOSFET

The 2SK1058 is a high-performance N-channel MOSFET designed for audio amplifiers, power supplies, and motor control applications. With its low Rds(on) and high voltage rating, it is ideal for switching high currents efficiently in high-power and high-speed circuits. This MOSFET is widely used in audio amplification, DC-DC converters, and power electronics.


Key Features:

High Voltage Rating: Supports a drain-source voltage of up to 150V, making it suitable for medium- to high-voltage applications.
Low Rds(on): Offers low on-state resistance for reduced power loss and better efficiency.
High Current Handling: Capable of handling up to 20A of continuous current.
Fast Switching Speed: Suitable for high-speed switching applications like audio amplifiers and power converters.
High Power Dissipation: Designed to handle large amounts of power while maintaining thermal stability.


Specifications:

  • Type: N-channel MOSFET
  • Drain-Source Voltage (Vds): 150V
  • Continuous Drain Current (Id): 20A
  • Gate-Source Voltage (Vgs): ±20V
  • Rds(on) (Drain-Source Resistance): 0.02Ω (at Vgs = 10V, Id = 10A)
  • Gate Threshold Voltage (Vgs(th)): 1-3V
  • Total Gate Charge (Qg): 120nC
  • Power Dissipation (Pd): 150W
  • Package Type: TO-3P

Applications:

Audio Amplifiers: Commonly used in high-power audio amplifiers to achieve high performance with minimal distortion.
Motor Control: Suitable for DC motor drivers, stepper motors, and other motor control applications due to its high current handling capability.
Power Supplies: Ideal for DC-DC converters, switching power supplies, and voltage regulation systems.
Inverters: Used in solar inverters, UPS systems, and other power electronics requiring efficient power switching.
Class D Audio Amplifiers: Frequently used in Class D amplifiers for high-efficiency audio signal processing.


Package Includes:

  • 1 x 2SK1058 N-channel MOSFET

The 2SK1058 is a high-performance N-channel MOSFET offering low power loss, high current handling, and fast switching speeds, making it ideal for high-power audio amplification, motor control, and DC-DC conversion applications. With its excellent thermal management and efficiency, it is an excellent choice for demanding audio and power electronics projects.
