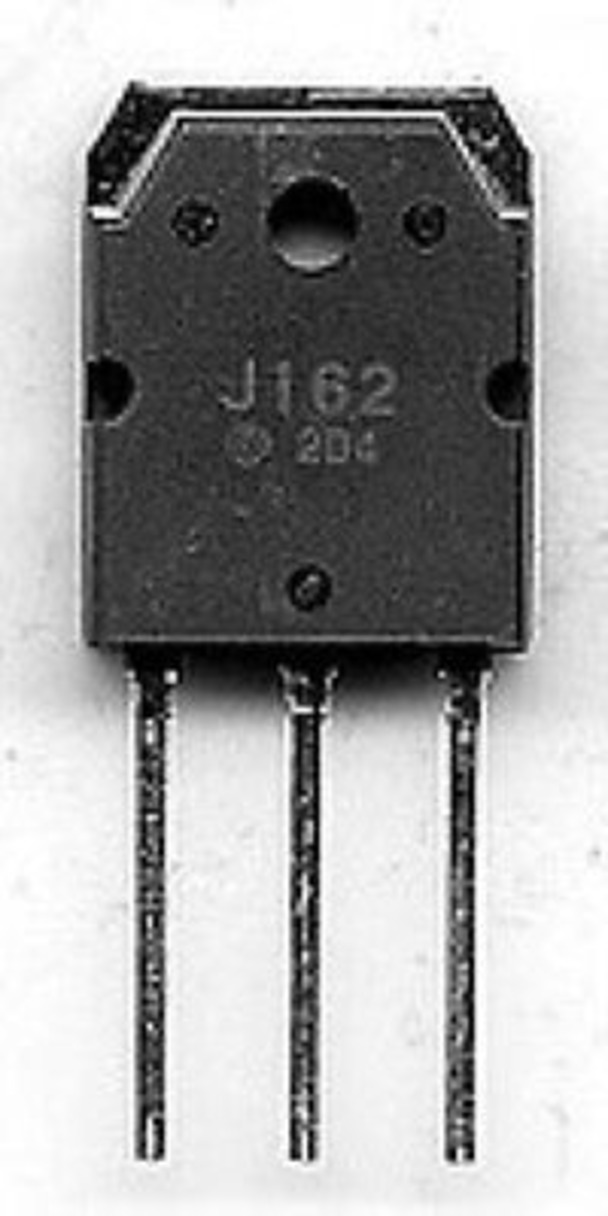

2SJ162 P-Channel MOSFET

2SJ162 P-Channel MOSFET

The 2SJ162 is a P-channel MOSFET designed for high-power applications, offering low on-resistance, high voltage handling, and excellent switching characteristics. It is particularly suitable for use in power amplifiers, power management circuits, and motor control systems, where efficient power delivery and reliability are crucial.

Category:

Description

2SJ162 P-Channel MOSFET

The 2SJ162 is a P-channel MOSFET designed for high-power applications, offering low on-resistance, high voltage handling, and excellent switching characteristics. It is particularly suitable for use in power amplifiers, power management circuits, and motor control systems, where efficient power delivery and reliability are crucial.


Key Features:

High Voltage Rating: Capable of withstanding -160V of drain-source voltage, making it ideal for high-voltage switching applications.
Low On-Resistance: Offers low Rds(on), which improves power efficiency and reduces heat dissipation during operation.
High Current Capability: Can handle up to -16A of continuous drain current, suitable for applications requiring significant power.
Fast Switching: Provides high-speed switching due to its low gate charge, ensuring efficient operation in dynamic circuits.
Thermal Stability: Excellent thermal performance, with a wide operating temperature range, allowing for stable operation in demanding environments.


Specifications:

  • Type: P-channel MOSFET
  • Drain-Source Voltage (Vds): -160V
  • Continuous Drain Current (Id): -16A
  • Gate-Source Voltage (Vgs): ±20V
  • On-Resistance (Rds(on)): 0.1Ω (max)
  • Gate Charge (Qg): 70nC (typ)
  • Power Dissipation (Pd): 150W
  • Operating Junction Temperature (Tj): -55°C to 150°C
  • Package Type: TO-3P

Applications:

Power Amplifiers: Ideal for high-power audio amplifiers where high efficiency and low heat dissipation are essential.
Motor Control: Used in DC motor drivers and inverter circuits, allowing precise control of motor speed and direction.
Switching Power Supplies: Perfect for use in DC-DC converters, buck converters, and boost converters, where high voltage and efficient switching are required.
Power Management: Suitable for battery-powered systems, solar power applications, and uninterruptible power supplies (UPS).
Automotive Systems: Often used in automotive power control systems such as electric vehicles (EV) or electric scooters due to its high power handling capacity.


Package Includes:

  • 1 x 2SJ162 P-Channel MOSFET

The 2SJ162 is a high-performance P-channel MOSFET that delivers low on-resistance, high current capacity, and excellent thermal stability, making it a great choice for motor control, power amplifiers, and high-efficiency switching power supplies. It is well-suited for use in both industrial and consumer electronics requiring reliable power management and efficient operation.
