2SC5200 NPN Power Transistor

Description

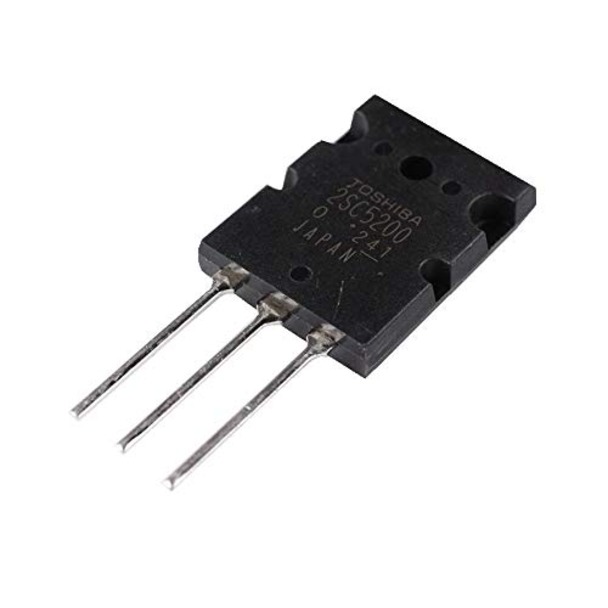

2SC5200 NPN Power Transistor

The 2SC5200 is a high-power NPN transistor widely used in audio amplifier circuits, power switching applications, and motor control systems. It is known for its high current capacity, low distortion, and excellent heat dissipation, making it a preferred choice for high-fidelity audio applications.

Key Features:

• High Power Output: Supports up to 15A collector current.
• High Voltage Rating: Can operate at up to 230V.
• Low Harmonic Distortion: Ensures clean audio amplification.
• TO-3P Package: Provides efficient heat dissipation for stable performance.
• Complementary Pair: Works well with 2SA1943 (PNP) for push-pull amplifier designs.

Specifications:

• Transistor Type: NPN
• Collector-Emitter Voltage (Vce): 230V
• Collector Current (Ic): 15A
• Power Dissipation (Pc): 150W
• Current Gain (hFE): 55 (min) – 160 (max)
• Package Type: TO-3P

Applications:

• Audio Power Amplifiers: Used in high-power stereo and Hi-Fi audio systems.
• Power Supply Circuits: Ideal for voltage regulation and switching applications.
• Motor Control: Suitable for DC motor drivers and industrial control systems.
• High-Current Switching: Used in various industrial and electronic applications.

Package Includes:

• 1 x 2SC5200 NPN Power Transistor

The 2SC5200, often used in combination with the 2SA1943, is a high-performance transistor designed for demanding power applications. Its low distortion, high reliability, and strong output capabilities make it a popular choice in professional and consumer audio equipment.
