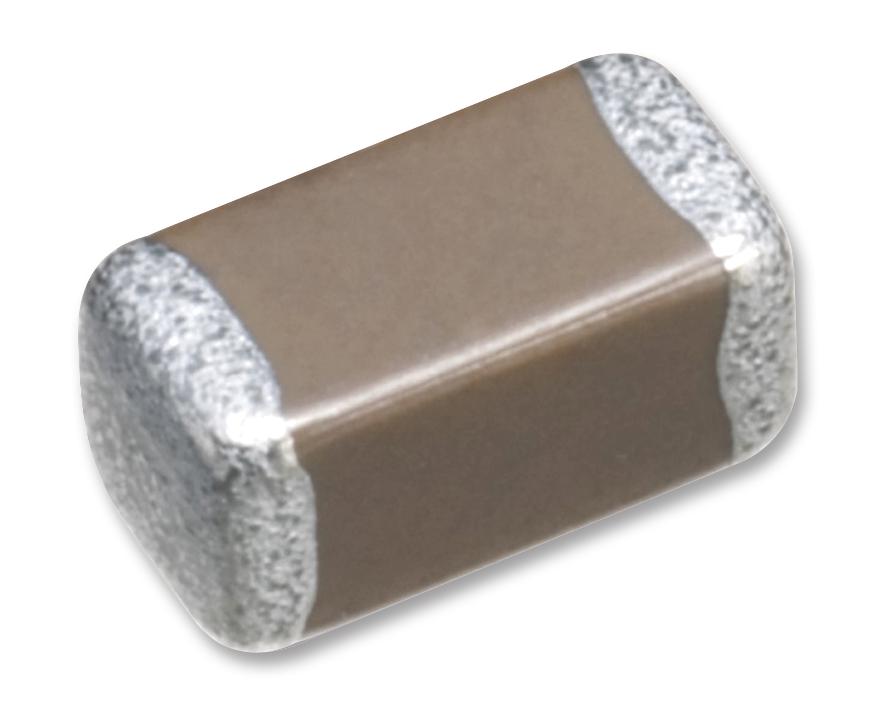

SMD Capacitor – 0.1µF, 50V, 10%, 0402
Product Overview:
This 0.1µF (100nF) surface-mount ceramic capacitor is a widely used passive component in electronic circuits for decoupling, filtering, and noise suppression. With a 50V DC rating and ±10% tolerance, it is designed for reliable performance in various applications, including power supplies, signal processing, and high-frequency circuits. The 0402 (1005 metric) package allows for compact PCB design while maintaining effective capacitance.
Key Specifications:
- Capacitance: 0.1µF (100nF)
- Voltage Rating: 50V DC
- Tolerance: ±10%
- Dielectric Type: X7R / X5R (varies by manufacturer)
- ESR (Equivalent Series Resistance): Low ESR for high-frequency applications
- Package Size: 0402 (1005 metric)
- Operating Temperature Range: -55°C to +125°C
- Mounting Type: Surface Mount (SMD / SMT)
- RoHS Compliant: Yes
Applications:
✔ Decoupling & Bypass Capacitor: Helps stabilize voltage levels by filtering out noise and transient spikes in power lines.
✔ Power Supply Filtering: Used in voltage regulators, DC-DC converters, and battery-powered devices.
✔ High-Frequency Signal Coupling: Essential in RF circuits, audio, and communication systems.
✔ Microcontrollers & Digital Circuits: Provides stable voltage and prevents signal fluctuations.
✔ Automotive & Industrial Electronics: Designed for reliability in harsh operating conditions.
Features & Benefits:
✔ Compact 0402 Size: Ideal for space-constrained designs and high-density PCB layouts.
✔ Stable X7R/X5R Dielectric: Maintains capacitance with minimal variation over temperature and voltage changes.
✔ Low ESR & High Reliability: Ensures optimal performance in high-speed circuits.
✔ RoHS Compliant & Lead-Free: Suitable for environmentally friendly designs.
