Description
MG90S micro servo motor
Here’s a product listing for the MG90S Micro Servo Motor:

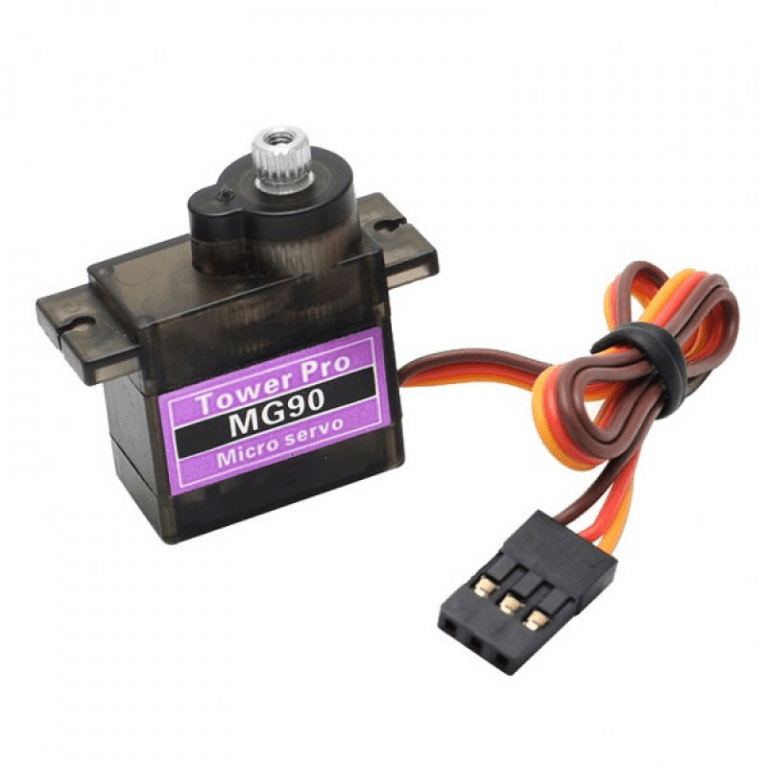

MG90S Micro Servo Motor
Product Overview:
The MG90S Micro Servo Motor is a compact and high-performance servo designed for precision control in small-scale robotics and electronics projects. Known for its durability and strong torque, this servo motor is ideal for applications such as robotics, remote-controlled vehicles, and other projects requiring precise movement in a small form factor.
Key Features:
Torque: 2.2 kg-cm (30.5 oz-in) at 4.8V
Operating Voltage: 4.8V to 6.0V DC
Speed: 0.10 sec/60° at 4.8V
Gear Type: Metal gears for enhanced durability and reliability
Motor Type: Coreless motor for smooth operation
Control Angle: 180 degrees
Bearing Type: Dual ball bearings for smooth movement
Dimensions: 22.8mm x 12.2mm x 28.5mm
Weight: 13.5 grams
Connector: 3-pin JST connector
Mounting: Includes standard mounting hardware and servo horn
Applications:
Robotics
Remote-Controlled Vehicles (RC Cars, Boats, Aircraft)
DIY Electronics Projects
Mechanical Arms
Camera Gimbals
Small-Scale Automation
Package Includes:
1 x MG90S Micro Servo Motor
1 x Servo Horn
1 x Set of Mounting Hardware
Why Choose the MG90S Micro Servo Motor?
The MG90S Micro Servo Motor combines compact size with high performance, making it an excellent choice for applications where space is limited but precision and torque are required. Its metal gear construction ensures long-lasting durability, while the coreless motor provides smooth and efficient operation. Whether you’re building a robot or designing a small automation system, the MG90S delivers reliable and precise control.
