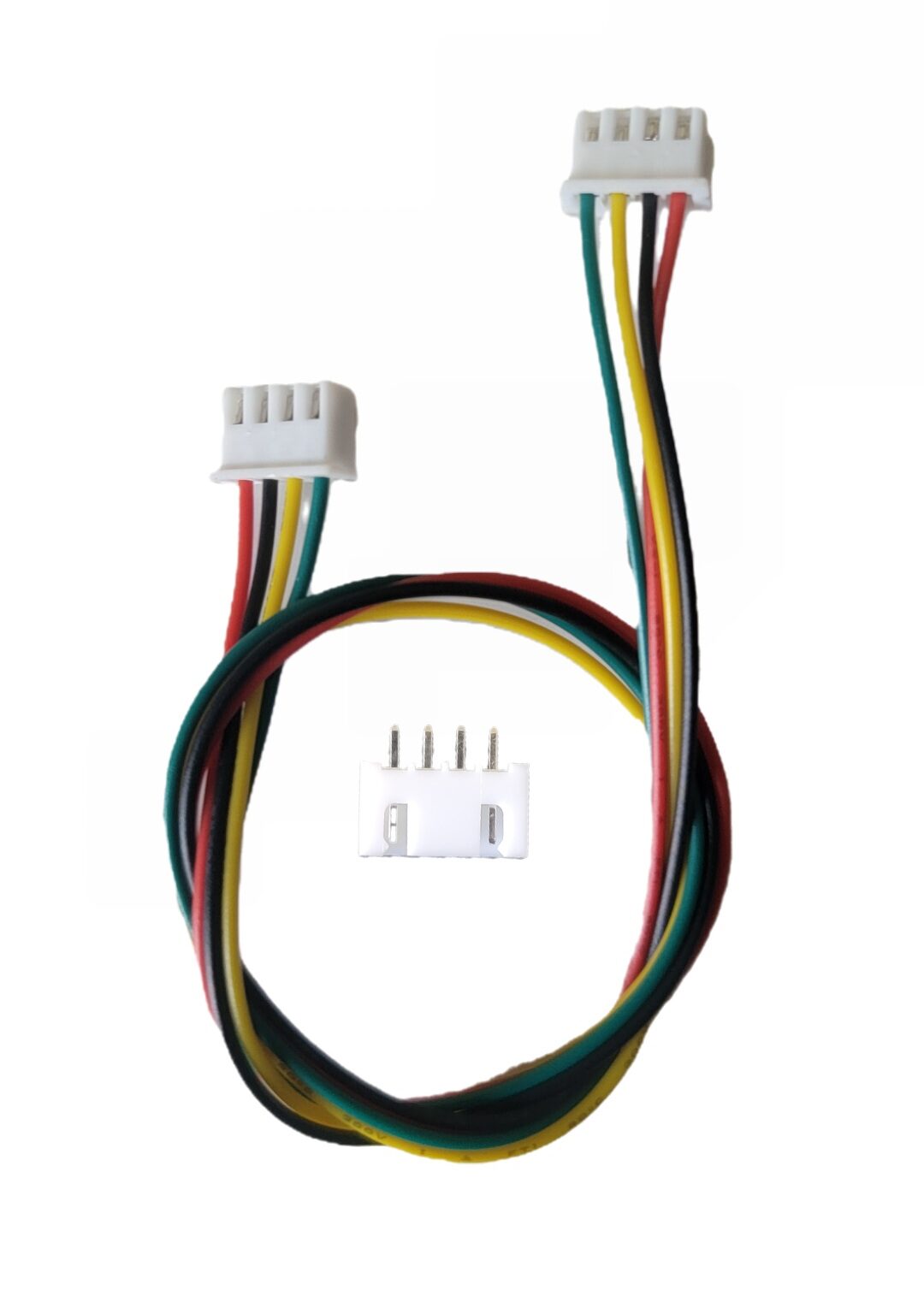

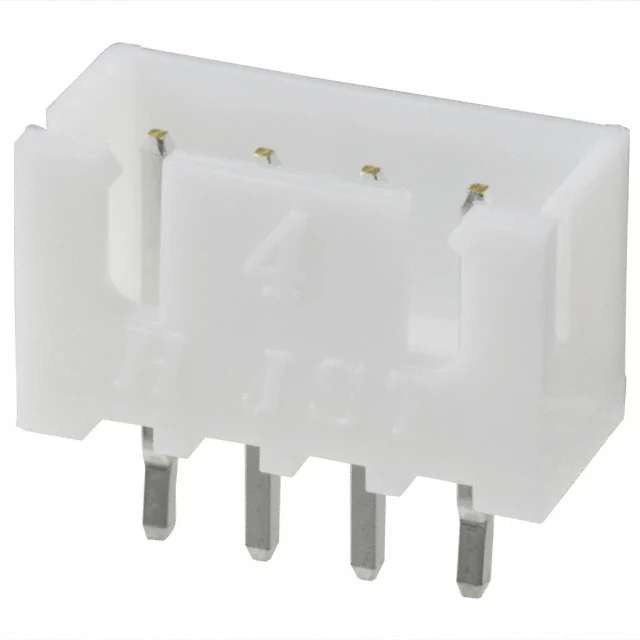

XHP-4 Connector

Overview

Product Overview The XHP-4 Connector is a 4-pin JST (Japan Solderless Terminal) connector designed for reliable and compact wire-to-board connections. Its secure and space-saving design is ideal for applications requiring stable electrical connections in various electronics, robotics, and DIY projects. Specifications

• Connector Type: JST XH Series, XHP-4 (4-pin)
• Pin Count: 4
• Pitch: 2.5mm
• Current Rating: 3A
• Voltage Rating: 250V AC/DC
• Material: Nylon 66 (UL 94V-0 rated for flammability)
• Contact Resistance: ≤ 20mΩ
• Operating Temperature: -25°C to +85°C
• Dimensions: Compact, space-efficient design

Key Features

• Secure Connection: Low contact resistance ensures reliable performance
• Compact Design: Suitable for tight spaces on PCBs and modules
• Easy to Use: Push-in installation for quick assembly
• Durable Construction: Made from quality materials for durability
• Versatile Application: Ideal for battery packs, LEDs, sensors, and small electronics

Applications

• Battery Connections: Common in lithium battery packs, RC, and robotics
• LED & Light Connections: Used in LED modules and lighting projects
• Sensor Connections: Reliable for small sensor and embedded systems
• DIY Electronics: Great for hobbyists and prototyping without soldering

Package Includes

• 1 x XHP-4 Connector (4-pin)

Additional Notes Works with 22-28 AWG wire, ideal for DIY connections. Use with compatible crimp terminals for optimal performance.
