78M05 SMD voltage regulator 5V

Overview

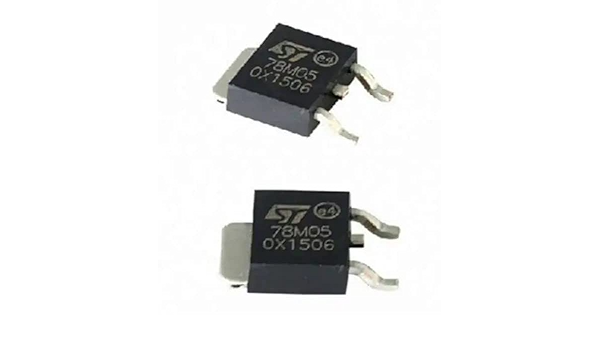

Product Overview The 78M05 SMD Voltage Regulator is a reliable and compact 5V voltage regulator ideal for stable power supply in electronic circuits. This SMD version of the popular 7805 regulator provides a consistent 5V output from a higher input voltage, making it perfect for compact, low-power applications in surface-mount designs. Specifications

• Output Voltage: 5V (fixed)
• Input Voltage Range: 7V to 35V
• Maximum Output Current: 500mA
• Dropout Voltage: ~2V, suitable for input voltages above 7V
• Package Type: SMD (TO-252), compact for space-constrained designs
• Thermal Protection: Integrated to prevent overheating

Key Features

• Stable 5V Output: Provides a consistent 5V output for powering microcontrollers, sensors, and other 5V devices
• Compact SMD Package: Ideal for space-sensitive applications, minimizing PCB footprint
• Thermal and Short-Circuit Protection: Protects the circuit from overheating or excessive current
• High Efficiency: Suitable for low-power devices and battery-operated systems

Applications

• Power Supply Regulation: Regulates voltage for microcontroller-based systems
• Embedded Electronics: Ideal for powering 5V circuits in compact designs
• Portable Devices: Stable power source for battery-operated devices
• IoT Projects: Powers sensors and low-power devices in Internet of Things applications

Why Choose the 78M05 SMD Voltage Regulator? This 78M05 voltage regulator provides a simple, compact solution for 5V power regulation in surface-mounted designs. With its stable output and integrated protections, it ensures reliable operation across various applications.
