Description

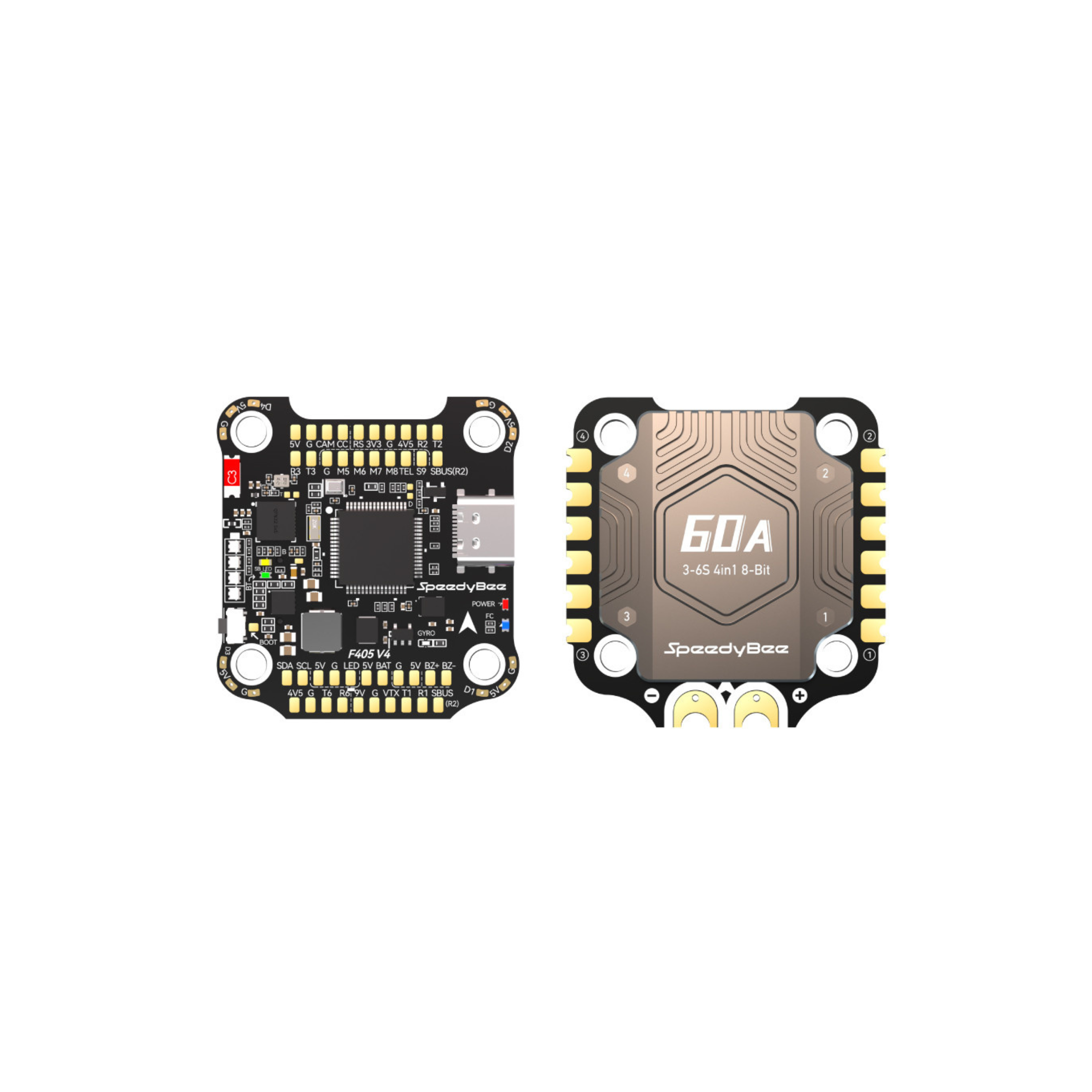

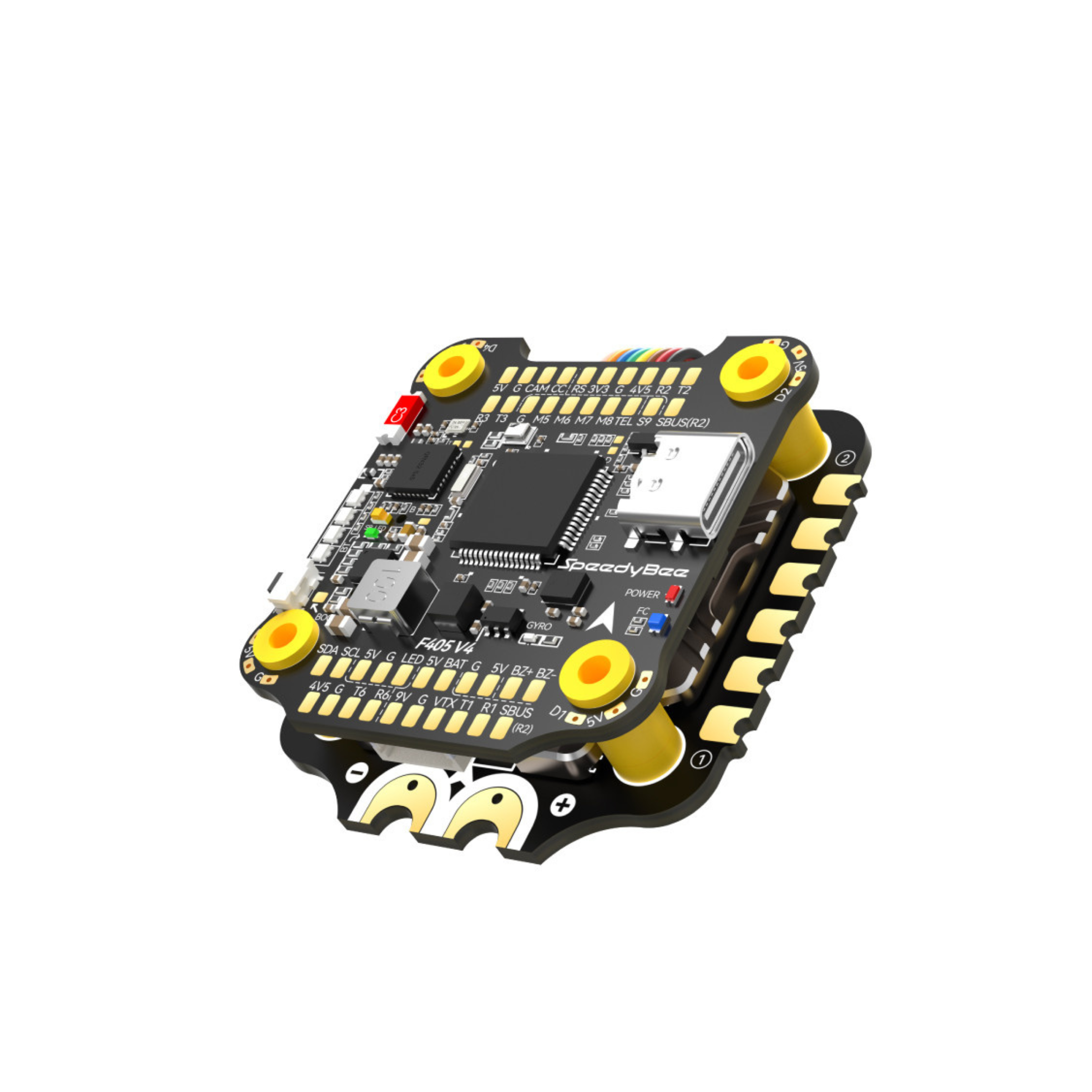

The SpeedyBee F405 V4 BLS 60A Stack is a high-performance flight control system designed for FPV racing drones, freestyle quadcopters, and long-range UAVs. Combining the SpeedyBee F405 V4 Flight Controller with a powerful 60A 4-in-1 BLHeli_S ESC, this stack delivers exceptional flight performance, reliable power management, and seamless integration for demanding drone applications.
Powered by the STM32F405 processor, the flight controller supports the latest versions of Betaflight, INAV, and ArduPilot, while the integrated Bluetooth functionality allows you to configure and tune your drone directly from the SpeedyBee App using your smartphone.
The included 60A 4-in-1 ESC provides smooth, efficient power delivery for high-performance brushless motors and supports 3S to 6S LiPo batteries, making it suitable for everything from freestyle builds to professional FPV racing drones.
Key Features
- SpeedyBee F405 V4 Flight Controller
- 60A 4-in-1 BLHeli_S ESC
- Powerful STM32F405 MCU
- Supports 3S–6S LiPo batteries
- Built-in Bluetooth for wireless configuration via the SpeedyBee App
- Compatible with Betaflight, INAV, and ArduPilot
- Multiple UART ports for GPS, receiver, VTX, telemetry, and peripherals
- Blackbox logging support
- High-current XT60 power lead included
- Complete installation hardware and wiring cables included
Technical Specifications

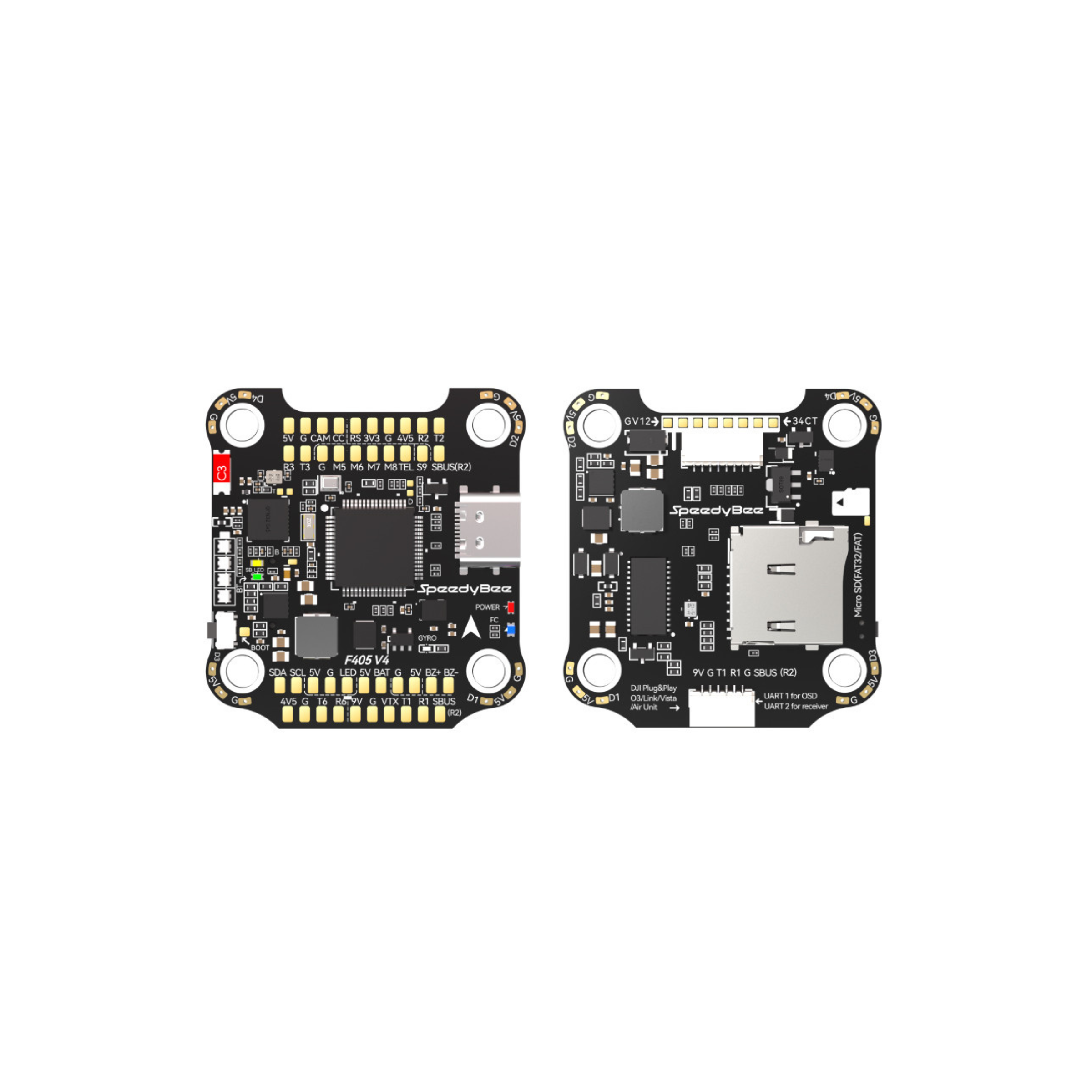

Flight Controller
- Model: SpeedyBee F405 V4
- MCU: STM32F405
- Gyroscope: High-performance IMU
- Firmware Support:
- Betaflight
- INAV
- ArduPilot
- Bluetooth: Built-in
- USB Interface: USB Type-C
- Blackbox Memory: Onboard
- Multiple UART Ports
- OSD: Integrated Betaflight OSD
- BEC Outputs: 5V & 9V

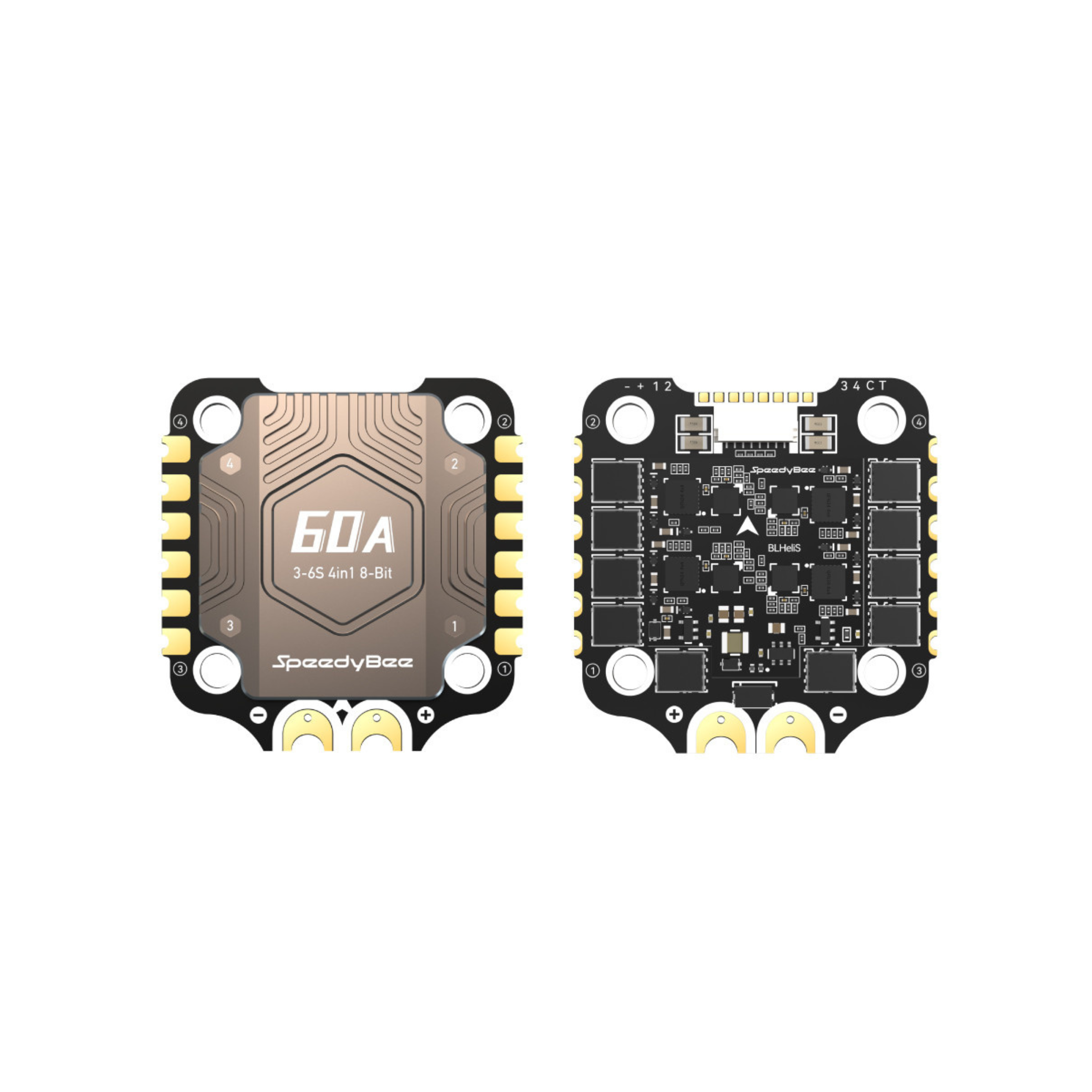

Electronic Speed Controller (ESC)
- Model: SpeedyBee 60A 4-in-1 ESC
- Continuous Current: 60A
- Burst Current: 70A (Peak)
- Firmware: BLHeli_S
- Input Voltage: 3S–6S LiPo
- Current Sensor: Built-in
- ESC Protocols:
- DShot300
- DShot600
- Multishot
- Oneshot

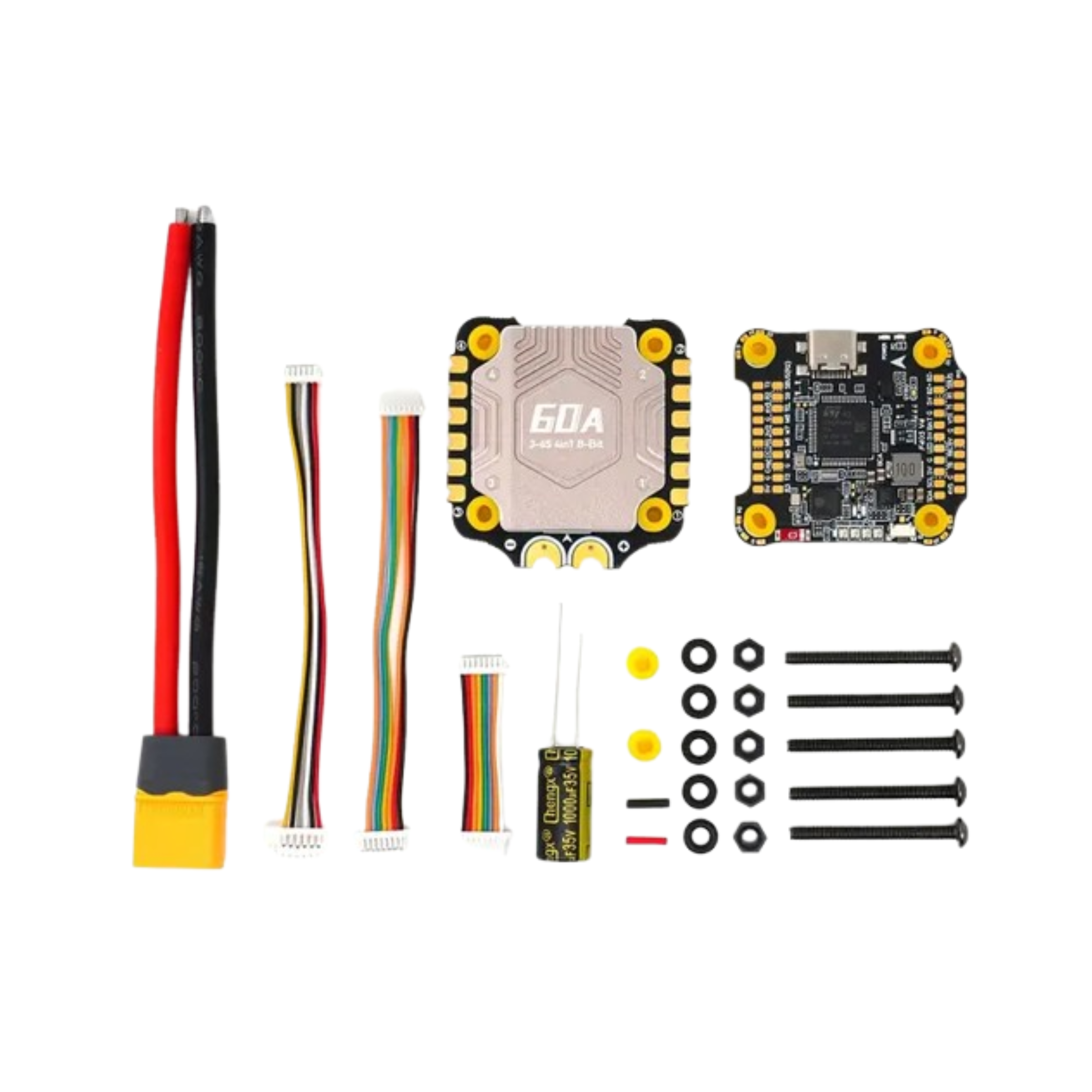

Package Includes
- 1x SpeedyBee F405 V4 Flight Controller
- 1x SpeedyBee 60A 4-in-1 BLHeli_S ESC
- 1x XT60 Power Cable
- FC to ESC Connection Cable
- Additional Wiring Harnesses
- Silicone Vibration Dampers
- Mounting Screws and Hardware
Applications
- FPV Racing Drones
- Freestyle Quadcopters
- Long-Range FPV Builds
- Cinematic FPV Drones
- DIY UAV Projects
- Drone Upgrades and Repairs
Advantages
- High-performance F405 processor
- Powerful 60A ESC for demanding motors
- Wireless tuning via Bluetooth and SpeedyBee App
- Supports 3S to 6S LiPo batteries
- Easy installation with included accessories
- Excellent compatibility with modern FPV firmware
- Reliable and stable flight performance
