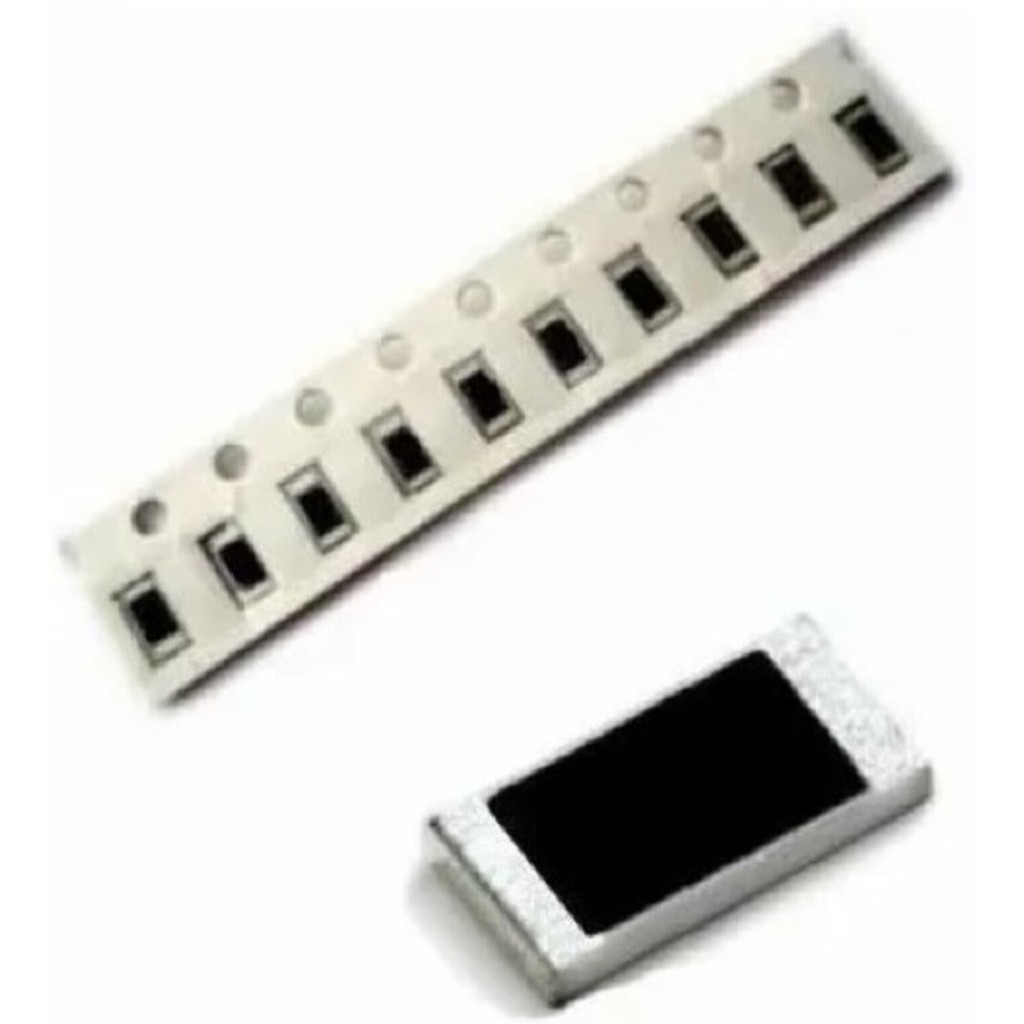

SMD Resistor 220KΩ 1/16W 5% 0402
Product Overview:
The SMD Resistor 220KΩ 1/16W 5% 0402 is a compact, surface-mount resistor designed for high-density PCB applications. With a resistance of 220KΩ, a power rating of 1/16W (0.0625W), and a ±5% tolerance, this resistor is ideal for use in voltage dividers, pull-up/pull-down networks, and general signal processing circuits.
Housed in an ultra-small 0402 (1.0mm × 0.5mm) package, this resistor is perfect for miniaturized designs where board space is a constraint. It is manufactured using thick-film technology, ensuring reliability, stability, and consistent electrical performance across various applications.
Key Specifications:
- Resistance Value: 220KΩ (220,000Ω)
- Power Rating: 1/16W (0.0625W)
- Tolerance: ±5%
- Package Size: 0402 (1.0mm × 0.5mm)
- Mounting Type: Surface Mount (SMD)
- Temperature Coefficient: ±200ppm/°C
- Operating Temperature Range: -55°C to +155°C
- Voltage Rating: 50V max
- Construction: Thick-film technology
- Moisture Sensitivity Level (MSL): 1 (Unlimited shelf life under ≤30°C/85% RH)
- Termination Style: Solderable terminations for reflow and wave soldering
Applications:
- Voltage Divider Networks: Helps in signal conditioning and sensor circuits.
- Pull-up/Pull-down Resistors: Used in microcontroller I/O lines and logic circuits.
- Power Supply Circuits: Useful in feedback loops and gain-setting applications.
- Consumer Electronics: Found in audio devices, set-top boxes, and handheld devices.
- Wearable & IoT Devices: Optimized for low-power and space-constrained designs.
- Automotive Electronics: Used in infotainment, lighting control, and dashboard systems.
Features & Benefits:
✔ Ultra-Compact 0402 Size: Enables high-density PCB layouts.
✔ Moderate Tolerance (±5%): Ideal for general-purpose electronic applications.
✔ Stable Thick-Film Construction: Ensures long-term reliability.
✔ Broad Operating Temperature Range (-55°C to +155°C): Suitable for industrial and automotive environments.
✔ Reflow & Wave Soldering Compatible: Suitable for automated production lines.
✔ Cost-Effective & Versatile: Widely used in consumer and industrial electronics.
