RC522 RFID

3.00

๐Ÿ“ฆ RC522 RFID Tag Details:

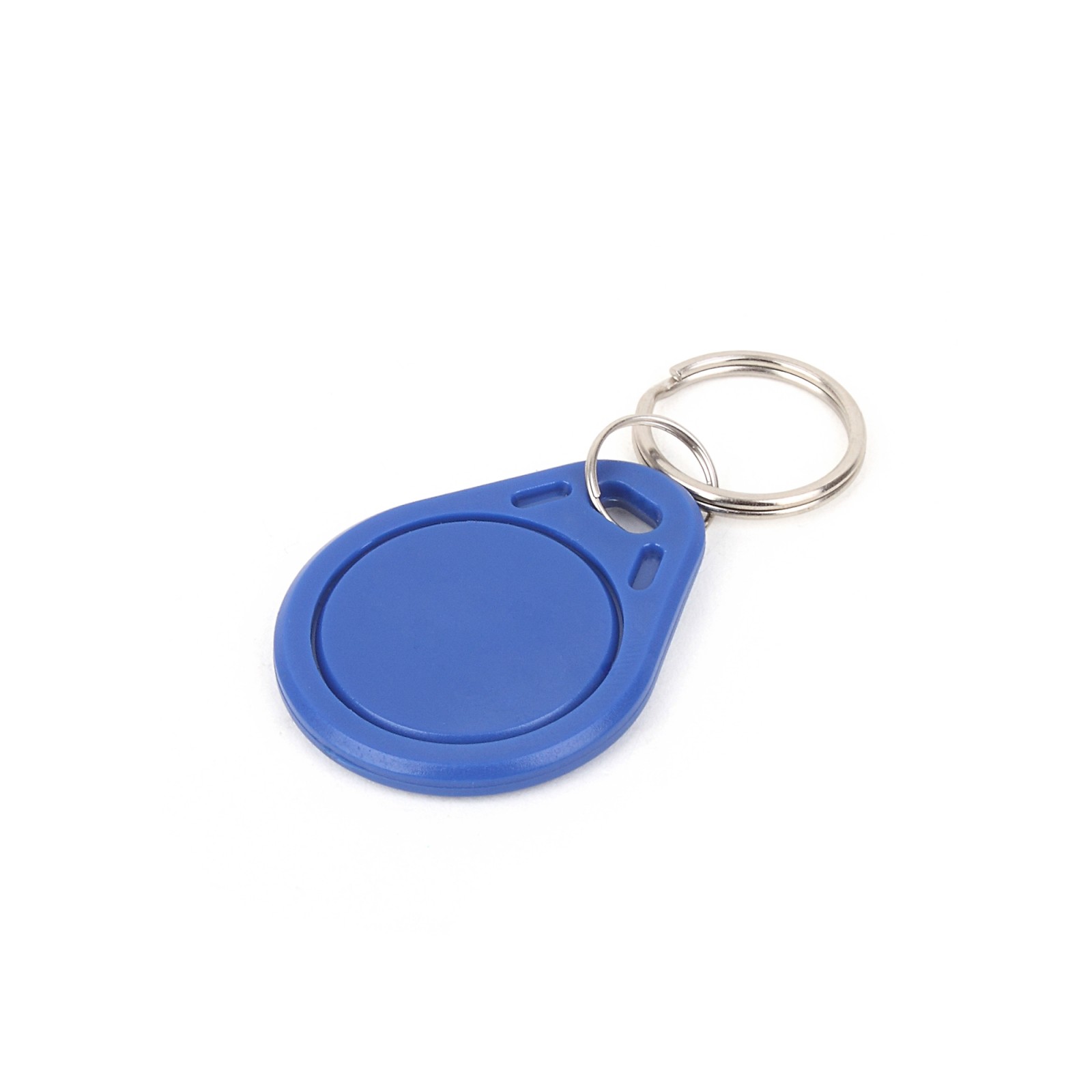

The RC522 itself is a reader module, but the term “RC522 RFID tag” usually refers to the 13.56 MHz passive RFID tags (cards, fobs, etc.) that are compatible with the RC522 module.

23 in stock

Category:

Description

๐Ÿ“ฆ RC522 RFID Tag Details:

The RC522 itself is a reader module, but the term “RC522 RFID tag” usually refers to the 13.56 MHz passive RFID tags (cards, fobs, etc.) that are compatible with the RC522 module.

Feature Details
Type Passive RFID tag
Frequency 13.56 MHz
Standard ISO/IEC 14443A
Memory 1 KB (MIFARE Classic 1K)
UID (Unique ID) 4 or 7 bytes (read-only)
Range ~2โ€“5 cm with RC522
Common Forms Card, key fob, sticker
Compatibility Works with Arduino, ESP32, Raspberry Pi, etc.

๐Ÿ”„ Communication With RC522 Module

  • The RC522 module uses SPI to communicate with microcontrollers.

  • Libraries like MFRC522.h (Arduino) can read/write data to the tag.


๐Ÿงช Example Use Case

  • Scan RFID card

  • Match UID

  • Unlock door / Log attendance / Trigger action
