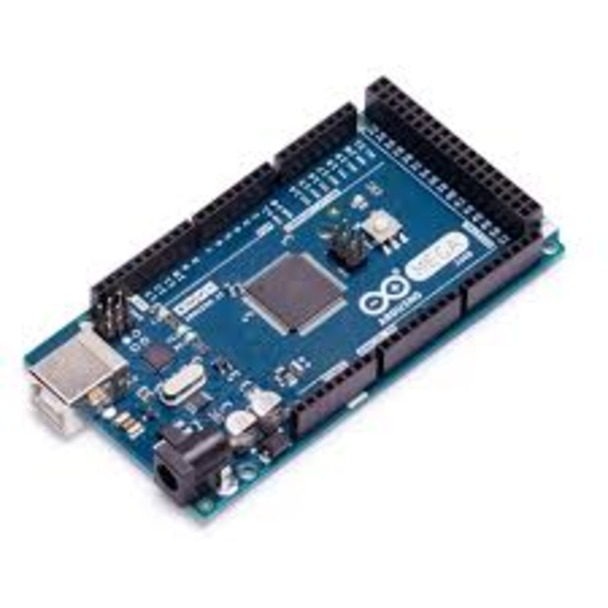

Arduino Mega 2560

Arduino Mega 2560

The Arduino Mega 2560 is a microcontroller board based on the ATmega2560 chip, designed for projects that require more input/output pins, memory, and processing power than the standard Arduino Uno. It’s ideal for more complex projects such as 3D printers, robotics, and advanced automation systems.

Category:

Description

Arduino Mega 2560

The Arduino Mega 2560 is a microcontroller board based on the ATmega2560 chip, designed for projects that require more input/output pins, memory, and processing power than the standard Arduino Uno. It’s ideal for more complex projects such as 3D printers, robotics, and advanced automation systems.


Key Features:

  • Microcontroller: ATmega2560 with 256 KB flash memory, 8 KB SRAM, and 4 KB EEPROM.
  • I/O Pins: 54 digital input/output pins, 15 of which can be used as PWM outputs. It also includes 16 analog inputs for connecting sensors, and 4 UARTs (hardware serial ports) for serial communication.
  • Clock Speed: 16 MHz clock for fast processing and smooth operation.
  • USB Interface: A built-in USB interface for direct connection to computers for programming.
  • Power Supply: Supports input voltage of 7-12V, and can be powered via USB, DC jack, or VIN pin.
  • Programming Interface: Easily programmable via the Arduino IDE, which is open-source and beginner-friendly.
  • Multiple Communication Options: Includes UART, SPI, and I2C communication for integrating with a wide range of external devices like sensors, motors, displays, and more.

Specifications:

  • Microcontroller: ATmega2560
  • Operating Voltage: 5V
  • Input Voltage: 7-12V (via DC jack or VIN pin)
  • Digital I/O Pins: 54 (of which 15 can provide PWM output)
  • Analog Input Pins: 16
  • PWM Pins: 15
  • Flash Memory: 256 KB (8 KB used by bootloader)
  • SRAM: 8 KB
  • EEPROM: 4 KB
  • Clock Speed: 16 MHz
  • USB Port: Type-B for programming and serial communication
  • Dimensions: 101.52mm x 53.3mm

Applications:

  • Robotics: Suitable for robotics projects that require multiple sensors and motors, including 3D printers, robotic arms, or drones.
  • 3D Printers: A popular choice for DIY 3D printing projects as it provides ample I/O pins for controlling stepper motors, heated beds, and other components.
  • Home Automation: Ideal for home automation systems with various sensors, actuators, and communication modules.
  • Control Systems: Works well for large control systems that involve multiple devices and need a lot of I/O processing.
  • Learning and Prototyping: A great choice for engineers, students, and hobbyists who need a platform with a large number of input/output pins and robust performance for prototyping complex projects.
  • Data Logging and Measurement Systems: With its ample memory and processing power, it can handle large datasets from sensors, including temperature, humidity, and motion sensors.

Advantages:

  • More I/O Pins: Great for projects requiring a lot of input/output, like controlling a large number of sensors or actuators.
  • Large Memory: Ideal for handling large sketches and more complex programs compared to smaller Arduino boards.
  • Versatile Communication: Offers a range of communication options (I2C, SPI, UART) for connecting to sensors, actuators, or other microcontrollers.
  • Open-Source Community Support: As with all Arduino products, it benefits from a massive open-source community with plenty of tutorials, forums, and example projects.

The Arduino Mega 2560 is a versatile and powerful board that offers a wide array of I/O options, memory, and processing power. It’s perfect for larger, more complex projects and provides flexibility for hobbyists, educators, and professionals alike.
