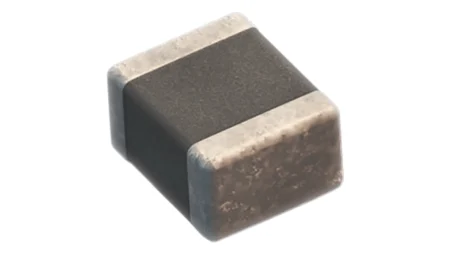

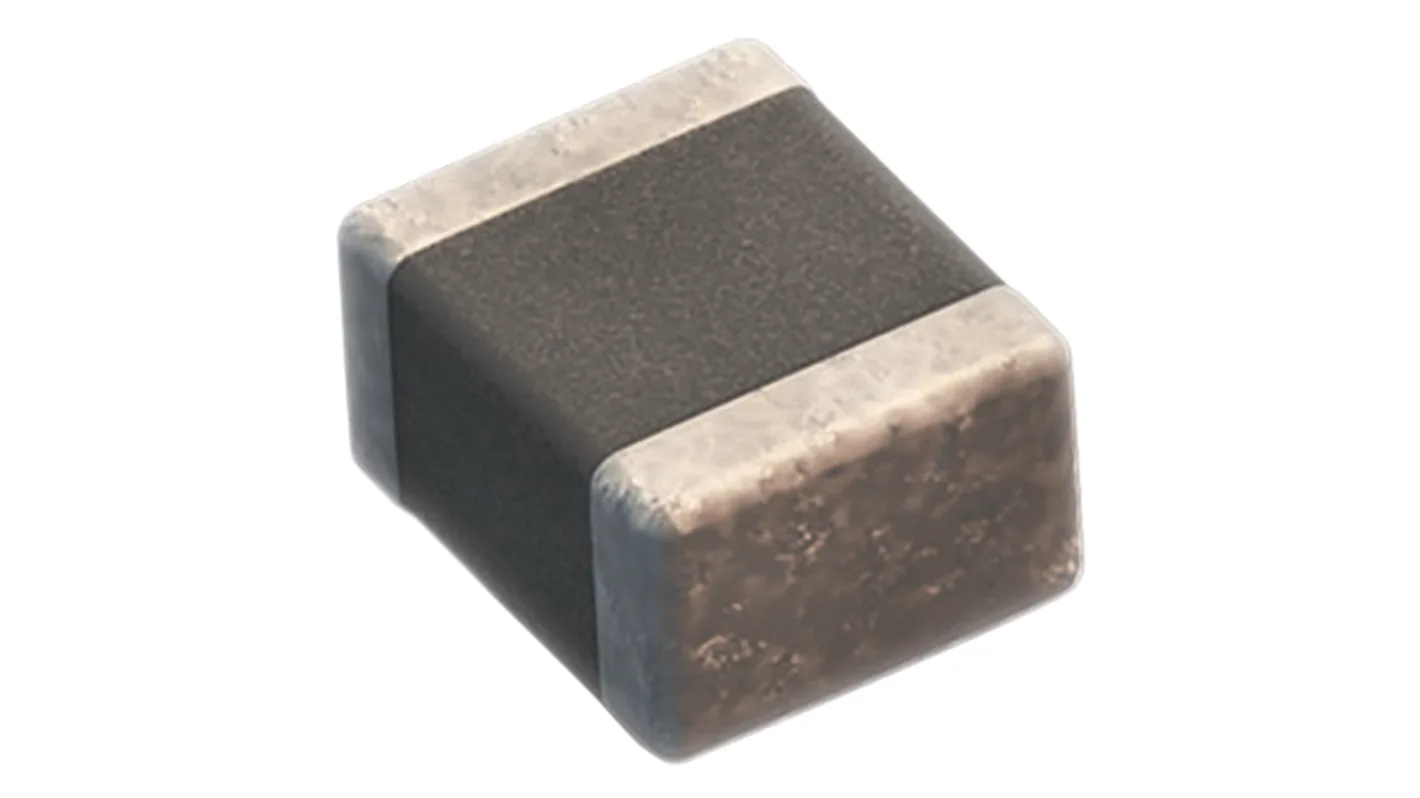

C1608X5R0J226MT – 22µF, 6.3V, X5R, 0603 SMD Multilayer Ceramic Capacitor
Overview:
The C1608X5R0J226MT is a 22µF Surface Mount Multilayer Ceramic Capacitor (MLCC) in an 0603 package, designed for applications requiring compact, high-capacitance solutions. It features an X5R dielectric, which provides good temperature stability and makes it suitable for power supply bypassing, decoupling, and filtering in electronic circuits.
Key Features:
✔ Capacitance: 22µF
✔ Voltage Rating: 6.3V
✔ Dielectric Type: X5R (Moderate Temperature Stability)
✔ Tolerance: ±20%
✔ Package Size: 0603 (1.6mm × 0.8mm)
✔ Mounting Type: Surface Mount (SMD)
✔ Low Equivalent Series Resistance (ESR)
✔ RoHS Compliant & Halogen-Free
Technical Specifications:
| Parameter | Value |
|---|---|
| Capacitance | 22µF |
| Voltage Rating | 6.3V |
| Tolerance | ±20% |
| Dielectric Type | X5R |
| Temperature Range | -55°C to +85°C |
| Package Size | 0603 (1.6mm × 0.8mm) |
| Mounting Type | Surface Mount (SMD) |
| Equivalent Series Resistance (ESR) | Low |
| Insulation Resistance | High |
Applications:
✅ Power Supply Filtering & Decoupling – Reduces voltage fluctuations
✅ Microcontrollers & Embedded Systems – Noise suppression in signal lines
✅ Consumer Electronics – Smartphones, tablets, and laptops
✅ Automotive & Industrial Electronics – Reliable in compact circuits
✅ Battery-Powered Devices – Used in voltage stabilization
Recommended Alternatives:
🔹 Murata GRM188R60J226MEA0 – Similar 22µF, 6.3V, X5R capacitor
🔹 TDK C1608X5R0J226MT000N – Direct equivalent
🔹 Samsung CL10A226MP8NNNC – Cost-effective alternative
Package Includes:
✔ 1 x C1608X5R0J226MT SMD Ceramic Capacitor (22µF, 6.3V, X5R, 0603, ±20%)
