Description

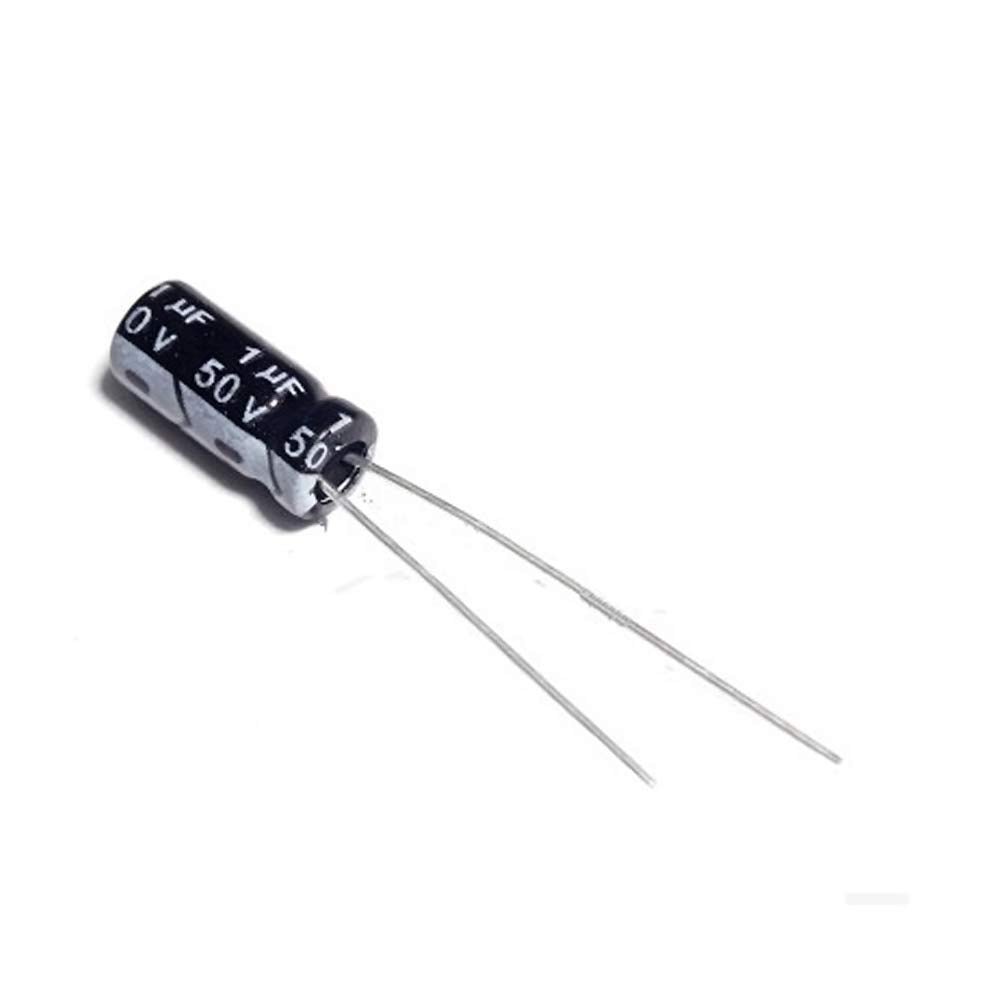

1µF 50V Electrolytic Capacitor (Radial Leaded)
🧾 Product Overview:
This is a 1 microfarad (µF), 50-volt aluminum electrolytic capacitor, designed for general-purpose electronic applications. It features a radial lead configuration and is commonly used in filtering, decoupling, bypassing, and timing circuits. With a compact form factor and a moderate voltage rating, it fits well into low- to medium-voltage analog and digital applications.
📐 Key Specifications:
| Parameter | Value |
|---|---|
| Capacitance | 1 µF |
| Rated Voltage | 50V DC |
| Capacitor Type | Electrolytic (Aluminum) |
| Lead Style | Radial |
| Tolerance | ±20% (Typical) |
| Operating Temperature | -40°C to +105°C |
| Mounting Type | Through Hole |
| ESR (Equivalent Series Resistance) | Medium – suited for general applications |
🧰 Applications:
✔ Power Supply Filtering – Smooths voltage fluctuations in regulated or unregulated power supplies
✔ Decoupling/BYPASSING – Removes noise from power lines in microcontroller or analog circuits
✔ Timing Circuits – Used with resistors in basic timer or oscillator circuits
✔ Audio Circuits – AC coupling or signal path blocking to prevent DC offset
✔ Consumer Electronics – TVs, radios, set-top boxes, toys, and more
⭐ Features & Benefits:
-
✅ Reliable performance in general electronic circuits
-
✅ Compact size ideal for PCBs and space-constrained designs
-
✅ Wide operating temperature range
-
✅ Affordable and widely available
🔁 Alternatives / Related Parts:
-
1µF 25V – For lower-voltage applications
-
1µF Ceramic Capacitor (X7R) – For tighter tolerance and lower ESR
-
1µF 50V Tantalum Capacitor – For better stability and reliability
