Description

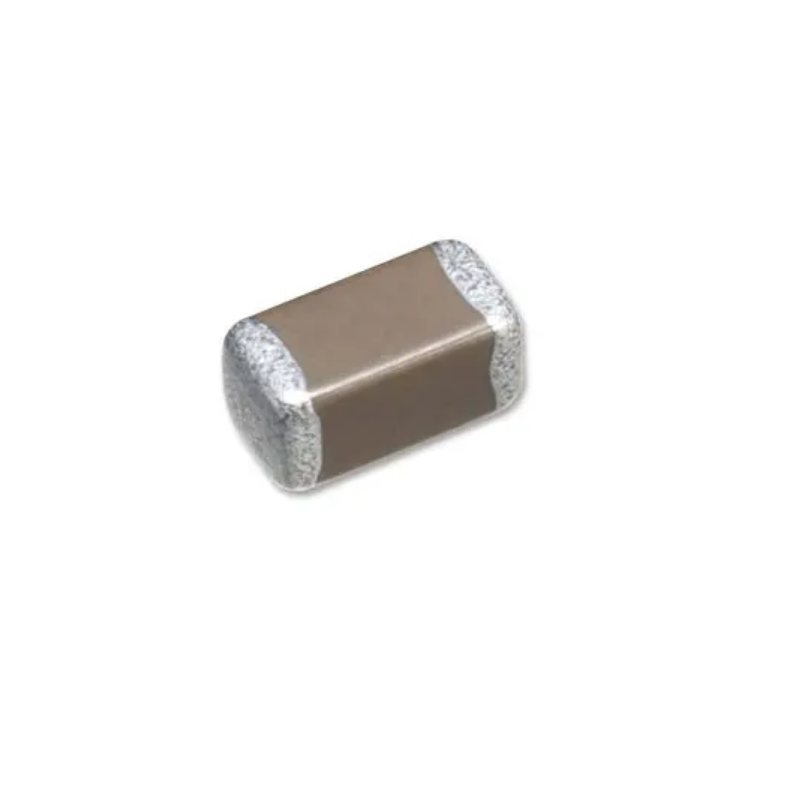

Multilayer Ceramic Capacitor – 0.033µF, 16V, X7R, 0402
Overview:
This is a 0.033µF (33nF) Surface Mount Multilayer Ceramic Capacitor (SMD) (MLCC) with a 16V voltage rating. It features an X7R dielectric, ensuring stable capacitance over a wide temperature range. The compact 0402 package makes it suitable for space-constrained PCB designs.
Key Features:
✔ Capacitance: 0.033µF (33nF)
✔ Voltage Rating: 16V
✔ Dielectric Type: X7R (Stable, Temperature-Resistant)
✔ Tolerance: ±10%
✔ Temperature Coefficient: ±15% (X7R)
✔ Package Size: 0402 (1.0mm × 0.5mm)
✔ Mounting Type: Surface Mount (SMD)
✔ Low Equivalent Series Resistance (ESR)
✔ RoHS Compliant & Lead-Free
Technical Specifications:
| Parameter | Value |
|---|---|
| Capacitance | 0.033µF (33nF) |
| Voltage Rating | 16V |
| Tolerance | ±10% |
| Temperature Coefficient | ±15% (X7R) |
| Package Size | 0402 (1.0mm × 0.5mm) |
| Operating Temperature | -55°C to +125°C |
| Mounting Type | Surface Mount (SMD) |
| Dielectric Type | X7R |
| Insulation Resistance | >10GΩ |
Applications:
✅ Power Supply Filtering – Helps in noise suppression
✅ Signal Coupling & Decoupling – Stable performance in analog and digital circuits
✅ Microcontrollers & Embedded Systems – Used in bypassing and noise reduction
✅ Consumer Electronics – Smartphones, tablets, laptops, and IoT devices
✅ Automotive & Industrial Electronics – Reliable in harsh environments
Recommended Alternatives:
🔹 Murata GRM155R71C333KA01D – High-reliability MLCC
🔹 TDK C1005X7R1C333K – AEC-Q200 automotive-grade option
🔹 Samsung CL05B333KO5NNNC – Cost-effective alternative
Package Includes:
✔ 1 x 0.033µF (33nF) SMD Ceramic Capacitor (0402, 16V, X7R, ±10%)
