Description

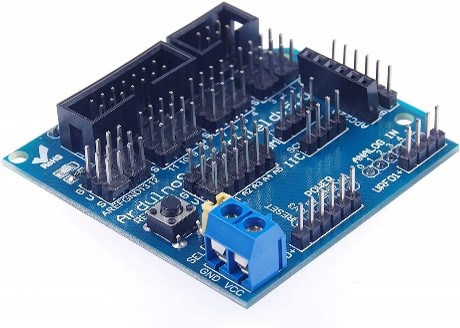

The V5.0 Sensor Shield for Arduino Uno R3 is a versatile expansion board designed to simplify the process of connecting and interfacing various sensors and modules to an Arduino Uno R3 microcontroller. This shield makes it easier to prototype and develop projects that require sensor inputs, outputs, and connections to other components, allowing you to easily experiment and design new systems with fewer wires and less complexity.
Key Features:
- Plug and Play Design: Simplifies the process of connecting sensors and modules to an Arduino Uno R3.
- Wide Compatibility: Works with standard Arduino Uno R3 boards and similar models.
- Arduino Uno R3 Shield Size: Designed to perfectly fit Arduino Uno R3, aligning with the header pins on the Arduino.
- Breadboard-Compatible Interface: Shields the Arduino from damage while providing easy access to pins for prototyping.
- Multiple Sensor and Module Slots: Ideal for a wide range of sensors, including temperature, humidity, light, PIR motion, soil moisture, and more.
- Onboard power and reset buttons for easy handling of the Arduino system.
Specifications:
- Compatible with Arduino Uno R3: Specifically designed to fit Arduino Uno R3, with standard pin headers.
- V5.0 Design: Updated layout and design to work with the latest versions of Arduino shields.
- Sensor Slots: Connect multiple sensors including:
- Temperature and humidity sensors (e.g., DHT11, DHT22)
- Infrared (IR) sensors
- Ultrasonic sensors (HC-SR04)
- Soil moisture sensors
- Light sensors (e.g., LDR)
- Interfaces for Modules: Connections for:
- Servo motors
- LCD displays
- LEDs and other output devices
- Breadboard-friendly Design: Easy to connect external circuits using breadboards or jumper wires for further prototyping.
Applications:
- IoT Projects: Easily add sensors to Arduino projects for monitoring temperature, humidity, soil moisture, and light levels.
- Robotics Projects: Connect motor drivers, servos, and sensors to control movements based on real-time data.
- Smart Home Systems: Set up temperature monitoring and control, humidity control, and automatic lighting control systems.
- Educational and Experimentation: Ideal for beginners and enthusiasts to prototype and learn about Arduino and embedded systems without soldering.
Package Includes:
- 1 x V5.0 Sensor Shield for Arduino Uno R3
- 1 x User Manual (if available)
This shield greatly simplifies the prototyping process, saving time and reducing complexity when working with Arduino Uno projects. It offers an organized and efficient way to interface sensors and modules, making your Arduino Uno R3 project development more enjoyable and productive!
