SN04-N inductive Proximity Sensor

62.50

SN04-N Inductive Proximity Sensor – Product Listing
Product Overview: The SN04-N is an inductive proximity sensor designed to detect metal objects without physical contact. It operates by generating an electromagnetic field and sensing the disturbances caused by metallic objects entering this field. This sensor is widely used in automation systems, machinery, and industrial applications for non-contact detection.

Description

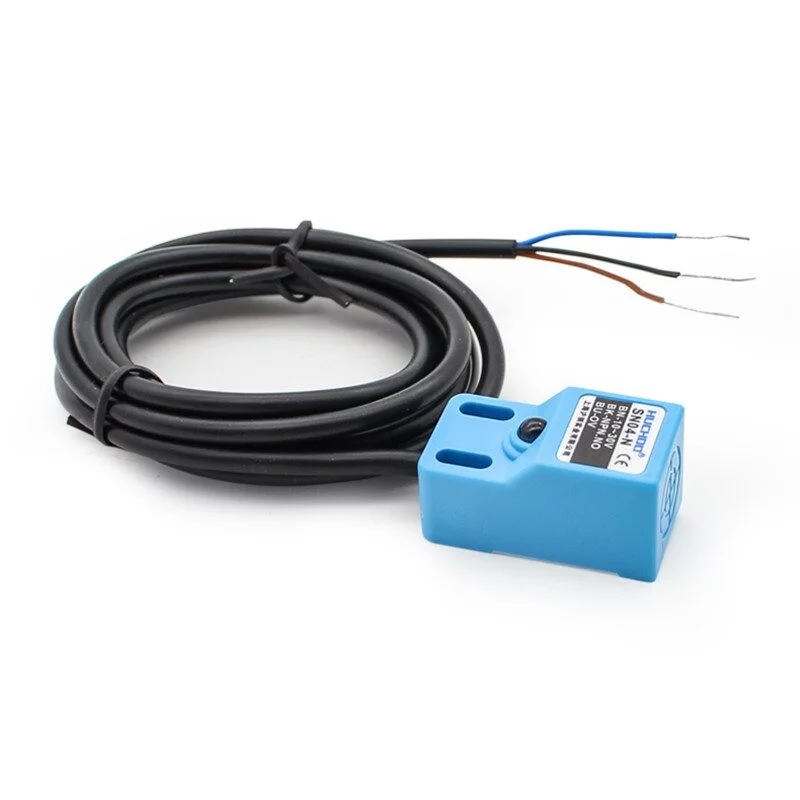

SN04-N Inductive Proximity Sensor
Product Overview: The SN04-N is an inductive proximity sensor designed to detect metal objects without physical contact. It operates by generating an electromagnetic field and sensing the disturbances caused by metallic objects entering this field. This sensor is widely used in automation systems, machinery, and industrial applications for non-contact detection.

Key Features:

Sensing Distance: 4mm (adjustable)
Output Type: NPN, Normally Open (NO)
Operating Voltage: 10V to 30V DC
Current Consumption: ≤ 10mA
Output Current: ≤ 300mA
Response Frequency: 500Hz
Indicator: Built-in LED for easy status monitoring
Material: Durable plastic housing
Operating Temperature: -25°C to +70°C
Protection: IP67 rated, making it dust-tight and water-resistant

Applications:

Industrial automation systems
Conveyor belt systems
Robotics
Metal detection in manufacturing processes
Safety systems
Installation and Usage: The SN04-N can be easily mounted using screws or brackets. It should be installed with the sensing face aligned with the target metal object. The sensor is connected via a 3-wire system: Vcc (Brown), Ground (Blue), and Signal Output (Black). Once installed, the built-in LED will indicate the detection status.

Package Includes:

1 x SN04-N Inductive Proximity Sensor

Dimensions:

Sensor Size: 34 x 17 x 17mm
Cable Length: 1 meter
Why Choose SN04-N? The SN04-N sensor is known for its reliability, precision, and robustness in various industrial environments. Its compact design, coupled with high sensitivity and quick response time, makes it an ideal choice for automation tasks that require accurate metal detection.
