Description

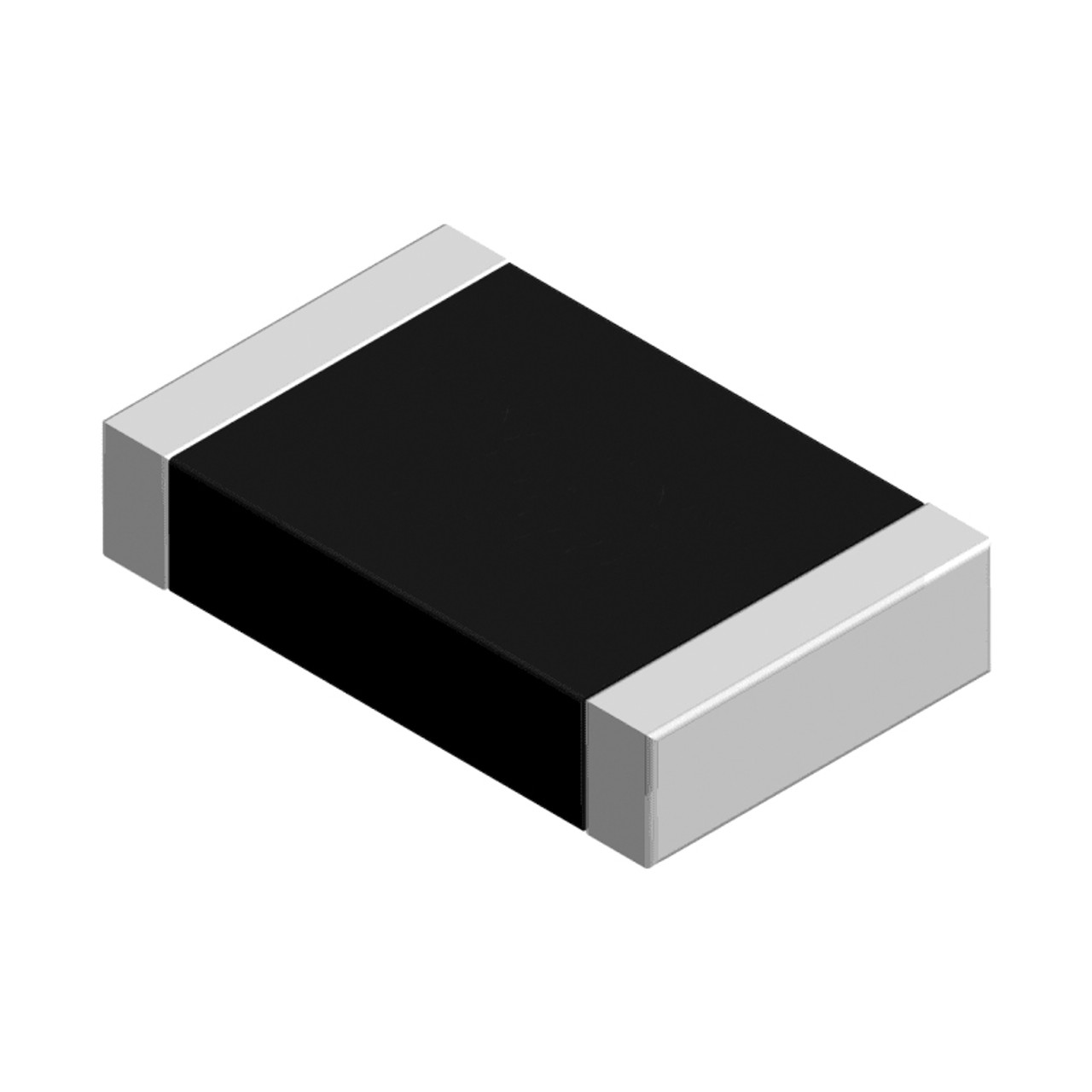

SMD Resistor 27Ω 1/4W 5% 1206 – Surface Mount Resistor
Overview:
This is a 27Ω (27 ohms) Surface Mount (SMD) Resistor with a 1206 package size, 1/4W (0.25W) power rating, and 5% tolerance. It is commonly used in electronic circuits for current limiting, voltage division, and signal conditioning.
Key Features:
✔ Resistance: 27Ω
✔ Power Rating: 1/4W (0.25W)
✔ Tolerance: ±5%
✔ Package Size: 1206 (3.2mm × 1.6mm)
✔ Temperature Coefficient: ±200 ppm/°C (typical)
✔ Mounting Type: Surface Mount (SMD)
✔ RoHS Compliant & Halogen-Free
Technical Specifications:
| Parameter | Value |
|---|---|
| Resistance Value | 27Ω (27 ohms) |
| Tolerance | ±5% |
| Power Rating | 1/4W (0.25W) |
| Package Size | 1206 (3.2mm × 1.6mm) |
| Temperature Coefficient | ±200 ppm/°C (typical) |
| Operating Temperature Range | -55°C to +155°C |
| Mounting Type | SMD (Surface Mount) |
| Material | Thick Film |
Applications:
✅ Current Limiting Resistor – Used in LED circuits
✅ Voltage Divider Circuits – For signal conditioning
✅ General-Purpose Electronics – Power and signal applications
✅ Consumer Electronics – Compact circuit designs
✅ Power Management Circuits – Used in embedded systems
Recommended Alternatives:
🔹 Yageo RC1206JR-0727RL – 27Ω, 5%, 1/4W, 1206 resistor
🔹 Vishay CRCW120627R0JNTD – High-quality alternative
🔹 Samsung RC3216J270CS – Cost-effective option
Package Includes:
✔ 1 x SMD 27Ω Resistor (1/4W, 5%, 1206)
